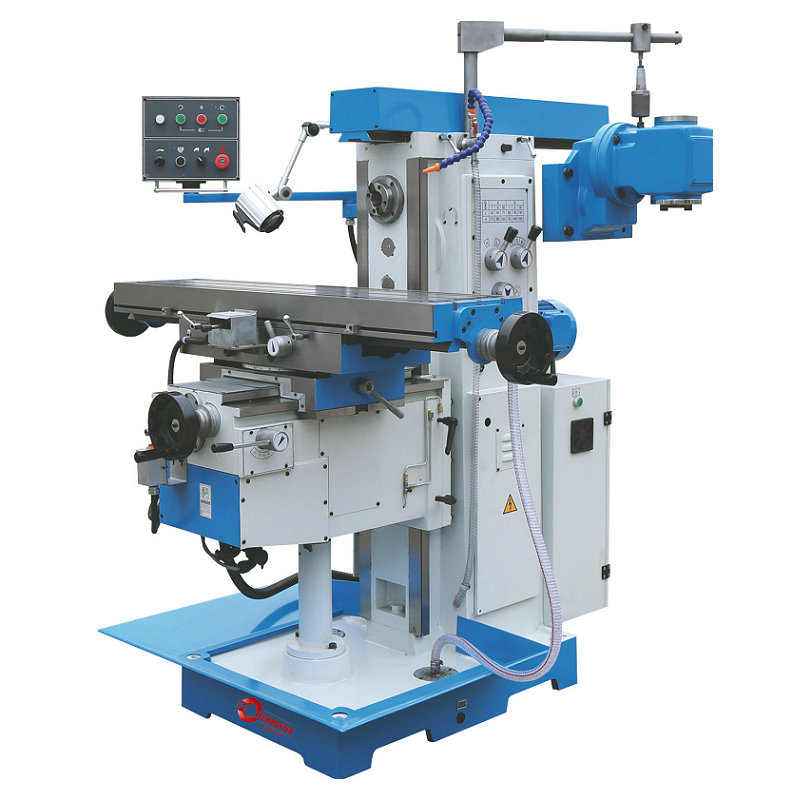

Specification | Unit | XL6030 | XL6030A | XL6030B | XL6030C |
Table size | mm | 1270X300 | 1370X300 | 1270*300 | 1370*300 |
Table Travel (X/Y/Z) | mm | 720/300/400 | 820/300/400 | 900/380/400 | 1000/380/400 |
Spindle taper | --- | 7:24 ISO40 | |||
Rapid speed of table (X/Y/Z) | mm/min | 1335/1335/1000 | |||
Table feed (X/Y/Z) | mm/min | XY:30-830 Z:23-625 | |||
T-slots（NO./Width/Pitch) | mm | 3/14/80 | |||
Spindle speed range | r/min | 12 steps 35-1500 | |||
Distance between spindle nose and table surface | mm | 75-475 | |||
Distance between spindle axis and column guideway | mm | 155 | |||
Main motor | kw | 3 | |||
Torque of X/Y/Z axis AC servo motor | N.m | 10 | |||
Overall size | mm | 1720X1680X1730 | 1820X1680X1730 | 1720X1680X1730 | 1820X1680X1730 |
Net weight | kg | 1500 | 1550 | 1550 | 1600 |
Optional Rotary Table ±45°can be ordered
Model | Table size | Max table travel - X/Y/Z | Max rotary angle of table | Distance between spindle center line and table surface |
XL6130 | 1270X300 | 720/300/400 | ±45° | 35-435 |
XL6130A | 1370X300 | 820/300/400 | ||
XL6130B | 1270X300 | 900/380/400 | ||
XL6130C | 1370X300 | 1000/380/400 |
Optional Accessories
NO. | Name |
1 | 3-axis DRO |
2 | CE Schneider electric |
3 | Aluminum hangarm |
4 | Worktable cover |
5 | LED work lamp |
6 | Rotary table ±45° |
7 | Automatic lubrication |
8 | Support arm for vertical head |
Standard Accessories
Item | Name | Specification | Qty |
1 | Vertical milling head | 1 | |
2 | Allen Wrench | 5 、6、10 | 1 |
3 | Fixed Wrench | 17*19、22*24、32*36 | 1 |
4 | Middle sleeve | 7:24; ISO40-MS4 | 1 |
5 | Handle | 1 | |
6 | Milling Arbor | 7:24 Iso40 Φ27 | 1 Set |
7 | Milling arbor support | 1 | |
8 | Draw Bar | M16 × 480 | 1 |
9 | Nut、Washer | M16 | 2 |
10 | Operation Manual | 1 | |
11 | Coolant system with electric motor | 1 | |
12 | Auto feed and fast feed on XYZ | 1 | |
13 | Chip tray | 1 |
