UNIVERSAL SWIVEL HEAD MILLING MACHINE
You are here: Home » Products » MILLING » KNEE-TYPE MILLING MACHINE » UNIVERSAL SWIVEL HEAD MILLING MACHINE
Share to:

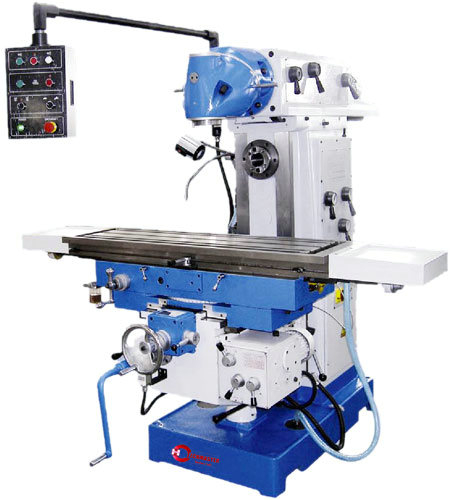

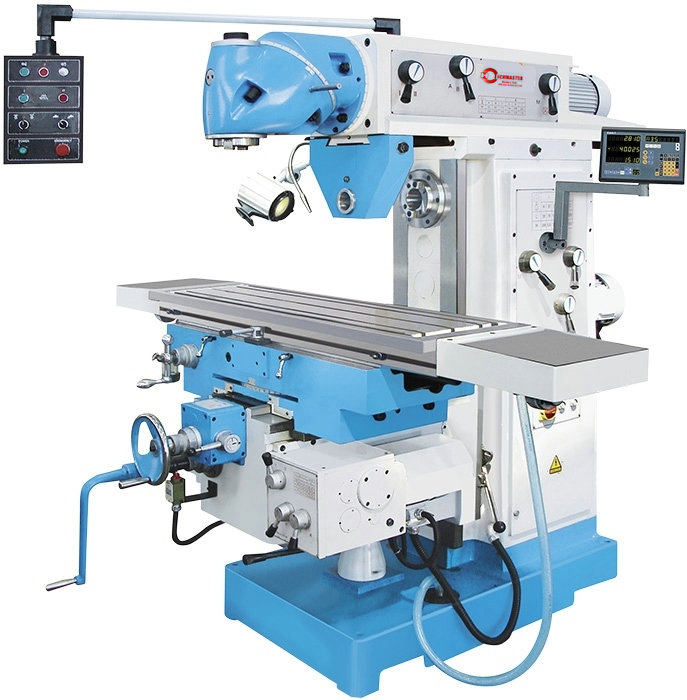

UNIVERSAL SWIVEL HEAD MILLING MACHINE

Quantity:
  • X6436A / X6436A-1( BIG WORKTABLE )

Specifications


1.swivel head type milling machine
2.table swivel angle +/-35 degrees
3.head swivel 360 degrees
4.automatic feed on 3 axes

Feature:

Superior price/performance ratio, for single part production and training purposes

with Huron cutter head system
large setup table 1320 x 360 mm
X axis travel 1000 mm
vertical and horizontal spindles feature their own powerful drives
milling table swivels in X axis
extensive standard equipment
machine frame features heavy ribbing and torsional rigidity
wide. rigid, hardened guideways ensure maximum stability and constant accuracy
large, wide, supported table rotates ± 35°
the vertical cutter head swivels (manually) on 2 levels allowing virtually any angle setting
large spindle taper ST 50 ensures high rigidity even when using very large tools
all gears and shafts are hardened and ground
all electric components are made by leading manufacturers
vertical and horizontal spindles have their own drives, resulting in low-loss performance and shorter rejig times
automatic feeds and rapid feeds on all 3 axes
all hand-wheels (including for X axis) are placed at the front within the operator's reach
the control panel is mounted on a swivel boom for optimum positioning
central lubrication for low-maintenance operation





1.The machine is with universal milling head,it can swivel 360 degrees.

2.The table can swivel left and right side 35 degrees.

3.The machine can automatic feed on three axes controlled through one gear box.

4.The ram is movable forward and backward.

5.The table can be extended to 1600mm, and X travl is increased to 1300mm simultaneously.
The model named X6436A-1(WOKTABLE IS 1650X360 )

6.The machine is equipped with operation panel which is convenient for the operator.



 specification unit X6436A
Table size mm 1320x360
No. of T slot    no 3
T slot Size ( Width ) mm 14
Centre distance of T slot    mm 95
Max. load of Table kg 300
swivel angle of table degree ±35º
machining range
table Longitudinal travel(manual/auto) mm 1000
table Cross travel (manual/auto) mm 290/280
table Vertical travel(manual/auto) mm 400
MAIN SPINDLE :
Spindle taper   ISO50
spindle speed /step -- Vertical rpm 58-1800/
                           --Horizontal rpm 60-1750/
swivel angle of swivel head degree 360º
Distance from vertical spindle axis to column surface mm 220-720
Distance from vertical spindle nose to table surface mm 170-570
Distance from horizontal spindle axis to table surface mm 0-400
Distance from horizontal spindle axis to arm bottom mm 175
 arm travel mm 500
FEEDS :
Longitudinal/cross feed mm / min 22-420(X), 22-393(Y)
Vertical feed /step mm/min 10-168(Z)
Longitudinal/cross rapid speed mm / min 1290(X),1205(Y)
Rapid Traverse vertical mm/min 513(Z)
POWER :
main motor kw 4
X/Y/Z) feed motor kw 1.1
coolant motor kw 90W
overall dimension cm 207x202.5x202
Machine weight kg 2480




 BIG WORKTABLE MODEL  unit X6436A-1
Table size mm 1650x360
T slot no./width/distance   no 3/14/95
Max. load of Table kg 300
swivel angle of table degree ±35º
table Longitudinal travel(manual/auto) mm 1300
table Cross travel (manual/auto) mm 300
table Vertical travel(manual/auto) mm 400
Spindle taper   ISO50
spindle speed /step -- Vertical rpm 58-1800/
                           --Horizontal rpm 60-1750/
swivel angle of swivel head degree 360º
Distance from vertical spindle axis to column surface mm 220-720
Distance from vertical spindle nose to table surface mm 170-570
Distance from horizontal spindle axis to table surface mm 0-400
Distance from horizontal spindle axis to ram bottom mm 175
ram travel mm 500
Longitudinal/cross feed mm / min 22-420(X), 22-393(Y)
Vertical feed /step mm/min 10-168(Z)
Longitudinal/cross rapid speed mm / min 1290(X),1205(Y)
Rapid Traverse vertical mm/min 513(Z)
main motor kw 4
(X/Y/Z) feed motor kw 1.1
coolant motor kw 90W
overall dimension cm 255x202.5x202
Machine weight kg 2580
