X6432

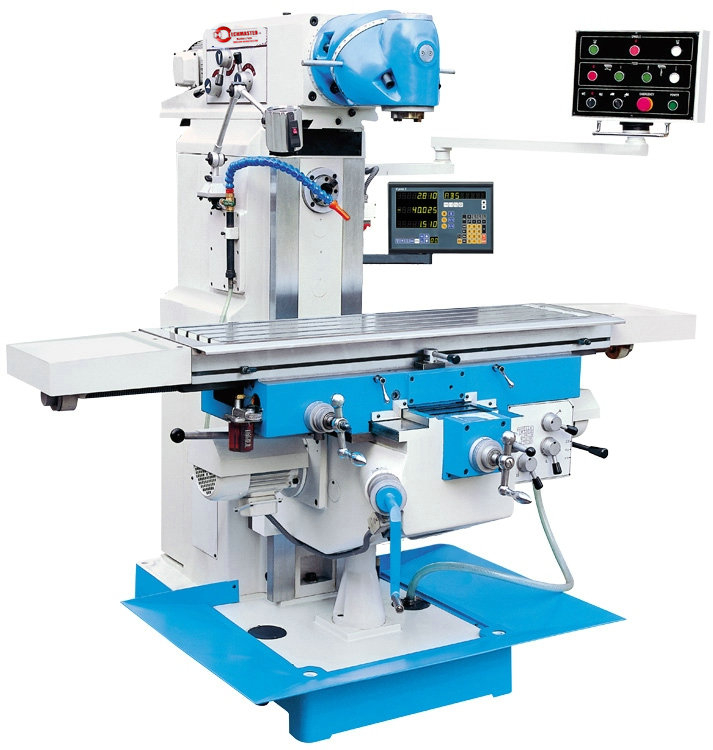

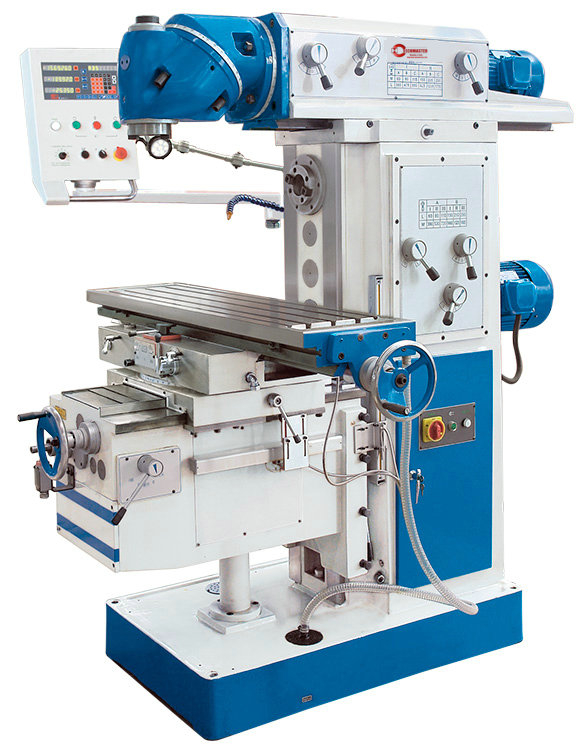

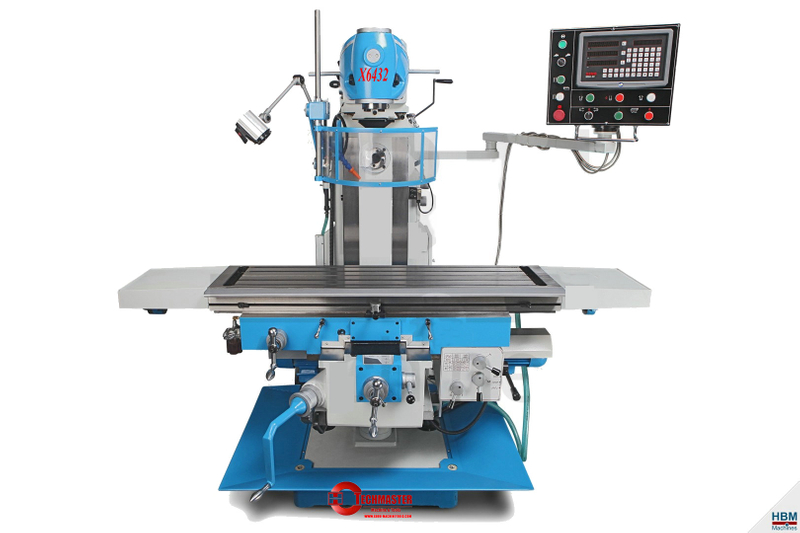

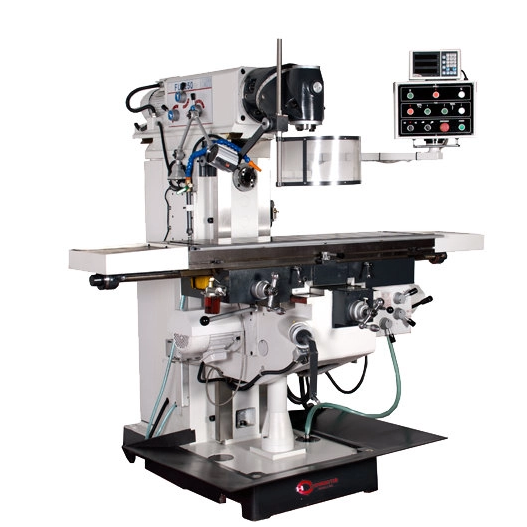

Rigid Knee-and-Column Milling Machine with servo drive feed and universal swivel head
extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance
Large work area of 1320 x 320 mm and up to 500 kg table load capacity
Quiet, precision-made headstock gears with hardened and ground gears
Universal cutter head swivels on 2 levels - quick change-over from horizontal to vertical machining
By combining both swivel levels, almost any spatial angle can be set
Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes
Telescoping covers on the Y axis protect the feed spindle
Control panel swings out to either side and features an integrated position indicator
5.5 kW main drive guarantees high torque
Coolant system and chip tray are included
| Specifications | Units | X6432 |
| Table size | mm | 1320×320 |
| Table travel | mm | 1000×300（manual） |
| Number/Width/Distance of T-slot | mm | 5-14-63 |
| Spindle taper | | ISO40 |
| Distance from spindle nose to table surface | mm | 220-660 |
| Distance between spindle axis and column surface | mm | 100-600 |
| Distance from horizontal spindle axis to table surface | mm | 0-440 |
| Max. vertical milling dia. | mm | 25 |
| Spindle speed range | rpm | 45-1660（V） 40-1300（,H） |
| Swivel angle of swivel head | | 360° |
| Spindle motor power | kW | 3（V/H） |
| Overall dimension | mm | 2020×1710×1994 |
| Machine weight | kg | 2100 |
1. This milling machine with universal milling head which can swivel 360 degress
2. table surface is hardened and ground surface
3.X travel is 1000mm, table size 1320x320mm
