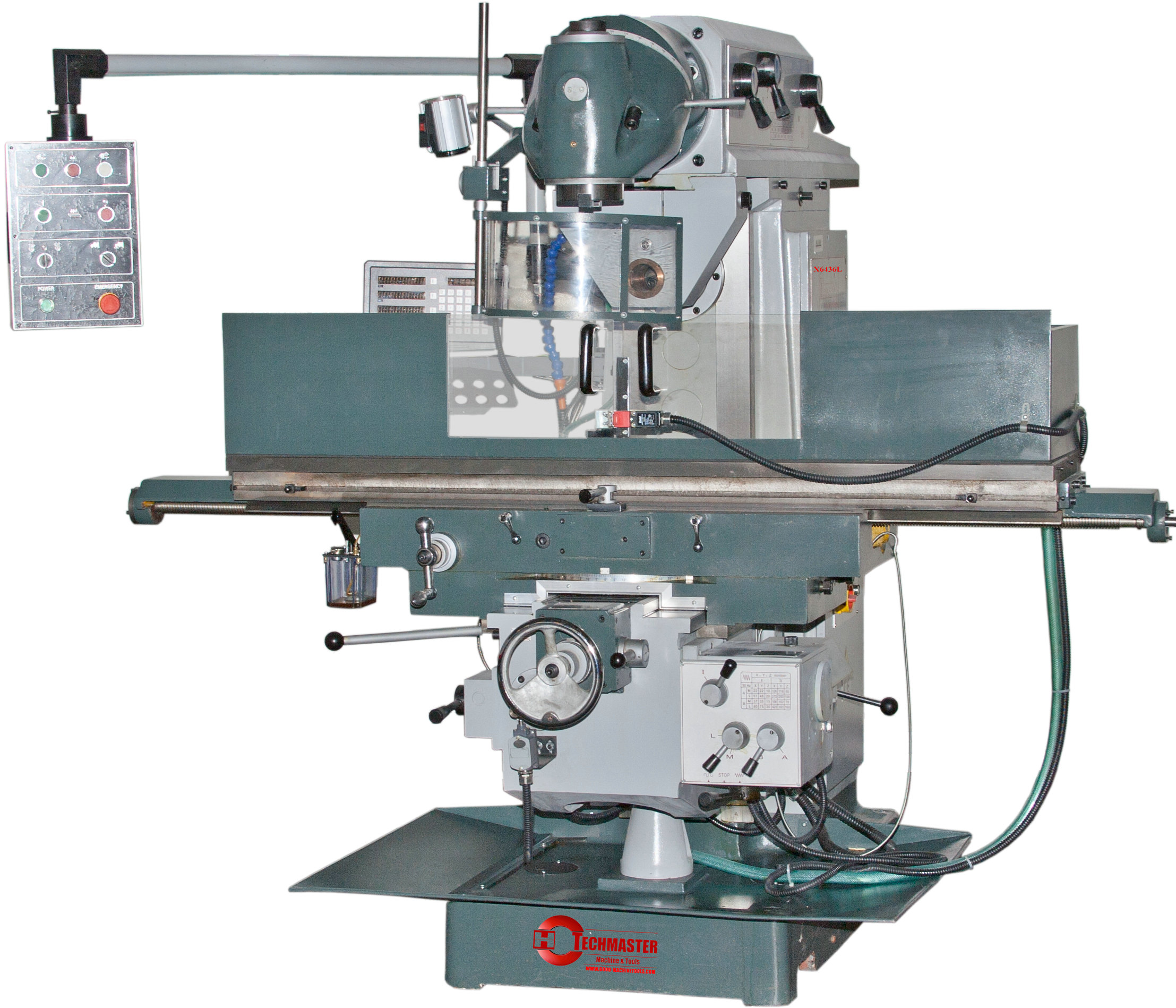

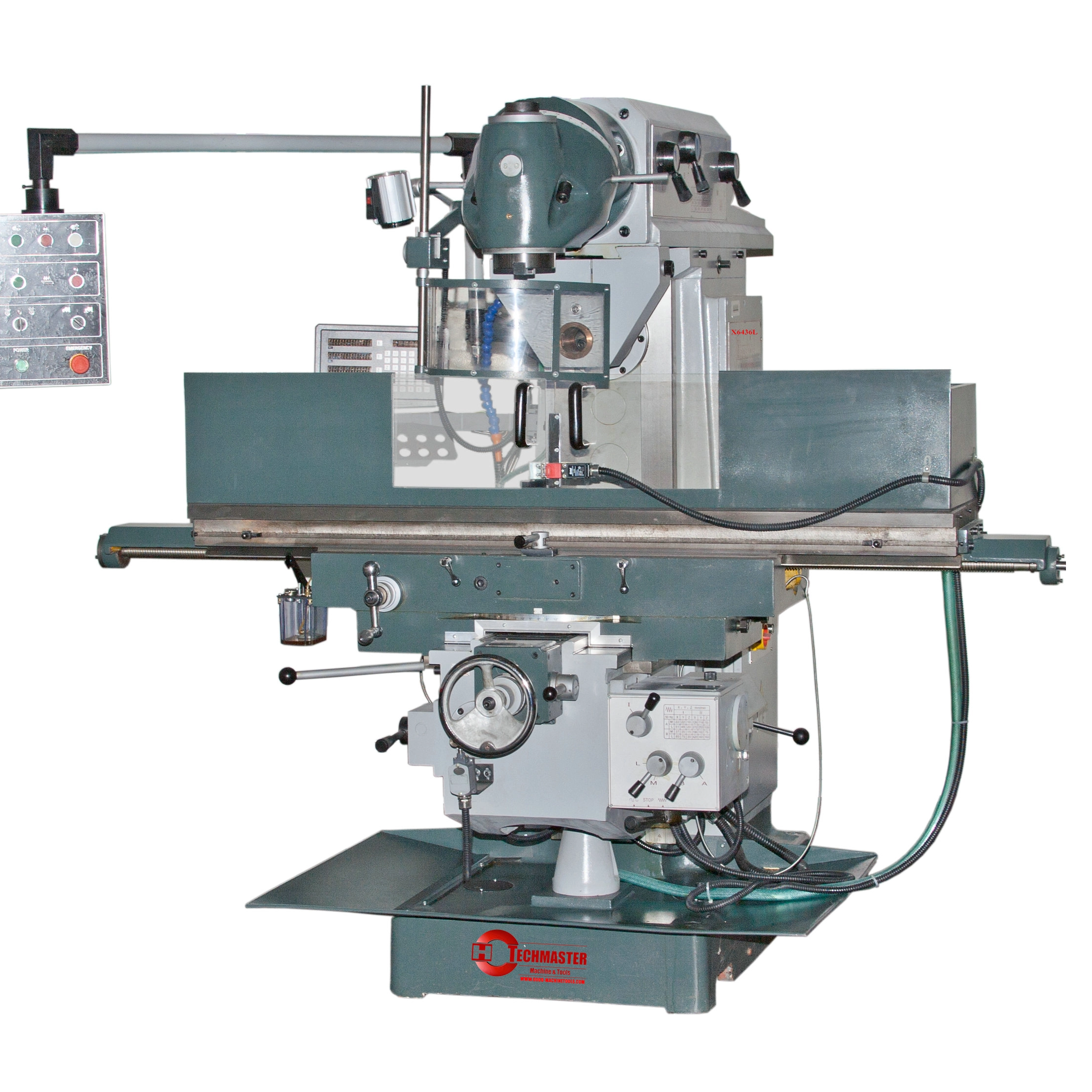

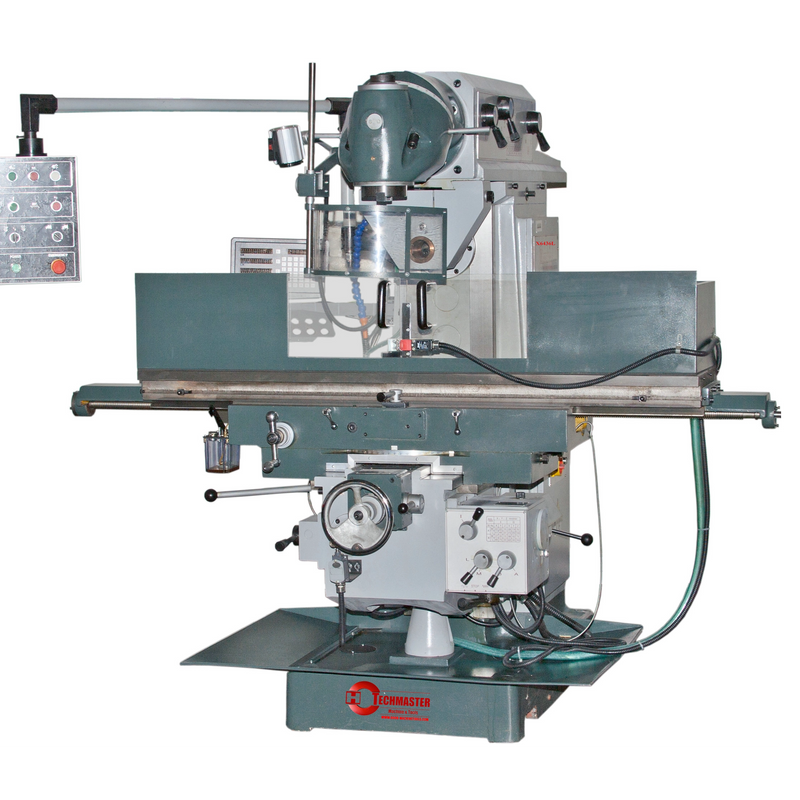

X6436A-1 (X6436L)
1.The machine is with universal milling head,it can swivel 360 degrees.
2.The table can swivel left and right side 35 degrees.
3.The machine can automatic feed on three axes controlled through one gear box.
4.The ram is movable forward and backward.
5.The table can be extended to 1600mm, and X travl is increased to 1300mm simultaneously.
6.The machine is equipped with operation panel which is convenient for the operator.
unit | X6436A-1(X6436L) | |
Table size | mm | 1650x360 |
T slot no./width/distance | no | 3/14/95 |
swivel angle of table | degree | ±35º |
table Longitudinal travel(manual/auto) | mm | 1300 |
table Cross travel (manual/auto) | mm | 320 |
table Vertical travel(manual/auto) | mm | 420 |
Spindle taper | ISO50 | |
spindle speed /step -- Vertical | rpm | 58-1800/12 |
--Horizontal | rpm | 60-1750/12 |
swivel angle of swivel head | degree | 360º |
Distance from vertical spindle nose to table surface | mm | 170-590 |
Distance from horizontal spindle axis to table surface | mm | 0-420 |
ram travel | mm | 500 |
Longitudinal/cross feed | mm / min | 25-800 |
Vertical feed /step | mm/min | 8-267 |
Longitudinal/cross rapid speed | mm / min | 1200 |
Rapid Traverse vertical | mm/min | 400 |
horizontal spindle motor | kw | 5.5 |
main motor for milling head | kw | 4kw |
SERVO motor | kw | 1.8 |
overall dimension | cm | 255x216.1x210.2 |
Machine weight | kg | 2850 |
1.The machine is with universal milling head,it can swivel 360 degrees.
2.The table can swivel left and right side 35 degrees.
3.The machine can automatic feed on three axes controlled through one gear box.
4.The ram is movable forward and backward.
5.The table can be extended to 1600mm, and X travl is increased to 1300mm simultaneously.
6.The machine is equipped with operation panel which is convenient for the operator.
unit | X6436A-1(X6436L) | |
Table size | mm | 1650x360 |
T slot no./width/distance | no | 3/14/95 |
swivel angle of table | degree | ±35º |
table Longitudinal travel(manual/auto) | mm | 1300 |
table Cross travel (manual/auto) | mm | 320 |
table Vertical travel(manual/auto) | mm | 420 |
Spindle taper | ISO50 | |
spindle speed /step -- Vertical | rpm | 58-1800/12 |
--Horizontal | rpm | 60-1750/12 |
swivel angle of swivel head | degree | 360º |
Distance from vertical spindle nose to table surface | mm | 170-590 |
Distance from horizontal spindle axis to table surface | mm | 0-420 |
ram travel | mm | 500 |
Longitudinal/cross feed | mm / min | 25-800 |
Vertical feed /step | mm/min | 8-267 |
Longitudinal/cross rapid speed | mm / min | 1200 |
Rapid Traverse vertical | mm/min | 400 |
horizontal spindle motor | kw | 5.5 |
main motor for milling head | kw | 4kw |
SERVO motor | kw | 1.8 |
overall dimension | cm | 255x216.1x210.2 |
Machine weight | kg | 2850 |
