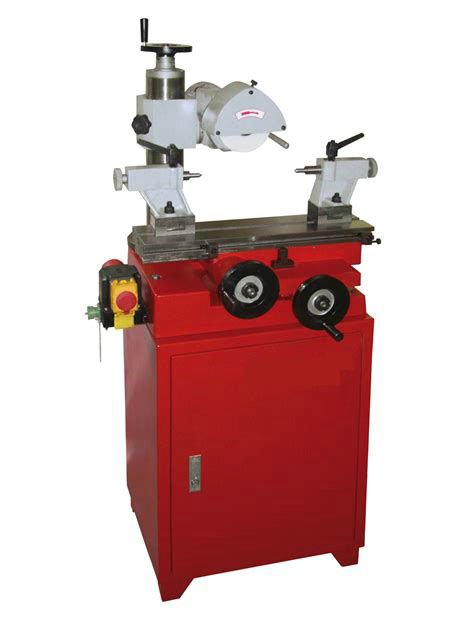

UNIVERSAL TOOL GRINDING MACHINE M6015

UNIVERSAL TOOL GRINDING MACHINE M6015



The machine could grind many kinds of tools with different attachment as follows:

1.      Twist Drill

2.      Side Cutter

3.      Serrated Mill

4.      End Mill

5.      T grooved Mill

6.      Ampoule indended Cutter

7.      Tap

8.      Hobbing Cutter

9.      Side set Mill

10. Cylindrical Mill

11. Lathe Tool

12. Pinion Cutter

13. Reamer

14. Full Back Cutter

15. Single-angular Mill

16. Surface Grinding

Standard Accessory:

• Right and left tailstock
• Spring stop
• Variable table stops
• Standard center 60°
• Half center 60°
• Precision center 60°
• 1 cupwheel and 1 diamond top wheel (125x35x32mm)
• 1 grinding wheel and 1 poppet (125x15x32mm)
• 3-jaw turning chuck with flange
• Twist drill grinding feature
• MK 3 turning tool holder
• Cutter mandrels 16 mm, 27 mm, 32 mm
• Stand

Specifications                                                                                               M6015
Max. grinding diameter	200 mm
Max. grinding length	320 mm
Table travel right and left	250 mm
Table travel forward and return	200 mm
Head height travel	120 mm
Pivoting grinding head	+-50degree
Motor rating	180 W, 400 V; 50 Hz
Grinding wheel speed	2800 min-1
Dimensions (L x W x H)	820 x 650 x 780 mm
Weight	150 kg
