Universal Dividing Head F11160A F11200A

Quantity:
  • Universal Dividing Head F11160A F11200A

This series is one of the most important attachment for milling machine. with the help of this dividing head the workpiece held between centers, or on a chuck can be rotate to any angle as desired and the periphery of a workpiece can be divided into any divisions of equal parts. By means of all kinds of cutters, the dividing head can also help milling machine to perform the milling operation for flute spur gear, spiral gear, spiral flute, Archimedean cam, helical flute and etc.

SPECIFICATION

F11 100A

F11 125A

F11 160A

F11200A


Center Height mm

100

125

160

200


Swivel angle of spindle from it’s horizontal position (upward)

≤95°


Horizontal position(downward)

≤5°


Rotating angle of spindle for one complete revolution of dividing handle

9°(540 GRAD;1′each


Min. reading of vernier

10″


Worm gear ratio

1:40


Taper of spindle bore

MT3

MT4


Width of locating key mm

14

18


Dia. Of short taper of spindle nose for mounting flange  mm

41.275

53.975


Hole numbers on index  plate

1st plate

24,25,28,30,34,37,38,39,41,42,43

2nd plate

46,47,49,51,53,54,57,58,59,62,66

Change gear

Module

1.5

2

teeth numbers

25,30,35,40,50,55,60,70,80,90,100

Individual indexing error of the spindle for one complete revolution of dividing handle

±45″


Cumulate error at any 1/4 periphery of spindle

±1′


Max.bearing (kg)

100

130

130

130


Net weight(kg)

67

101.5

113

130


Gross weight(kg)

79

111.5

123

140


Packing size(mm)

616x465x265

635x530x530

710x535x342

710x535x342


F11(1)

F11 SERIES INSTALLATION SKETCH AND DIMENSIONS

Model

A

B

C

D

E

F

G

H

L

M

N

O

P

F11100A

162

14

102

87

186

95

116

100

93

54.7

30

100

100

F11125A

209

18

116

98

224

117

120

125

103

68.5

34.5

100

125

F11160A

209

18

116

98

259

152

120

160

103

68.5

34.5

100

160

F11120A

209

18

116

98

299

192

120

200

103

68.5

34.5

100

200

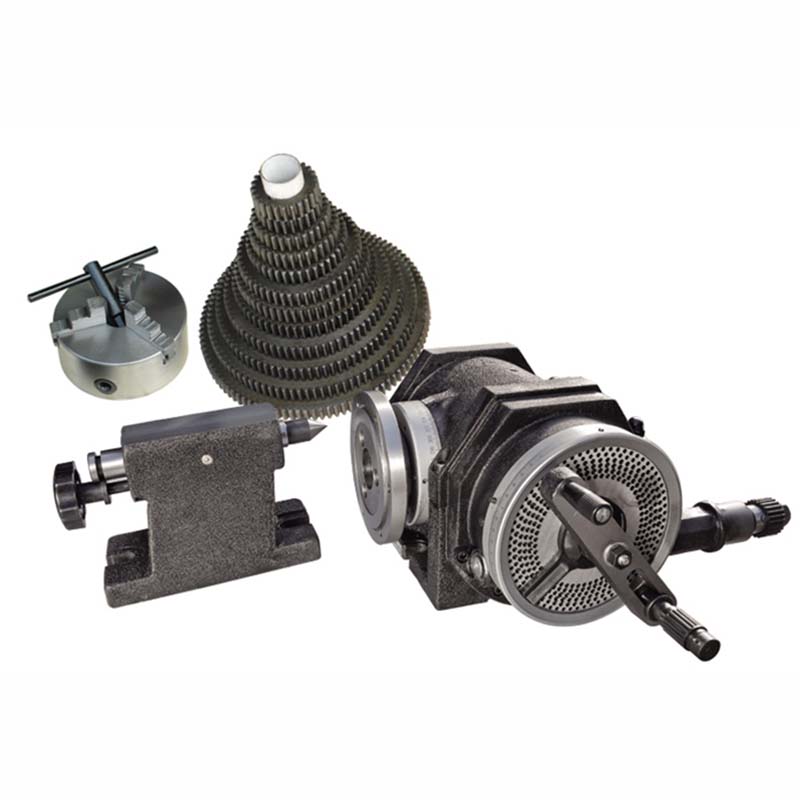

 ACCESSORIES:
1.Tailstock  2.Change gear bracket  3.12pcs change gear  4.jack  5.Center  6.Dividing plate  7.Flange  8.3-jaw chuck
9.Round table(optional)
