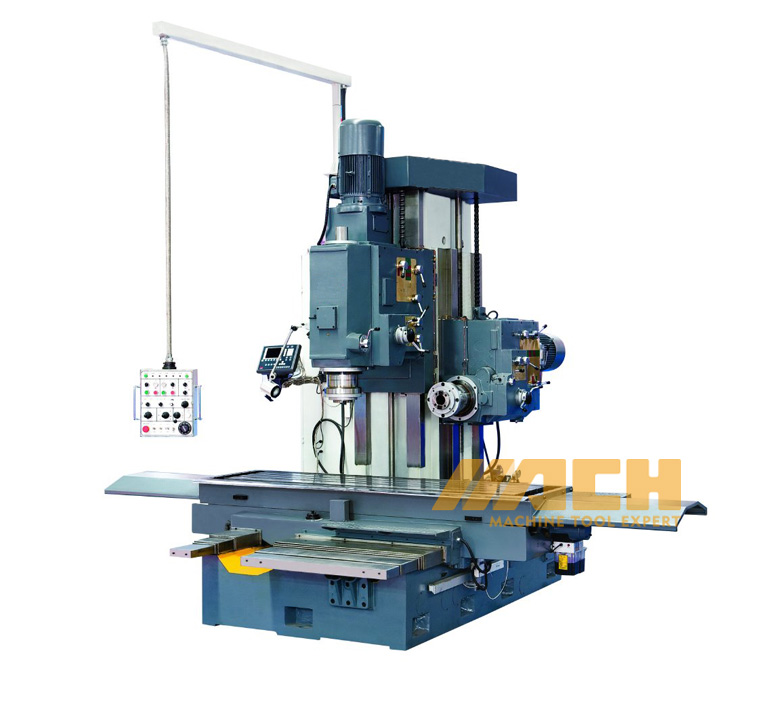

Universal Vertical/Horizontal Boring & Milling Machine Model:TX706

Quantity:




Inquire Add to Basket

Model:
Universal Vertical/Horizontal Boring & Milling Machine Model:TX706

Product Description

MAIN FEATURES

1. Table Size: 2400x650mm

2. Table Travel (X,Y): 1630x550mm

3. Max. Load of Worktable: 3000kgs

SPECIFICATION	UNIT	TX706
TABLE SIZE	MM	2400×650
LONGITUDINAL/CROSS TRAVEL OF TABLE	MM	1630×600
VERTICAL TRAVEL OF HORIZONTAL SPINDLE	MM	800
VERTICAL TRAVEL OF VERTICAL SPINDLE	MM	800
MIN. DISTANCE FROM HOR. SPINDLE AXIS TO TABLE	MM	20
NO./WIDTH/DISTANCE OF T-SLOT	MM	5-22-100
SPINDLE TAPER		ISO50(V/H)
SPINDLE QUILL TRAVEL	MM	190(V/H)
SPINDLE SPEED RANGE	RPM	23-1000(V/H)
SPINDLE SPEED STEPS		12(V/H)
FEED SPEED RANGE(X,Y,Z)	MM/MIN	20-2200
RAPID FEED SPEED	MM/MIN	3000
QUILL AUTO-FEED SPEED STEPS		6(V/H)
QUILL AUTO-FEED SPEED RANGE	MM/R	0.05-0.4(V/H)
SPINDLE MOTOR POWER	KW	11(V/H)
FEED MOTOR POWER	KW	4.4
MAX LOAD OF WORK TABLE	KG	3000
OVERALL DIMENSIONS	MM	3000×4000×3800
NET WEIGHT	KG	17000

STANDARD ACCESSORIES

Quartz Light,
Cooling Unit,
Emergency Stop,
CE Electrical Components,
Hunging Control Panel,
5HP milling haed with steps changable speed

OPTIONAL ACCESSORIES

3-axis SINO Digital Readout
Pmeumatic Pull-rod
NEW type Spingle Protection
Flat Vise 200mm
Rotary Working TableTS320A
Universal Dividing Head F11125A
Milling Head M100
Extrended-Length Working Table1600*360mm（Travel unchanged）
