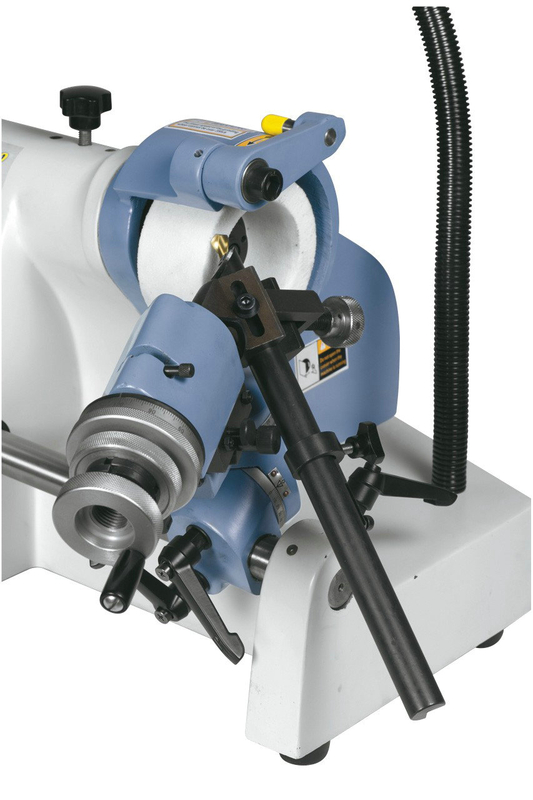

Universal cutter grinder SP-U3
Quantity: SP-U3 multi-purpose knife grinderMax.hoding capacity
16/28mm
Max. grinding capacity
25mm
Pushing angle
0~180
Clearance angle
0~45
Negative pushing angle
0~25
Rotating speed of the main axle
5000RPM
Diameter of dishshaped grinding wheel
100*50*20mm
Motor
1/2HP 380V 1/4HP 220V
Net/Gross weight
46/60kgs
Packing size
55*45*47cm
Description
1.Used for grinding of HSS and carbide engraving/carving cutters with single and multiple flutes in various shapes.
2.With accessories provided carving cutter grinder can be set up to grind end mills,drill bits and turning tool.
3.Grinding wheel size 100 x 50 x 20mm
4.Halogen Light 12V
5.Large range 5C collets(Ø3mm-Ø25mm on option)
SPECIFICATIONS:
Max. collect capacity Ø16/28mm（5C collet:3-25mm)
Max. grinding capacity Ø25mm
Taper angle 0° ~ 180°
Relief angle 0° ~ 45°
Negative angle 0° ~ 25°
Spindle speed 5,000 RPM
Cup grinding wheel 100 x 50 x 20mm
Motor 1/2 HP, 380V, 1/4HP,220V,50/60Hz
N.W. / G.W 46kgs / 60kgs
Packing size 55x44x40cm
Standard Accessories:
Grinding wheel Ø100x50xØ20mmx1pc
Hexagon Wrench M2.5x1pc M3x1pc M4x1pc M5x1pc M6x1pc M8x1pc
Cross screw driver 5x100x1pc
Screw driver 5x100x1pc
Drive belt 1 pcs
Wheel dresser with diamond 1 pcs
Wheel flange mounted 1 pcs
Collect Ø4,6,8,10,12mm(5pcs)
Twist drill grinding attachment 1 pcs
End mill grinding attachment 1 pcs
Lathe tool grinding attachment 1 pcs
Optional Accessories:
Working stand
Cup Grinding wheel
Drive belt
