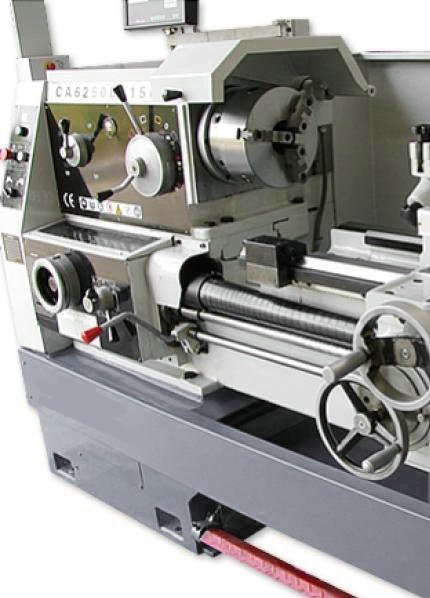

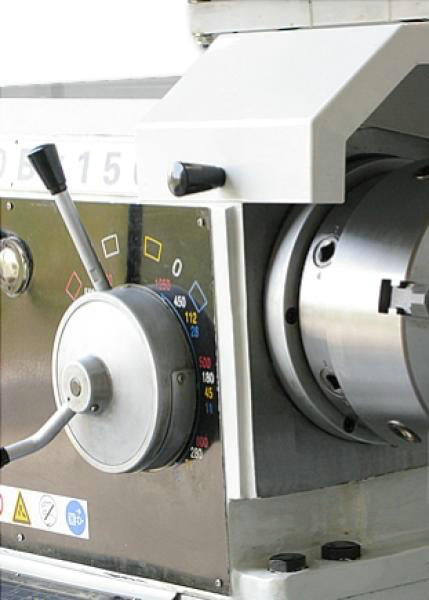

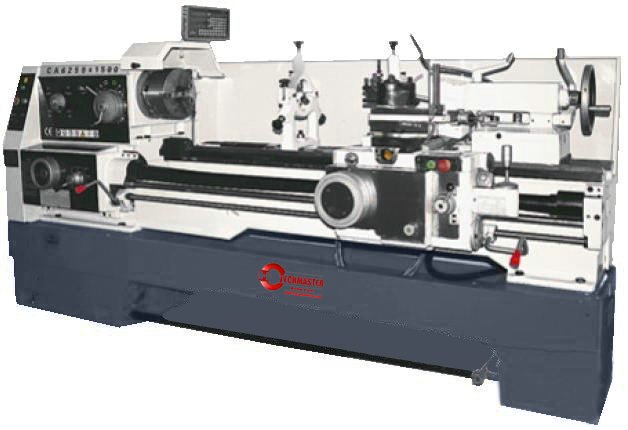

Universal lathe 500 x 1000/1500/2000
Quantity: -
Universal lathe 500 x 1000/1500/2000
- Various possibilities of use in machines general construction, production, making of series elements, in industrial training shops etc.
- Bed central lubrication system
- Removable bridge piece enables large diameter elements machining
- Modern installation of main arbor in ball bearings
- Feeds switching over central system, feed screw and feed shaft for threading
- Precisely operating rotations and feed control
- Machine bed extremely torsion resistant and does not undergo vibrations thanks to which the basic condition of accurate turning is met
- Tailstock system can be moved for tapers turning
Standard equipment
- Digital readout for 3 axes
- Self-centring 3-jaw lathe chuck 250 mm
- 4-jaw lathe chuck 400 mm
- Face plate 500 mm
- Steady rest – rest 130 mm
- Steady rest - rest 260 mm
- Follow rest – rest
- Spindle reducer sleeve
- Support Rapid feeds
- Emergency foot brake
- Chips guard on lathe whole length
- Change gears
- Cooling system
- Halogen lighting installation - 24 V
- Thread dial
- Back wall
- Tools kit
- TOD in Polish language
- EC Declaration of Conformity
Optional equipment
- Cylindrical and internal grinder
- Rule for tapers
- Quick exchangeable tool post multifix
- Quick exchangeable cutter holder
Technical data
Swing over bed (mm)
500
Swing over cross slide (mm)
300
Swing over gap (mm)
720
Turning length over gap (mm)
210
Centre distance (mm)
1000 or 1500 or 2000
Bed
inductively hardened
Bed width (mm)
400
Lathe chuck diameter (mm)
250
Spindle bore (mm)
80
Spindle taper
D1-8 CAMLOCK
Spindle mount
MT 6
Spindle speeds range (rpm)
11 - 1600
Maximal tool dimensions (mm)
25 x 25
Feed longitudinal (mm/rotation)
0.028 – 6.33
Feed cross (mm/rotation)
0.014 – 3.16
Metric thread (mm)
1-192
Inch thread
2-24 TPI
Modular thread (mm)
0.25 - 48
D.P. thread
1 - 96
Rapid feed
longitudinal 4 m/min, cross 2 m/min
Tailstock spindle diameter (mm)
75
Tailstock spindle travel (mm)
150
Tailstock spindle taper
MT 5
Digital readout
for 3 axes
Main motor power
7.5 kW
Flood coolant pump power
0.09 kW
Overall dimensions (L x W x H) (mm)
3170 x 1050 x 1320
Net weight
2290 kg
