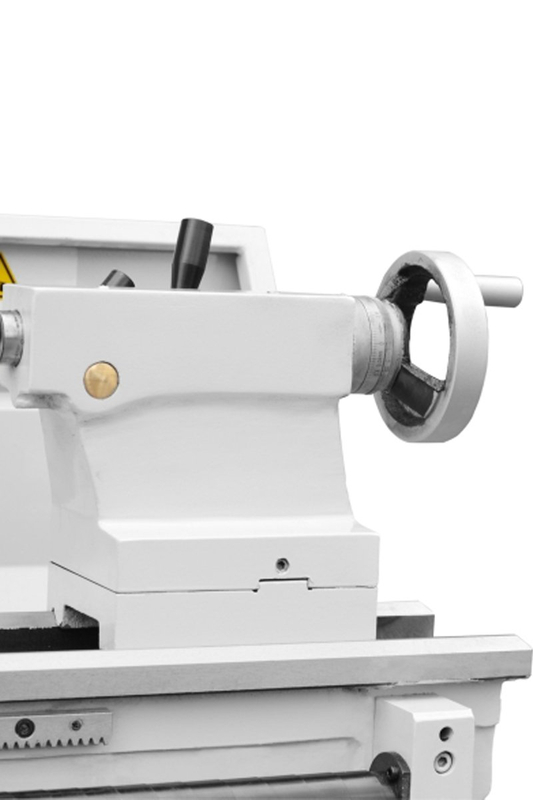

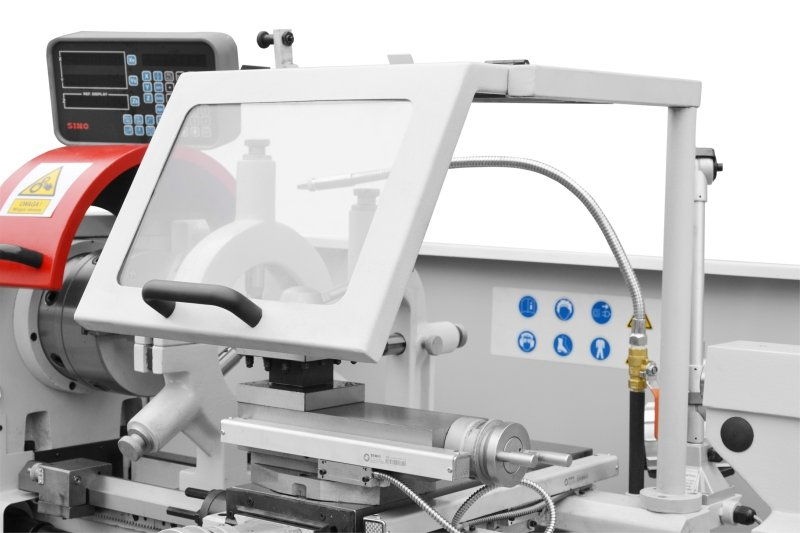

Universal lathe CD410x1000/1500
Quantity: -
Universal lathe CD410x1000/1500
-
Machine characteristics
- This series lathes can be used for many tasks such as internal and external surfaces turning, tapers turning, polishing, modular and DP threading, drilling and internal broaching.
- The gap bed enable additionally boring of all types of products of flat and irregular shapes.
- Machining accuracy: circularity deviation below 0.01 mm, cylindricality deviation no more than 0.02 mm for measurement of 200 mm long, ideal surface finish.
- With spindle in thorough hole of 53 mm the lathe can machine bigger diameter heavy bars.
Technical data
SWING OVER BED
410 mm
SWING OVER CROSS SLIDE
255 mm
SWING OVER GAP
580 mm
TURNING LENGTH OVER GAP
190 mm
CENTRE DISTANCE
1000 mm (option 1500 mm)
BED
inductively hardened
BED WIDTH
250 mm
SPINDLE BORE
52 mm
SPINDLE TAPER
D1-6
SPINDLE MOUNT
No. 6 Morse
SPINDLE SPEEDS RANGE
(16) 45 - 1800 rpm
MAXIMAL TOOL DIMENSION
20 mm x 20 mm
FEED LONGITUDINAL
(17) 0.05 – 1.7 mm/rotation
FEED CROSS
(17) 0.025 – 0.85 mm/rotation
FEED LONGITUDINAL
(17) 0.002" – 0.067"/rotation
FEED CROSS
(17) 0.001" – 0.0335" /rotation
METRIC THREAD
(39) 2 - 14 mm
INCH THREAD
(42) 2 - 72 T.P.I
MODULAR THREAD
0.3 - 3.5 M.P (18)
D.P. THREAD
8 - 44 D.P. (21)
TAILSTOCK SPINDLE DIAMETER
50 mm
TAILSTOCK SPINDLE TRAVEL
120 mm
TAILSTOCK SPINDLE TAPER
MK 4
DIGITAL READOUT
Full – 3 axes
MAIN MOTOR POWER
4.5 kW
FLOOD COOLANT PUMP POWER
90 W
OVERALL DIMENSIONS
1940 mm x 850 mm x 1320 mm
NET WEIGHT
1550 kg
Standard equipment
- 3-JAW LATHE CHUCK
- 4-JAW LATHE CHUCK
- DIGITAL READOUT
- FACE PLATE
- STEADY REST
- FOLLOW REST
- SPINDLE REDUCER SLEEVE
- DEAD CENTRE
- CHANGE GEARS FOR SWING-FRAME OF GEAR TRAIN
- COOLING SYSTEM
- LIGHTING INSTALLATION
- THREAD DIAL
- TOOLS KIT
- TOD IN POLISH LANGUAGE
- EC DECLARATION OF CONFORMITY
-
