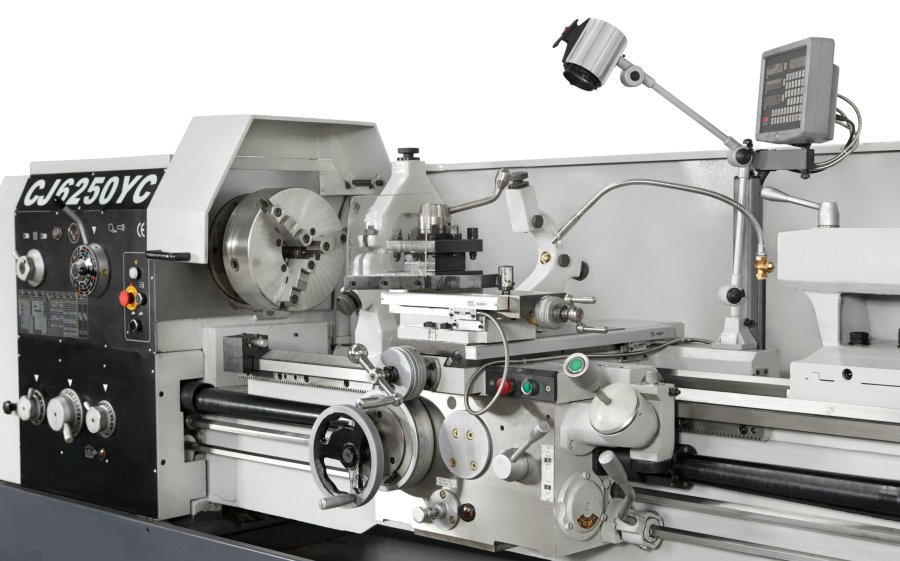

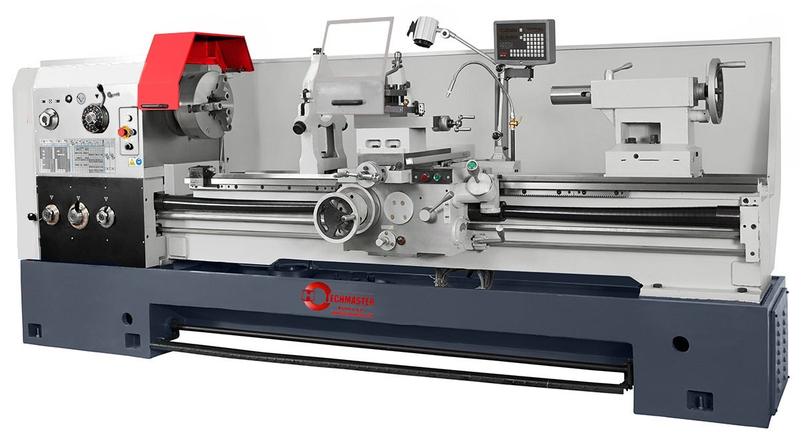

Universal lathe CJ6250YC 500 x 1500YC

Quantity:
  • Universal lathe CJ6250YC 500 x 1500YC
  • Machine characteristics



    A modern manufacturing universal lathe easy in operation, digital readout for 3 axes. The lathe is used in repair divisions, tool shops and in a lot production.

    • Various possibilities of use in machines general construction, production, making of series elements, in industrial training shops etc.
    • Removable bridge piece enables large diameter elements machining
    • Modern installation of main arbor in ball bearings
    • Feeds switching over central system, feed screw and feed shaft for threading
    • Precisely operating rotations and feed control
    • Machine bed extremely torsion resistant and does not undergo vibrations thanks to which the basic condition of accurate turning is met

    Technical data



    SWING OVER BED

    500 mm with LCD readout

    SWING OVER CROSS SLIDE

    300 mm

    SWING OVER GAP

    720 mm

    TURNING LENGTH OVER GAP

    320 mm

    CENTRE DISTANCE

    1500 mm

    BED

    inductively hardened

    BED WIDTH

    405 mm

    LATHE CHUCK DIAMETER

    250 mm (315 mm)

    SPINDLE BORE

    105 mm

    SPINDLE TAPER

    D1-8 CAMLOCK


    SPINDLE MOUNT

    Morse 7

    SPINDLE SPEEDS RANGE

    36 - 1600 rpm

    MAXIMAL TOOL DIMENSIONS

    25 x 25 mm

    FEED LONGITUDINAL

    0.063 – 2.52 mm/rotation

    FEED CROSS

    0.027 – 1.07 mm/rotation

    METRIC THREAD

    1 - 14 mm (22 types)

    INCH THREAD

    28-2 pitch of thread/inch (26 types)

    MODULAR THREAD

    0.5 - 7 mm (18 types)

    D.P. THREAD

    56-4 D.P. (24 types)

    RAPID FEED LONGITUDINAL

    longwise - 4,5 m/min,



    cross - 1,9 m/min

    TAILSTOCK SPINDLE DIAMETER

    75 mm

    TAILSTOCK SPINDLE TRAVEL

    150 mm

    TAILSTOCK SPINDLE TAPER

    MT 5

    DIGITAL READOUT

    for 3 axes

    MAIN MOTOR POWER

    7.5 kW

    FLOOD COOLANT PUMP POWER

    0.09 kW

    OVERALL DIMENSIONS

    3132 mm x 975 mm x 1270 mm

    NET WEIGHT

    3300 kg (3800 gross)

    Standard equipment



    • DIGITAL READOUT FOR 3 AXES
    • SELF-CENTRING 3-JAW LATHE CHUCK Ø 250, OPTION Ø-315 mm
    • 4-JAW LATHE CHUCK Ø-400 mm
    • FOLLOW REST – REST
    • STEADY REST – REST
    • REDUCER SLEEVE FOR SPINDLE
    • SUPPORT RAPID FEEDS
    • EMERGENCY FOOT BRAKE
    • CHIPS GUARD ON LATHE WHOLE LENGTH
    • COOLING SYSTEM
    • HALOGEN LIGHTING INSTALLTION - 24 V
    • THREAD DIAL
    • TOOLS KIT

    Optional equipment



    • Cylindrical and internal grinder
    • Rule for tapers
    • Quick exchangeable tool post multifix
    • Quick exchangeable cutter holder
  •
