Universal lathe TORNADO CQ6236KV VARIO
Quantity: -
名称 Universal lathe TORNADO CQ6236KV VARIO
Machine characteristics
INDUCTIVELY HARDENED BEDWAYS
HARDENED CHANGE GEARS IN SPINDLE GEAR
CONTROLLED FRICTION CLUTCH ONFEED SHAFT
POSSIBILITY OF WHOLE RANGE OF THREADS MACHINING WITHOUT NECESSITY OF CHANGE GEARS CHANGE IN SWING-FRAME OF GEAR TRAIN
FEED SELECTION BLOCKAGE: WITH SCREW OR SHAFT
REMOVABLE BRIDGE PIECE
Standard equipment
3-jaw lathe chuck - 200 mm
4-jaw lathe chuck
CATCH PLATE 300 mm

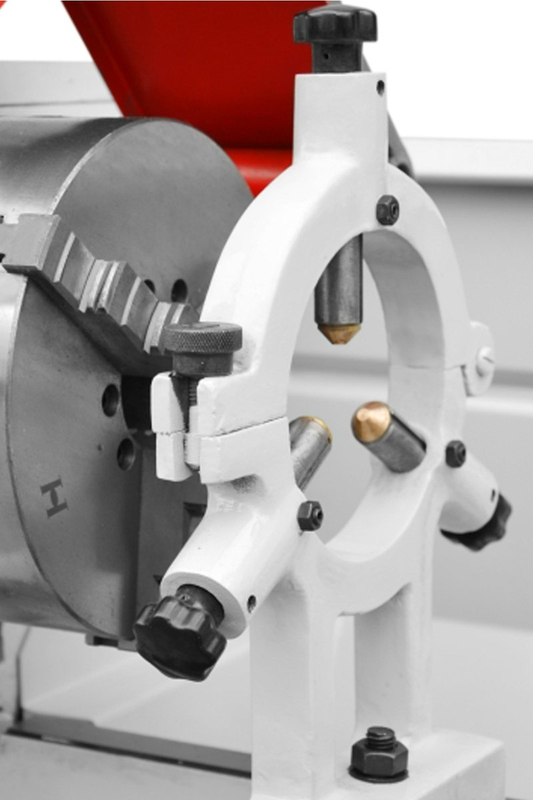

STEADY REST
FOLLOW REST
Morse 5/3 REDUCTION
COOLING SYSTEM
LIGHTING
CHANGE GEARS SET
TOD in Polish language
EC Declaration of Conformity
Technical data
SWING CAPACITY
360 mm
SWING CAPACITY OVER CROSS SLIDE
220 mm
SWING CAPACITY OVER GAP
490 mm
MAXIMAL TURNING LENGTH OVER GAP
168 mm
BED WIDTH
187 mm
CENTRE DISTANCE
970 mm
SPINDLE TAPER
D1-4
SPINDLE BORE
52 mm
SPINDLE SPEEDS RANGE
90 - 2000 rpm
NUMBER OF SPINDLE SPEEDS
8 ranges
MAXIMAL TOOL DIMENSION
16 mm x 16 mm
METRIC THREAD
0.4 – 10 mm
INCH THREAD
4 - 60 T.P.I.
MODULAR THREAD
0.2 - 3 M.P.
D.P. THREAD
8 - 112 D.P.
MOTOR POWER
1.5 kW
PUMP POWER
0.1 kW
WEIGHT
570 kg
