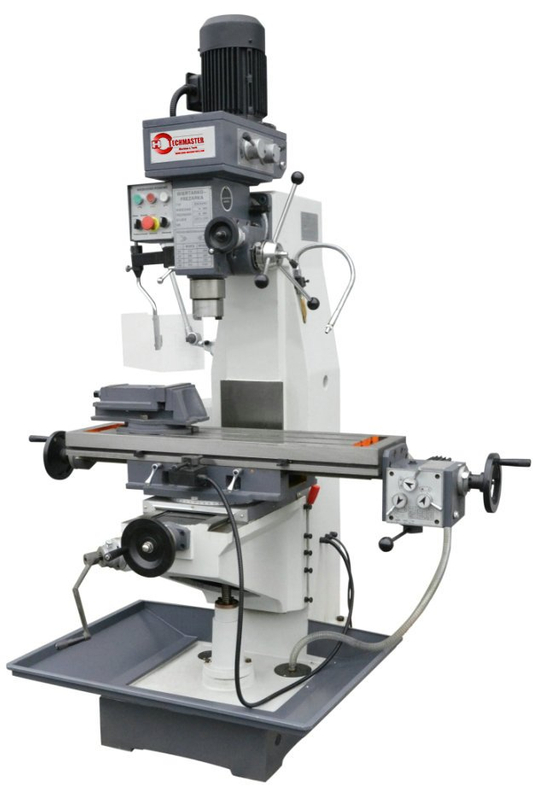

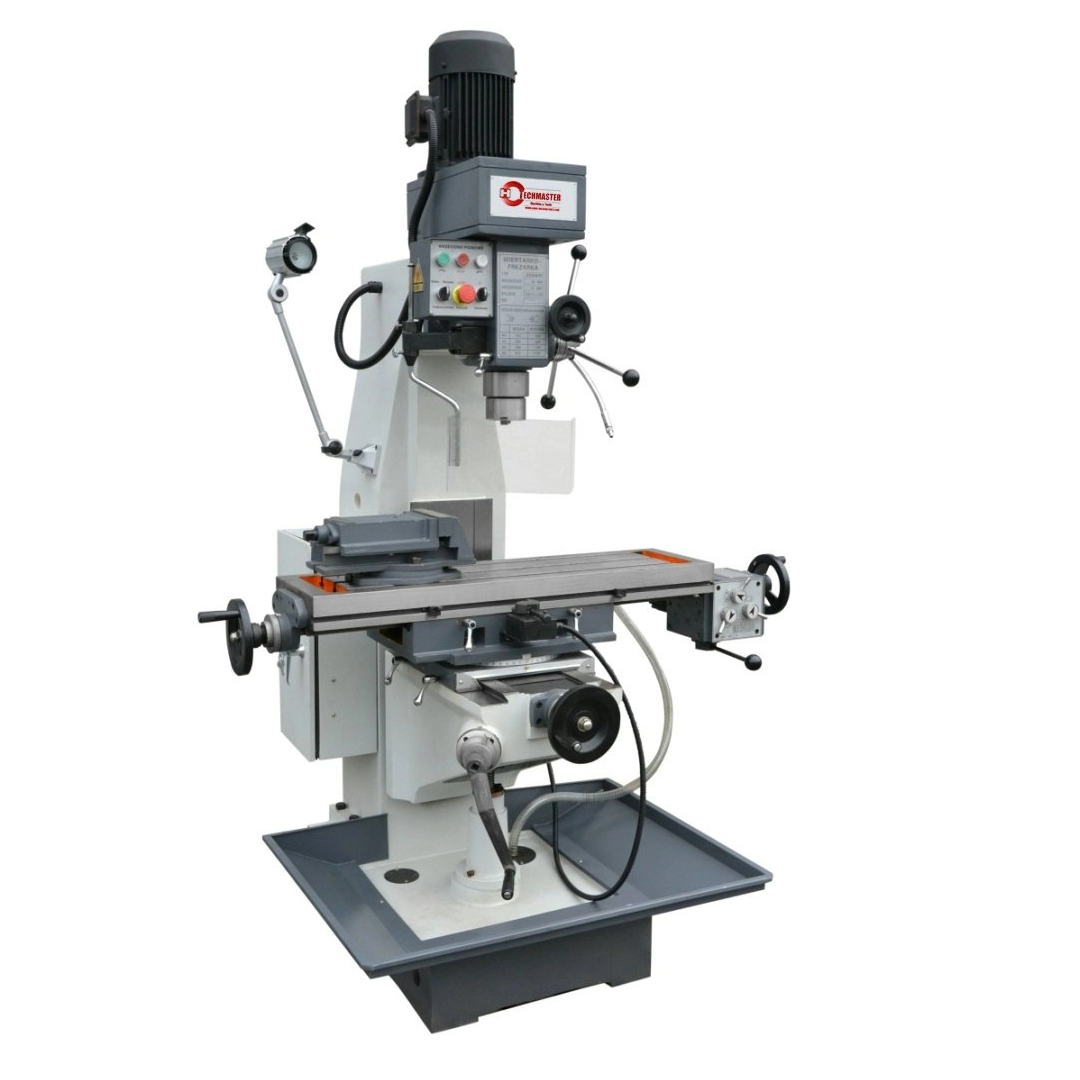

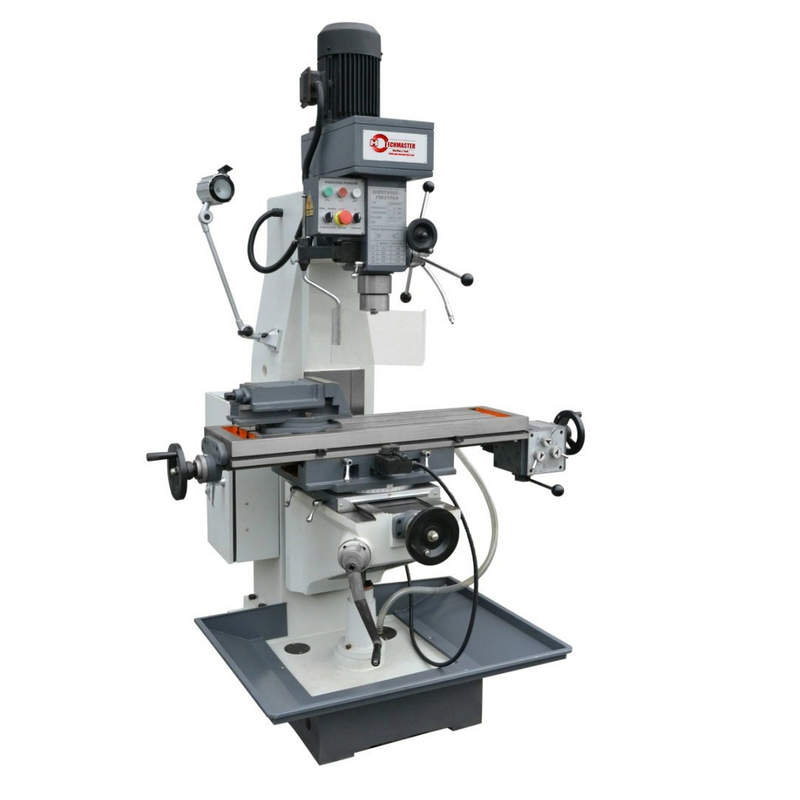

Universal milling machine 1000 x 260

Quantity:
  • Universal milling machine 1000 x 260

Technical data

MAXIMUM DRILLING CAPACITY

50 mm

MAXIMUM MILLING DIAMETER

25 mm

MAXIMUM GRINDING WHEEL DIAMETER

100 mm

SPINDLE TAPER

ISO40

SPINDLE TRAVEL

125 mm

TABLE DIMENSIONS

1000 x 260 mm


TABLE VERTICAL FEED

260 - 380 mm

TABLE TRAVEL

550 x 230 mm

TABLE ANGLE OF ROTATION

+/- 45o

HEAD ANGLE OF ROTATION

+/- 90o

SPEED RANGE

115 - 1750 rpm – 9 levels

MOTOR POWER

1,5 kW

Optional equipment

  • Digital readout
  • Autofeed in x and y
  • Lighting
  • Cooling system
