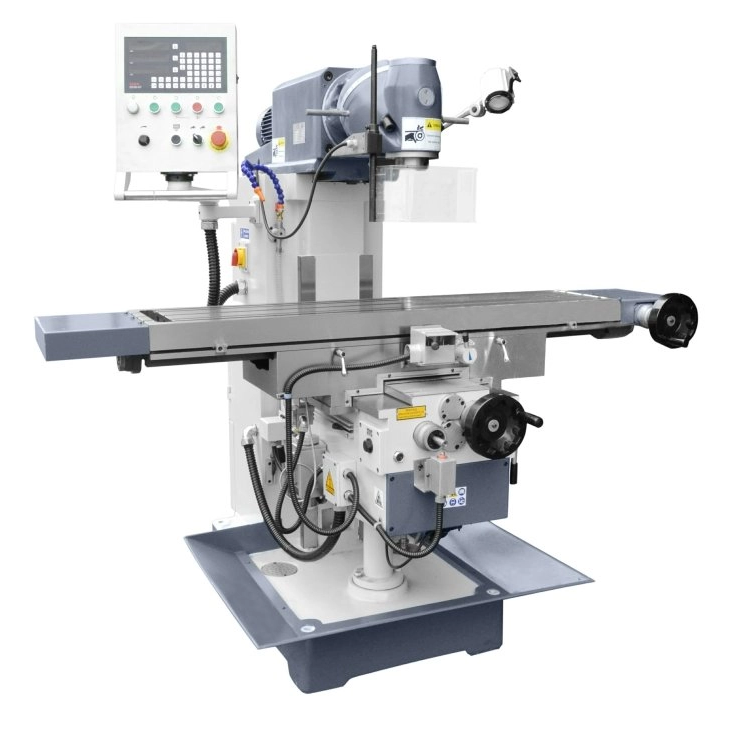

Universal milling machine UWF 110 SERVO
Quantity: -
Universal milling machine UWF 110 SERVO
It is a new series of conventional machines equipped with servodrives for 3 working feeds, smooth feed control, a quick feed for 3 axes.
Technical data
TABLE DIMENSIONS
1270 (option 1370) x300 mm
MAX. FEED LONGITUDINAL
720 (option 1000) mm
MAX. FEED HORIZONTAL
380 mm
MAX. FEED VERTICAL
400 mm
T-SLOTS NUMBER
3T-SLOTS WIDTH
14 mm
T-SLOTS SPACE
80 mm
SPINDLE TAPER
7:24 rpm ISO40
SPINDLE DISTANCE FROM TABLE SURFACE
80-660 mm
RAPID TABLE FEED LONGITUDINAL
1000 mm/min
RAPID TABLE FEED HORIZONTAL
1000 mm/min
RAPID TABLE FEED VERTICAL
750 mm/min
MOTOR POWER
3 kW
FLOOD COOLANT PUMP POWER
60W
NET WEIGHT
1350 kg
DIMENSIONS
1720x1680x1700 mm
