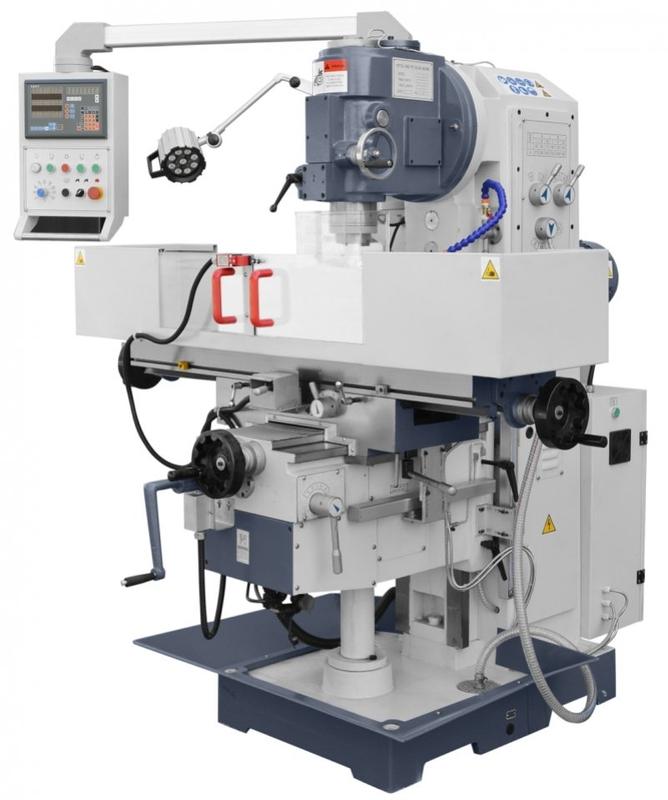

Universal milling machine UWF 125 SERVO

Quantity:
  • Universal milling machine UWF 125 SERVO

It is a new series of conventional machines equipped with servodrives for 3 working feeds.


Technical data

TABLE DIMENSIONS

1270x300 mm

MAX. TABLE TRAVEL (XYZ)

720/300/400

SPINDLE DISTANCE FROM TABLE SURFACE

35-435 mm

SPINDLE TAPER

7:24 ISO40

RAPID TABLE TRAVEL

1000/1000/750 mm/min

TABLE FEED

changeable

SPINDLE SPEED

(12) 35-1500 rpm

MOTOR POWER

3 kW

SERVOMOTOR

10 Nm

DIMENSIONS

1720x1680x1810 mm

WEIGHT

1500 kg
