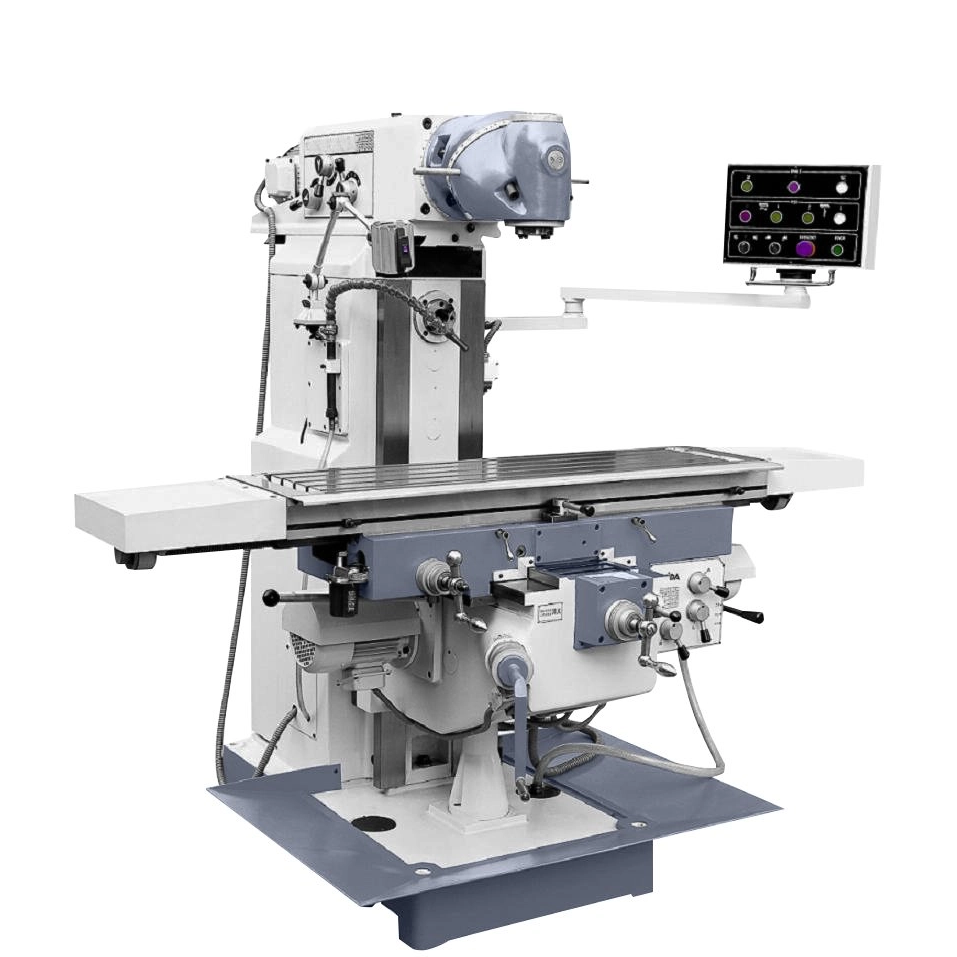

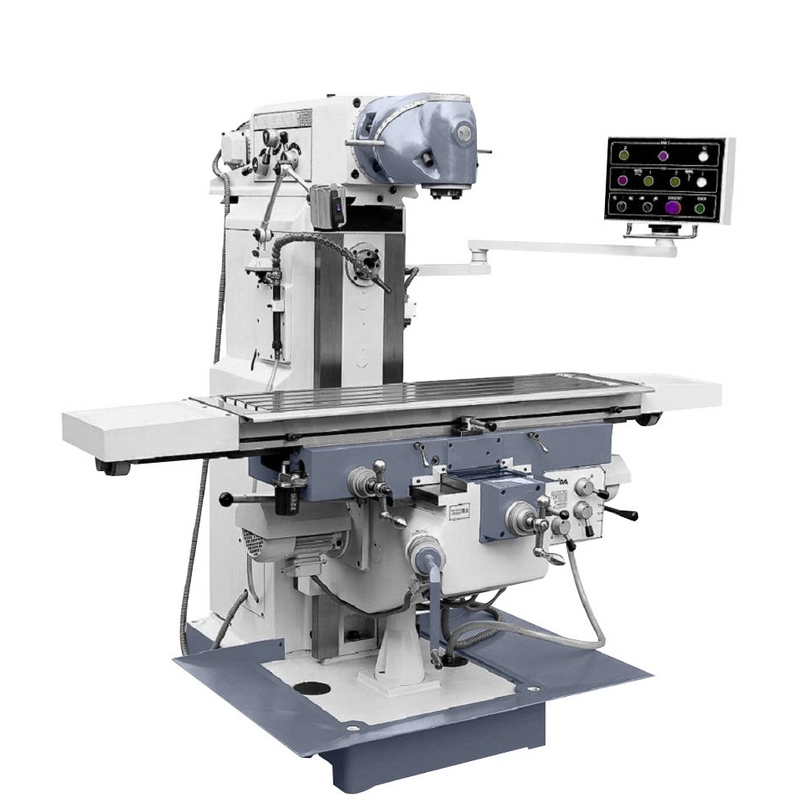

Universal milling machine UWF 200 ECO

Quantity:
  • Universal milling machine UWF 200 ECO

Technical data

TABLE DIMENSIONS

1320 x 320 mm

TABLE TRAVEL  LONGITUDINAL

1000 mm

TABLE TRAVEL CROSS

300 mm

TABLE TRAVEL VERTICAL

450 mm

T-SLOTS IN TABLE

5

DISTANCE BETWEEN T-SLOTS

50 mm

MAXIMUM TABLE LOAD

300 kg

VERTICAL SPINDLE - COLUMN DISTANCE

250 mm

VERTICAL SPINDLE-TABLE DISTANCE

600 mm

HORIZONTAL SPINDLE-TABLE DISTANCE

450 mm

UPPER BEAM TRAVEL

400 mm

VERTICAL SWIVEL HEAD

180° taper, ISO 40

SPINDLE

vertical head – fixed

SPINDLE TAPER

horizontal - ISO 40

VERTICAL SPINDLE SPEED

(11) 45 - 1660 rpm

HORIZONTAL SPINDLE SPEED

(12) 40 - 1300 rpm

TRAVEL LONGITUDINAL

(8) 20 - 360 mm/min

FEED CROSS

(8) 20 - 360 mm/min

TRAVEL VERTICAL

quick adjustable

RAPID FEED

for X Y Z axes

DIGITAL READOUT

for 3 axes

MAIN MOTOR POWER

3 kW

DIMENSIONS

2030 x 1950 x 1980 mm

WEIGHT

2000 kg

Standard equipment

  • Digital readout for 3 axes
  • Horizontal spindle rest
  • Long milling arbors 2 pcs
  • Collets set
  • Spanners set
  • Lighting installation
  • Cooling system
