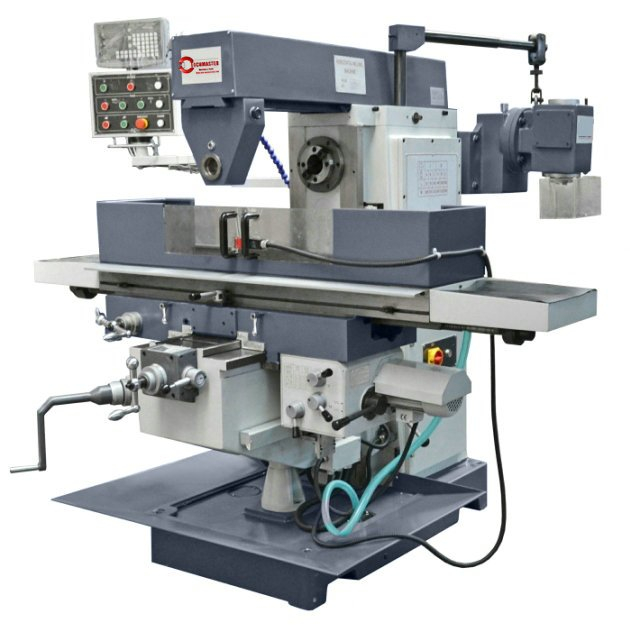

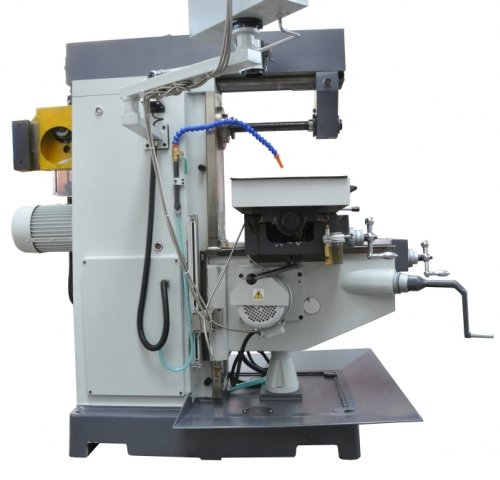

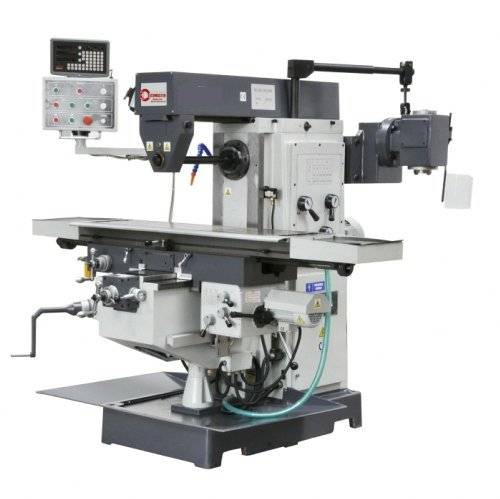

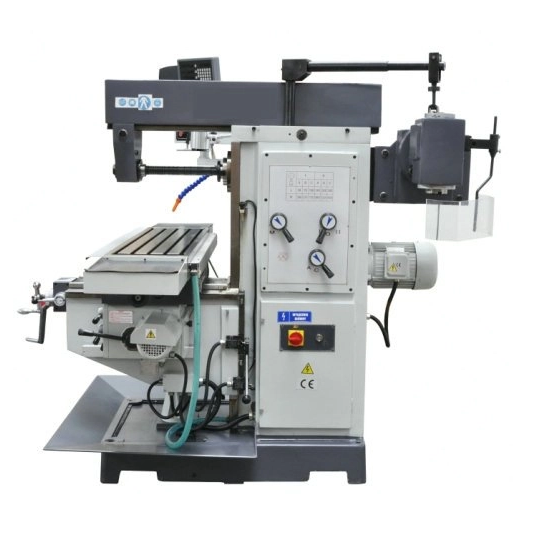

Universal milling machine UWF120
Quantity: -
Universal milling machine UWF120
An universal milling machine for tool shops and repair divisions. Used also in production processes.
Machine characteristics
An industrial universal milling machine for the heavy industry, craftsmanship, irreplaceable for tool shops and repair divisions. The machine is equipped with a swivel vertical head and an upper beam extended up to 500 mm. A large work table 1320 x 360 mm of maximum load 600 kg enables machining even big elements, whereas a SINO digital readout makes operation considerably easier.
- Massive, rigid structure
- Hardened guides

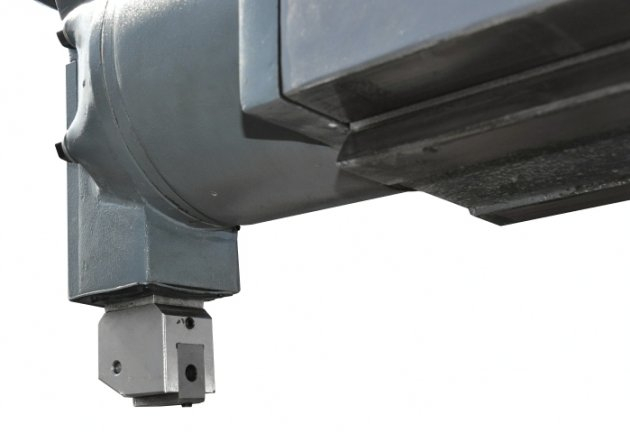

- Vertical swivel head
- Easy operation
- Rich standard equipment
- Digital readout for 3 axes in standard version
Standard equipment
- Digital readout for 3 axes
- Vertical swivel head
- Horizontal spindle rest (rest)
- Long and short milling arbor
- Milling arbor with collets set for end mills
- Reduction sleeve for tools with Morse shank
- Tools kit
- Lighting installation - 24 V
- Cooling system
- TOD in Polish language
- EC Declaration
Technical data
Table working dimensions (mm)
1320 x 320
Table travel longitudinal (mm)
1000
Table cross travel (mm)
300
Vertical table travel (mm)
400
T-slots in table - number
5
Distance between T-slots (mm)
63
Maximum table load (kg)
600
Vertical spindle - column distance (mm)
320
Vertical spindle - table distance (mm)
0 - 400
Horizontal spindle - table distance (mm)
0 - 400
Upper beam travel
500
Vertical head - type
ISO 40, swivel 90°
Spindle
vertical head – fixed
Spindle taper
ISO 50, horizontal
Vertical spindle speed (mm/min)
58 - 1800
Horizontal spindle speed (mm/min)
58 - 1800
Travel longitudinal (mm/min)
20 - 360
Cross feed speed range (mm/min)
20 - 360
Vertical feed speed range (mm/min)
quick - adjustable - 670
Rapid feed (mm/min)
1200
Digital readout
for 3 axes
Main motor power (kW)
4
Overall dimensions (L x W x H) (mm)
2100 x 1720 x 1750
Weight (kg)
2300
