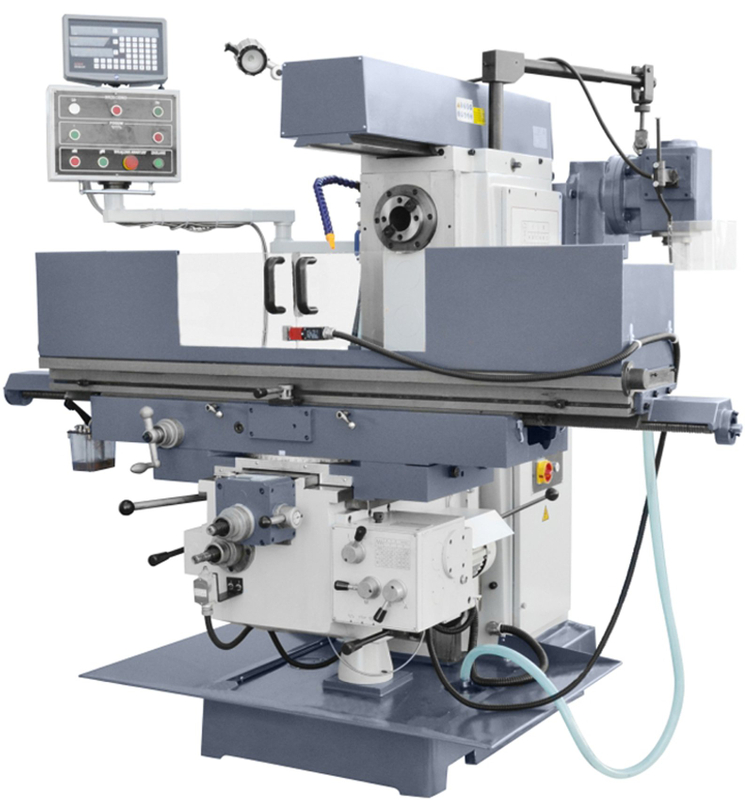

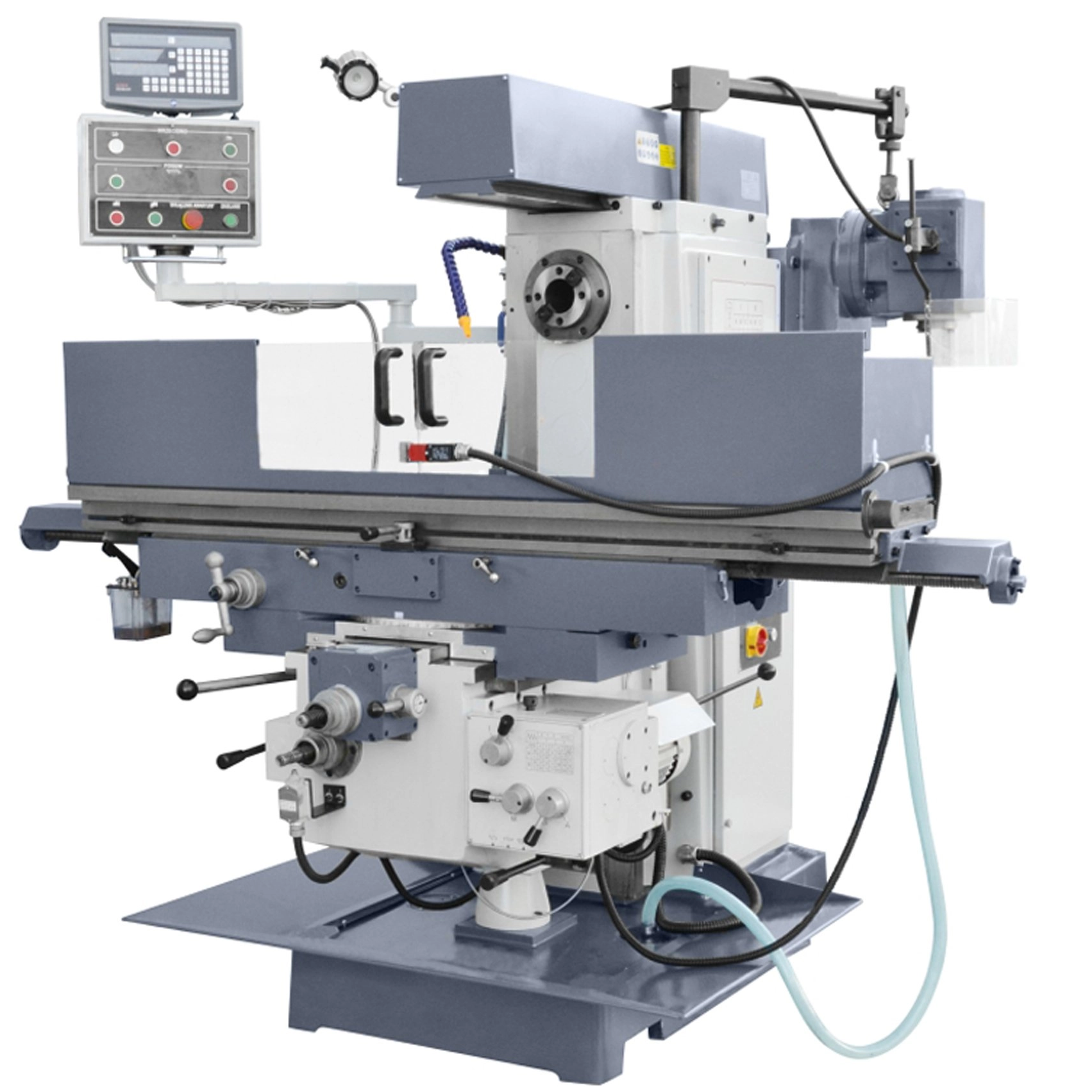

Universal milling machine UWF140
Quantity: -
Universal milling machine UWF140
The milling machine UWF 140 is characterised by a simple and rigid construction what enables a broad range of use. Moreover it has very rich standard equipment e.g. a machine vice, a vertical swivel head and digital readouts, automatic feeds in X, Y, Z and a swivel table.
Machine characteristics

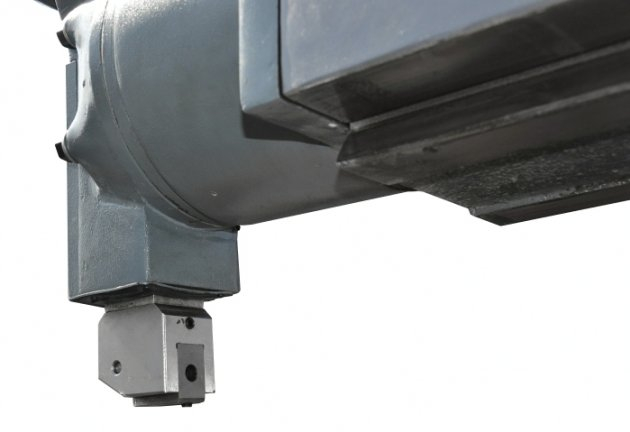

An industrial universal milling machine for the heavy industry, craftsmanship, irreplaceable for tool shops and repair departments. The machine is equipped with a swivel vertical head and an upper beam extended up to 500 mm. A large work table 1600 x 360 mm of maximum load 600 kg enables machining even big elements, whereas a SINO digital readout makes operation considerably easier.
- Massive, rigid structure
- Hardened guides

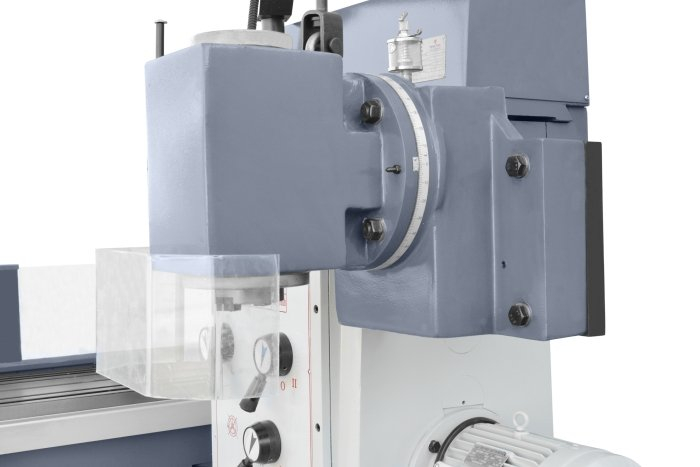

- Vertical swivel head
- Easy operation
- Rich standard equipment
- Digital readout for 3 axes in standard version
Technical data
SPINDLE TAPER
ISO 50
DISTANCE BETWEEN SPINDLE AXIS AND TABLE
0~400 mm
DISTANCE BETWEEN SPINDLE AXIS AND COLUMN
175 mm
SPINDLE SPEED
58~1800 rpm
TABLE SIZE
1600x360 mmTABLE TRAVEL LONGITUDINAL
1300 mm
TABLE TRAVEL CROSS
300 mm; 260 mm
VERTICAL TRAVEL LONGITUDINAL
400 mm
TABLE FEED (50 Hz)
22~420 mm/min (X)
22~393 mm/min (Y)
6~112 mm/min (Z)
RAPID TABLE FEED (50 Hz)
1290 mm/min (X)
1205 mm/min (Y)
342 mm/min (Z)
TABLE FEED (60 Hz)
26~505 mm/min
26~470 mm/min
8~135 mm/min
ACCELERATED TABLE FEED (60 Hz)
1548 mm/min
1446 mm/min
410 mm/min
MAX. ANGLE OF TURNTABLE
± 45°
COLUMN TRAVEL
500 mm
MAIN MOTOR
4 kW
MACHINE DIMENSIONS
2070 x 2025 x 1950 mm
NET WEIGHT
2300 kg
Standard equipment
- VERTICAL SWIVEL HEAD
- HORIZONTAL SPINDLE REST (REST)
- MILLING ARBORS: LONG AND SHORT
- SET OF COLLETS FOR MILLING CUTTERS
- REDUCER SLEEVE FOR TOOLS
- LIGHTING INSTALLATION
- COOLING SYSTEM
- TOD IN POLISH LANGUAGE
- EC DECLARATION OF CONFORMITY
