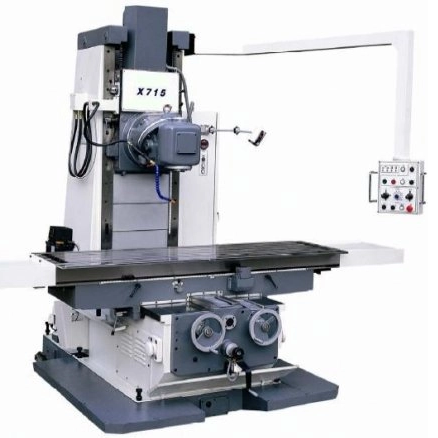

Universal milling machine X715
Quantity: -
Universal milling machine X715
Machine characteristics
Rigid, robust construction enabling heavy metals working
Table large area
Possibility of working as vertical and horizontal milling machine
Head long vertical travel
Technical parameters
TABLE SIZE
2100 mm x 500 mm
NUMBER OF T-SLOTS
4
T-SLOT DIMENSIONS/ARRANGEMENT
20 mm/100 mm
MAXIMUM TABLE LOAD
2000 kg
TRAVEL LONGITUDINAL
1500 mm
TRAVEL CROSS
670 mm
SPINDLE
ISO50 7:24
SPEED
(12) 40-1600 rpm
SPINDLE DISTANCE FROM COLUMN SURFACE
610 mm
SPINDLE DISTANCE TO TABLE SURFACE
0 - 670 mm
RAPID FEED LONGITUDINAL AND CROSS
3500 mm/min
RAPID FEED VERTICAL
1750 mm/min
FEED LONGITUDINAL AND CROSS
20-1800 mm/min
FEED VERTICAL
10-900 mm/min
SPINDLE MOTOR
7.5 kW
FEED MOTOR
2 kW
COOLING PUMP MOTOR
0.55 kW
DIMENSIONS
2280 mm x 2280 mm x 2830 mm
OVERALL DIMENSIONS
3300 mm x 2380 mm x 2750 mm
NET/GROSS WEIGHT
7300 kg / 8000 kg
Standard equipment
Milling fixture ISO 50
Milling holder ISO 50
Reducer sleeve
Oil gun
Toolbox with basic tools
Anchors
TOD in Polish language
EC Declaration of Conformity
