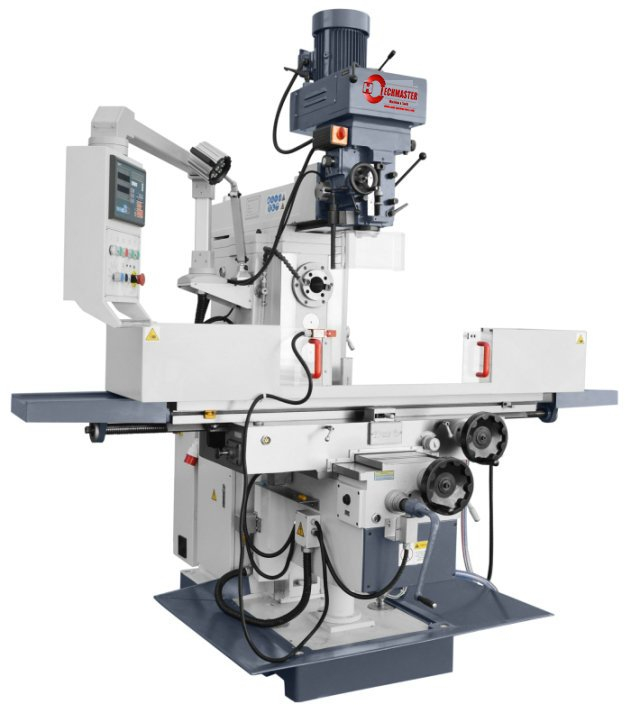

Universal milling machine XL6336L SERVO

Quantity:
  • Universal milling machine XL6336L SERVO

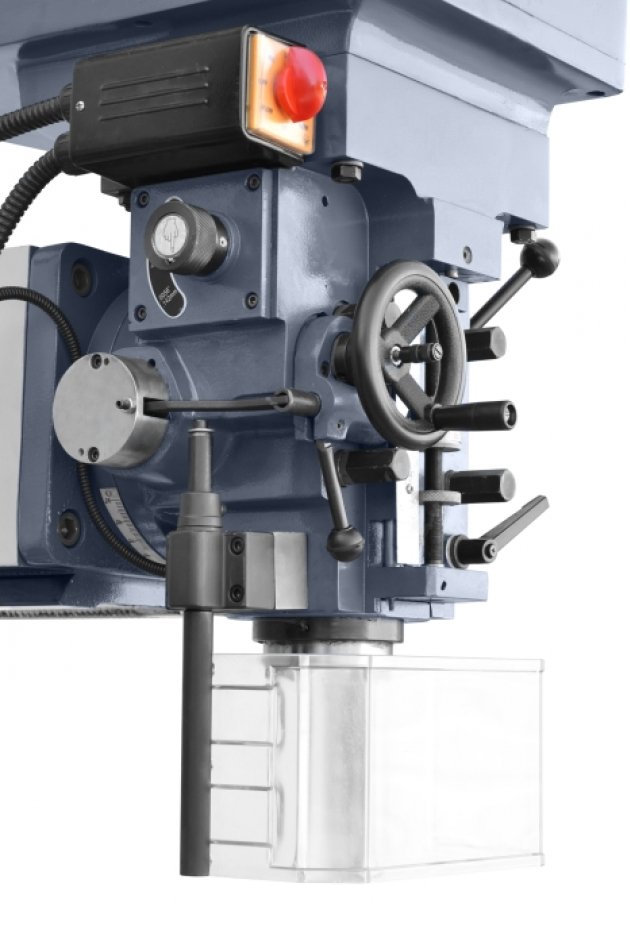

Servodrives in all axes, a head with a threading function, the pinole auto feed, a horizontal spindle ISO 50, a large table 1600 x 360 mm.

Machine characteristics

  • High reliability of all used components as well as their life in a high degree reduce the need of maintenance securing the same the machine higher availability
  • A very solid machine body of a proved construction and very careful making
  • A possibility of modification thanks to a tilt and adjustable upper beam
  • Precision adjustable trapezoidal guides in X axis, and wide, rectangular guides in Y/Z axes
  • Permanent precision thanks to lead screws rolling in all axes
  • All guides are hardened and grinded, and thanks to a central lubrication system are supplied with guides oil
  • A big, rotary control panel with an integrated position indicator

Technical data

TABLE WORKING DIMENSIONS

1650 mm x 360 mm

TABLE TRAVEL LONGITUDINAL

1300 mm

TABLE CROSS TRAVEL

320 mm

VERTICAL TABLE TRAVEL

450 mm

NUMBER OF T-SLOTS IN TABLE

3

DISTANCE BETWEEN T-SLOTS

70 mm

VERTICAL SPINDLE DISTANCE FROM COLUMN

245 mm

VERTICAL SPINDLE DISTANCE FROM TABLE

200 mm - 650 mm

VERTICAL HEAD TYPE

swivel 90°

SPINDLE TRAVEL

140 mm

HORIZONTAL SPINDLE TAPER

ISO 50

SPINDLE SPEED

(12) 60 - 1800 mm/min

TRAVEL LONGITUDINAL

30 - 750 mm/min

CROSS TRAVEL SPEED

20 - 500 mm/min

VERTICAL TRAVEL

15 - 375 mm/min

RAPID FEED

1200mm/min

DIGITAL READOUT

for 3 axes

MAIN MOTOR POWER

5.5 kW

OVERALL DIMENSIONS

2100mm x 1820mm x 1880mm

NET WEIGHT

2300 kg

Standard equipment

  • Digital readout for 3 axes
  • Tools for operation
  • Technical and Operational Documentation
