Universal milling machineUWF95
Quantity: -

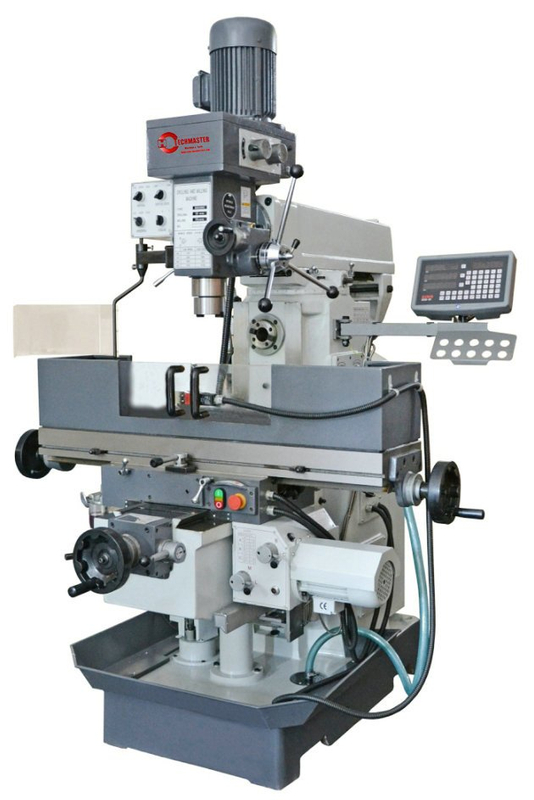

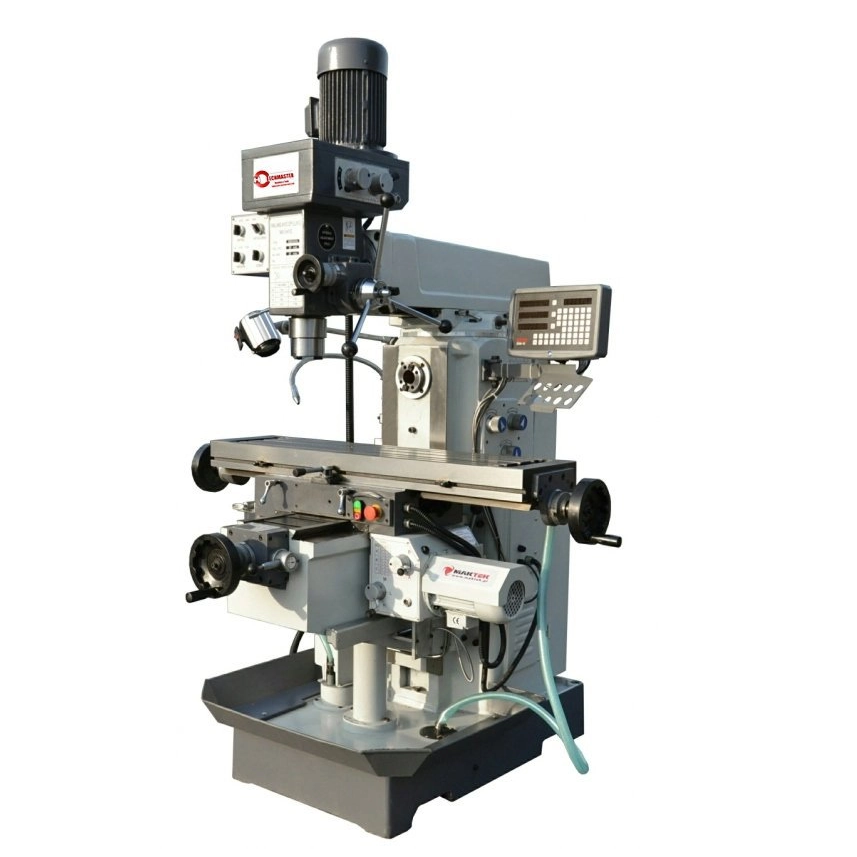

Universal milling machine UWF95
- Hardened guides
- Vertical head with own, independent drive
- Rotary horizontal beam
- Easy in operation
- Rich standard equipment
- Digital readout in 3 axes in standard version
Standard equipment
- Digital readout for 3 axe
- Horizontal spindle rest (rest)
- Long milling arbors 2 pcs
- Milling arbor with collets set for end mills
- Reduction sleeves for tools ISO 40/Morse – 4 pcs
- Tools kit
- Lighting installation – 24 V

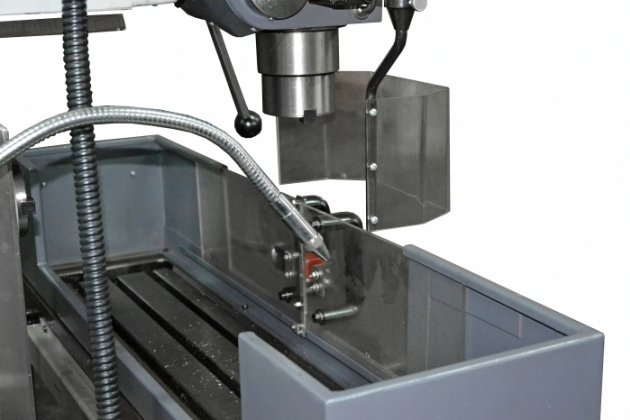

- Cooling system.
- TOD in Polish language
- EC Declaration
Technical data
Table working dimensions (mm)
1120 x 260
Table travel longitudinal (mm)
600
Table cross travel (mm)
270
Vertical table travel (mm)
300
T-slots in table - number
3
Distance between T-slots (mm)
60
Maximum table load (kg)
200
Vertical spindle - column distance (mm)
200 - 550
Vertical spindle - table distance (mm)
70 - 370
Horizontal spindle - table distance (mm)
0 - 300
Upper beam travel
450
Vertical head - type
swivel 90°
Spindle
Moved out L - 120 mm
Spindle taper
ISO 40, horizontal and vertical
Spindle power feed
------
Vertical spindle speed
115 - 1750 rpm
Horizontal spindle speed
40 - 1300 rpm
Travel longitudinal (mm/min)
24 - 402
Cross feed speed range (mm/min)
24 - 402
Vertical feed speed range (mm/min)
------
Rapid feed (mm/min)
-----
Digital readout
for 3 axes
Main motor power (kW)
2.2
Overall dimensions (L x W x H) (mm)
1655 x 1280 x 2200
Weight (kg)
1300
