V-25/33/100 Vertical Bandsaw
Quantity: -

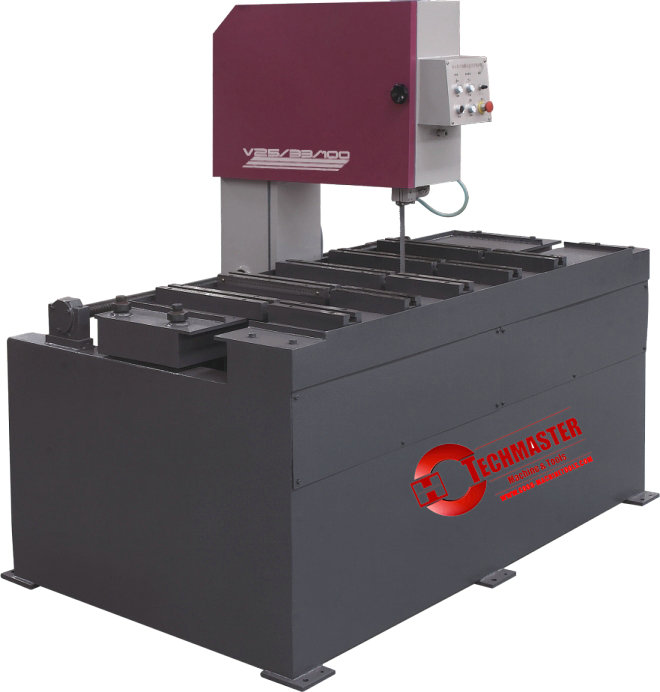

V-25/33/100 Vertical Bandsaw
Description
The V-Series models are a cost effective vertical bandsaw with a travelling head designed to cut large carbon steel, stainless steel plates, slabs, blocks & ingots.
Features
❚heavy duty vertical column, precision ground for additional support
❚large work table
❚carbide & bearing blade guides
❚breakage sensor
❚powered brush cleaner
❚coolant system supplied
❚centralized control panel
❚halogen work light
❚one piece bi metal blade fitted
❚CE compliance
❚tool kit
Optional Equipment
❚hydraulic upper clamp
❚auto chip conveyor
❚PLC control
❚hydraulic blade tensioner
❚saw guide operation hydraulically operated
❚V series can be built to customers requirements
sku
(#)
15-0367
cutting height (max)
(mm)
250
throat depth
(mm)
330
blade size (l x w x t)
(mm)
3080 x 34 x 1.1
speed range
(m/mm)
18 / 40 / 70
table size (l x w)
(mm)
TBC
table tilt
(deg)
N/A
table working height
(mm)
TBC
blade welder
(kva)
N/A
grinder motor power
(kw)
N/A
motor power
(kw/V)
1.8 / 415
dimensions (l x w x h)
(mm)
2000 x 1000 x 1600
weight (nt)
(kg)
1270
