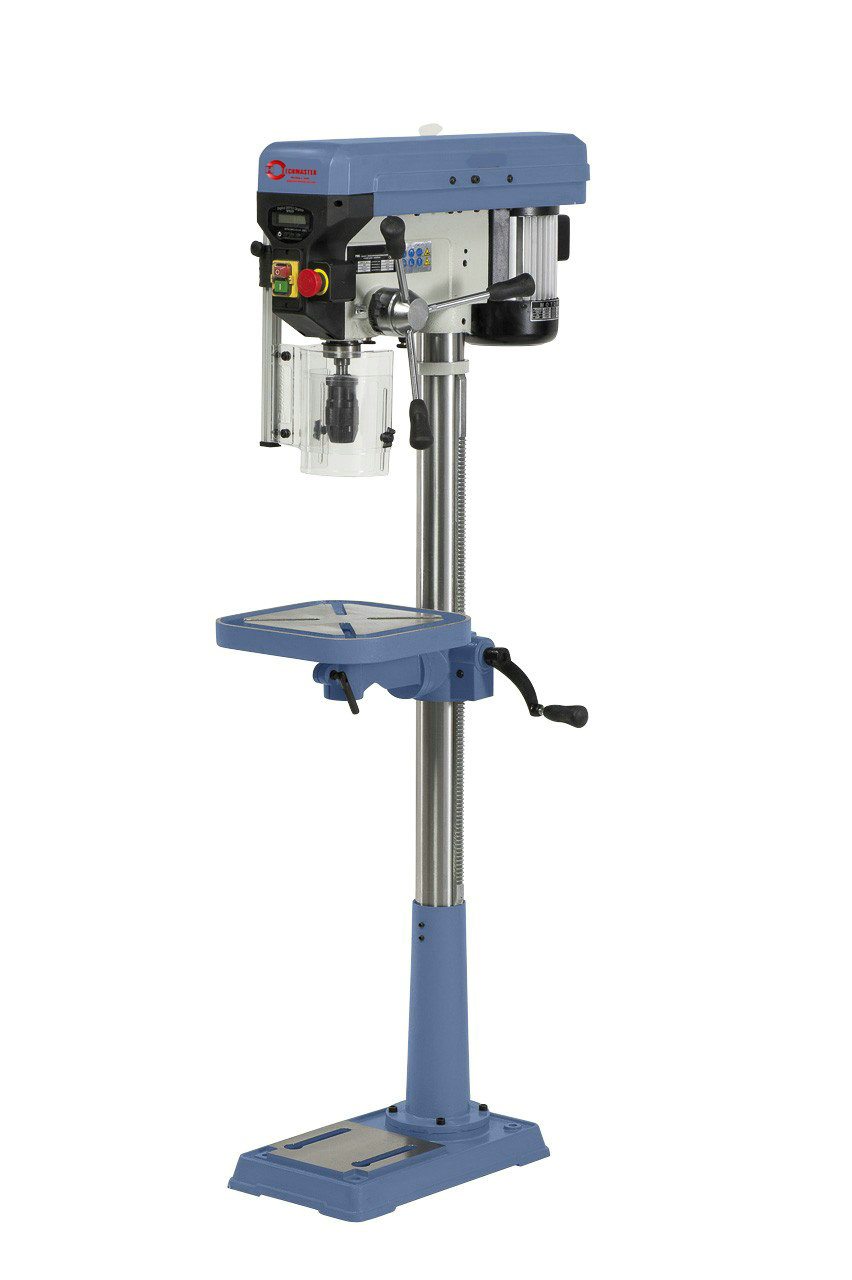

VARIABLE DRILL PRESS ZJ4120X SUPER-230V
Quantity: -
属性值
Technische Spezifikationen
Drilling capacity in steel 20 mm Drill chuck 1 - 16 mm / B 18 Morse taper MT 2 Spindle speed, stepless 310 - 1950 rpm Distance spindle to column 180 mm Table tiltable -45° to +45° Distance spindle to table max. 690 mm Distance spindle to base 1170 mm Spindle stroke 80 mm Column diameter 72 mm Table size / T-slot size 305 x 305 mm / 16 mm Working surface of base 205 x 205 mm Motor power output S1 100% 0,90 kW / 230 V Motor power input S6 40% 1,3 kW / 230 V Machine dimension (W x D x H) 420 x 600 x 1560 mm Weight approx. 68 kg Features
· Digital display allows for easy readout of speed or spindle stroke
· Grey cast iron pulleys ensure smooth operation
· Quality ball bearings guarantee high concentricity ≤0.03mm
· Oversize drill table features diagonal T-slots
· Drill table tilts (±45°) height adjustment by gear rack
· Powerful, high performance aluminium motor according to IP 54 standards
· Precise keyless drill chuck as part of standard equipment
· Comes complete with T-slots in polished base plate
· Ergonomic handles ensure high work comfort
Standard accessories:
· Keyless drill chuck 1 - 16 mm / B 18
· Drill chuck arbor MT 2 / B 18
· Digital readout of speed
· Digital spindle stroke indication
· Cross laser device
· T-slot nuts
· Height adjustable protective cover
· Separate emergency stop button
· Tools
