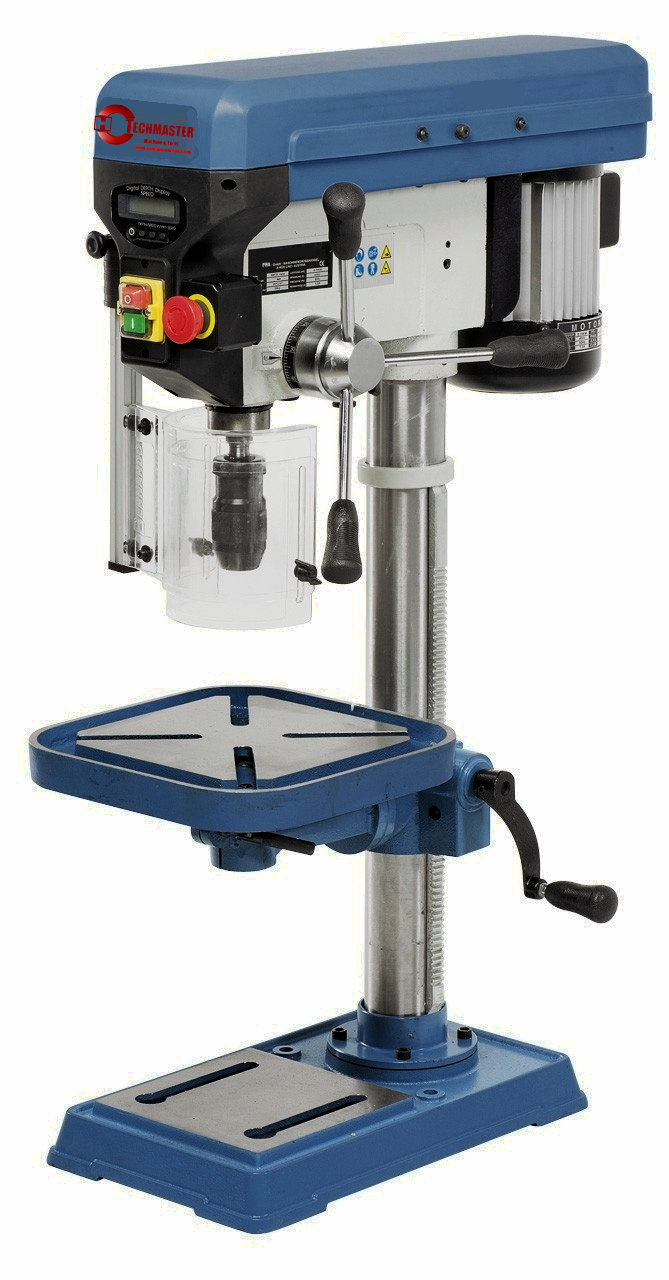

VARIABLE DRILL PRESS
Quantity: The solid drilling machines featuring vario drive are characterized by high torque even at low speed. Most commonly these models are used by amateurs and for training purposes.
Technische Spezifikationen
Drilling capacity in steel 20 mm Drill chuck 1 - 16 mm / B 18 Morse taper MT 2 Spindle speed, stepless 310 - 1950 rpm Distance spindle to column 180 mm Table tiltable -45° to +45° Distance spindle to table max. 415 mm Distance spindle to base 605 mm Spindle stroke 80 mm Column diameter 72 mm Table size / T-slot size 305 x 305 mm / 16 mm Working surface of base 205 x 205 mm Motor power output S1 1 100% 0,75 kW / 400 V Motor power input S6 40% 1,1 kW / 400 V Machine dimension (W x D x H) 400 x 630 x 990 mm Weight approx. 57 kg Features
· Digital display allows easy readout of set speed or spindle stroke
· Grey cast iron pulley ensures smooth operation
· High-quality ball bearings guarantee high concentricity ≤0,03 mm
· Large drill table features diagonal T-slots
· Rotation switch for right and left turn
· Drill table tilts (±45°) – gear rack allows height adjustment
· Powerful, high performance aluminium motor in accordance with IP 54 standards
· Precise keyless drill chuck comes as part of the standard accessories
· Complete with T-slots in polished base plate
· Ergonomically designed handles maximises work comfort
Standard accessories:
· Keyless drill chuck 1 – 16 mm / B 18
· Drill chuck arbor MT 2 / B 18
· Digital spindle stroke indication
· Digital readout of speed
· Cross line laser device
· Left and right turning
· T-slot nuts
· Height adjustable protective cover
· Separate emergency stop switch
· Tools
The solid drilling machines featuring vario drive are characterized by high torque even at low speed. Most commonly these models are used by amateurs and for training purposes.
Technische Spezifikationen
Drilling capacity in steel 20 mm Drill chuck 1 - 16 mm / B 18 Morse taper MT 2 Spindle speed, stepless 310 - 1950 rpm Distance spindle to column 180 mm Table tiltable -45° to +45° Distance spindle to table max. 415 mm Distance spindle to base 605 mm Spindle stroke 80 mm Column diameter 72 mm Table size / T-slot size 305 x 305 mm / 16 mm Working surface of base 205 x 205 mm Motor power output S1 1 100% 0,75 kW / 400 V Motor power input S6 40% 1,1 kW / 400 V Machine dimension (W x D x H) 400 x 630 x 990 mm Weight approx. 57 kg Features
· Digital display allows easy readout of set speed or spindle stroke
· Grey cast iron pulley ensures smooth operation
· High-quality ball bearings guarantee high concentricity ≤0,03 mm
· Large drill table features diagonal T-slots
· Rotation switch for right and left turn
· Drill table tilts (±45°) – gear rack allows height adjustment
· Powerful, high performance aluminium motor in accordance with IP 54 standards
· Precise keyless drill chuck comes as part of the standard accessories
· Complete with T-slots in polished base plate
· Ergonomically designed handles maximises work comfort
Standard accessories:
· Keyless drill chuck 1 – 16 mm / B 18
· Drill chuck arbor MT 2 / B 18
· Digital spindle stroke indication
· Digital readout of speed
· Cross line laser device
· Left and right turning
· T-slot nuts
· Height adjustable protective cover
· Separate emergency stop switch
· Tools
