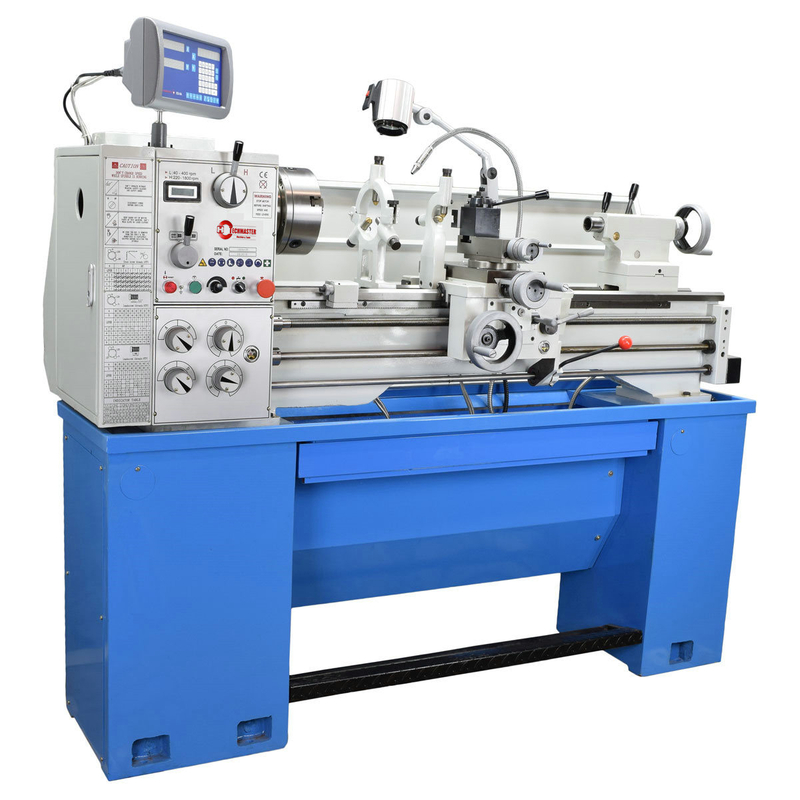

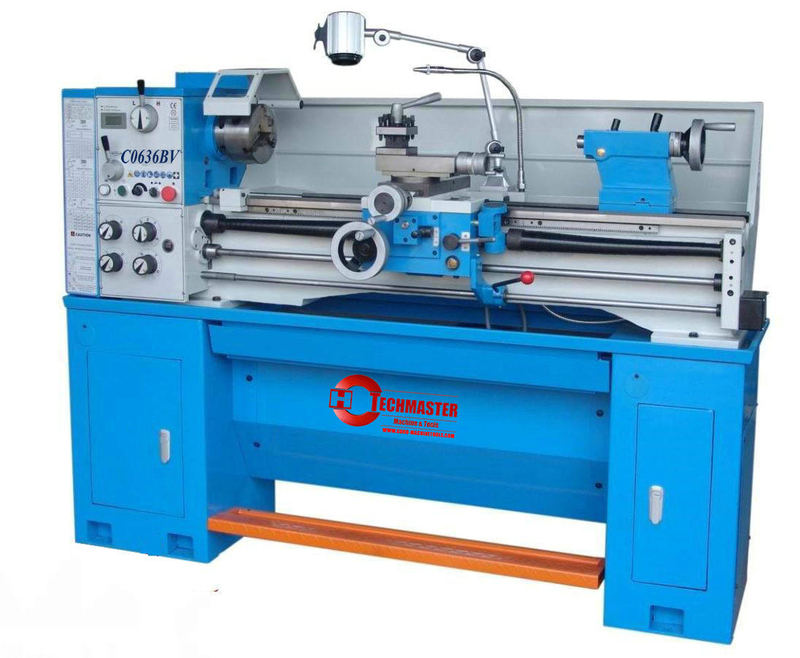

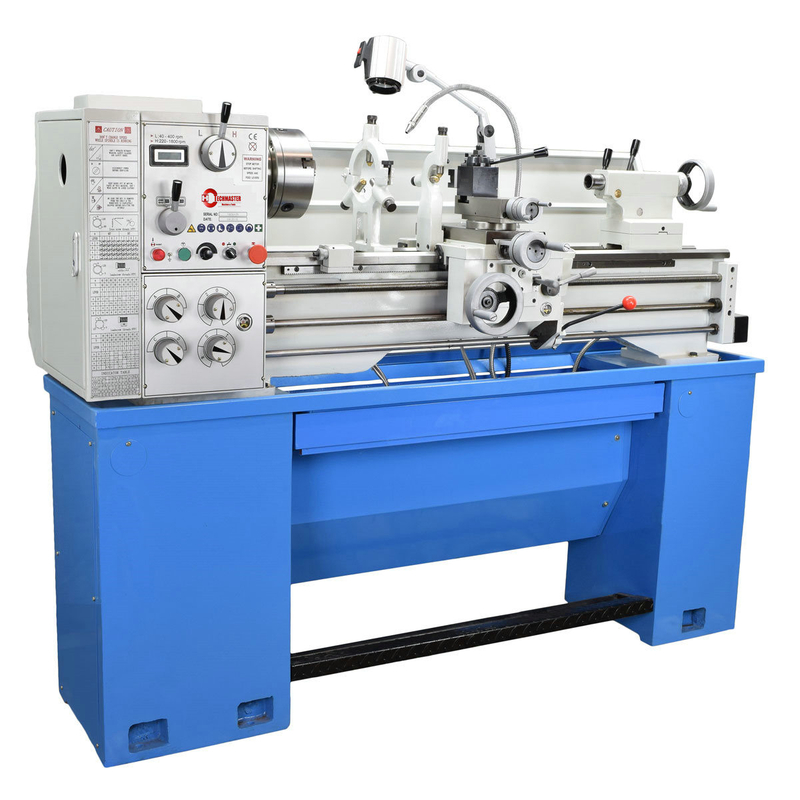

C0636BV X1000
| MODEL | C0636BV |
| Specifications | |
Distance between centers | 750 / 1000 mm |
Swing over bed | 330 mm |
Swing over gap | 450 mm |
Swing over cross slide | 198 mm |
Bed width | 187 mm |
Taper of spindle bore | MT6 |
Spindle nose | D1- 5 |
Spindle bore | 52 mm |
Step of spindle speeds | Variable |
Range of spindle speeds | 70~2000 rpm |
Range of cross feeds | 0.022~0.298 mm/r |
Range of longitudinal feeds | 0.078~1.044 mm/r |
Range of inch threads | 2~/14 ~ 40 T.P.I |
Range of metric threads | 0.45~10 mm |
Top slide travel | 76 mm |
Cross slide travel | 175 mm |
Tailstock quill travel | 92 mm |
Taper of tailstock quill | MT4 |
Motor | 1.5 kw |
Packing size | 1690/1940 x 760 x 1520 mm |
Net weight | 580 kg |
