VARIABLE SPEED BIG SPINDLE LATHE C0636DV/1000
You are here: Home » Products » TURNING » PROFESSIONAL ENGINE LATHE » VARIABLE SPEED BIG SPINDLE LATHE C0636DV/1000
Share to:

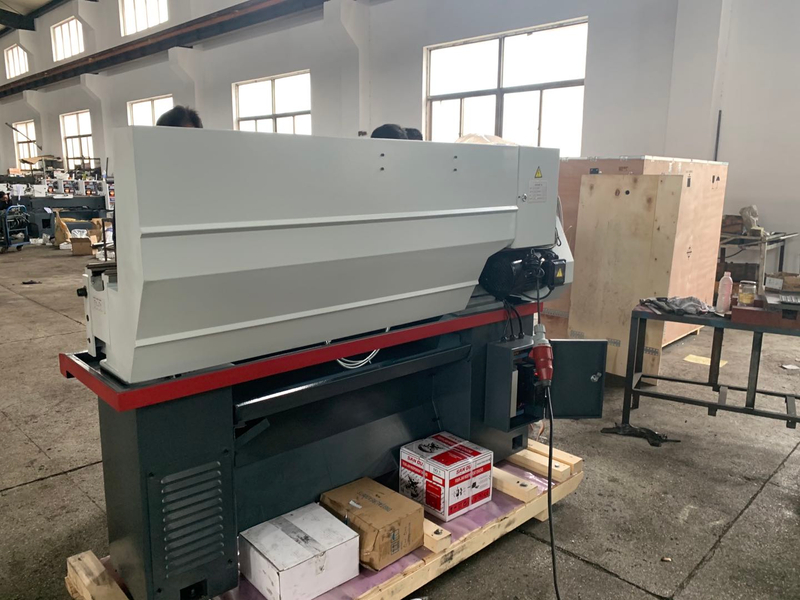

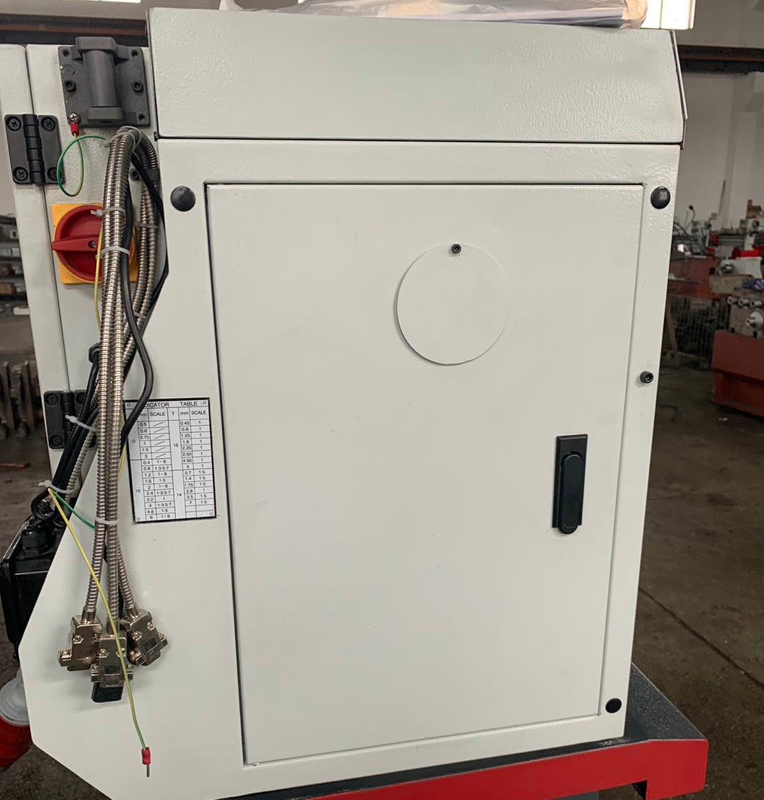

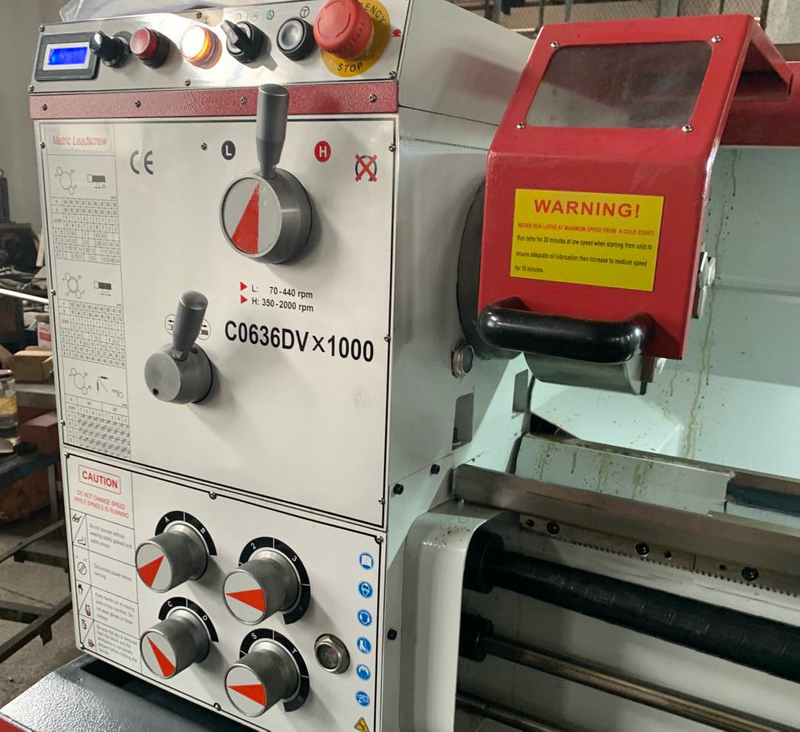

VARIABLE SPEED BIG SPINDLE LATHE C0636DV/1000

Quantity:
  • C0636BV X1000
MODEL  C0636DV
 Specifications
 Distance between centers
1000 mm
 Swing over bed
360 mm
 Swing over gap
450 mm
 Swing over cross slide
198 mm
 Bed width
187 mm
 Taper of spindle bore
MT6
 Spindle nose
D1- 5
 Spindle bore
52 mm

 Step of spindle speeds

Variable
 Range of spindle speeds
70~2000 rpm
 Range of cross feeds
0.022~0.298 mm/r
 Range of longitudinal feeds
0.078~1.044 mm/r
 Range of inch threads
2~/14 ~ 40 T.P.I
 Range of metric threads
0.45~10 mm
 Top slide travel
76 mm
 Cross slide travel
175 mm
 Tailstock quill travel
92 mm
 Taper of tailstock quill
MT4
 Motor
1.5 kw
 Packing size

1690/1940 x 760 x 1520 mm

 Net weight
580 kg
