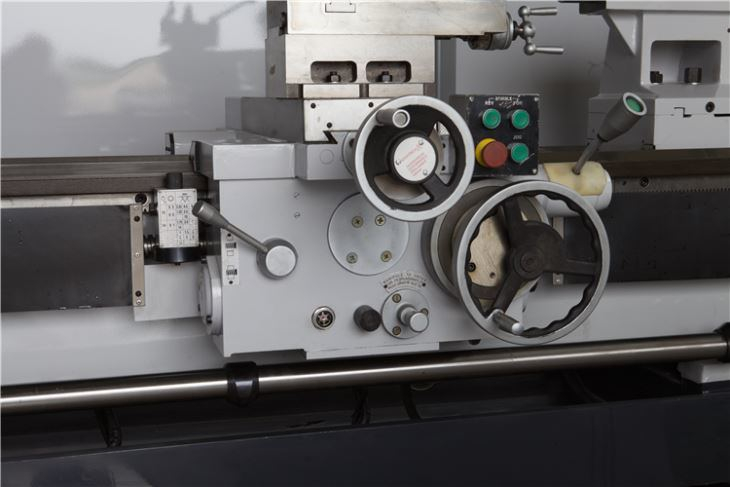

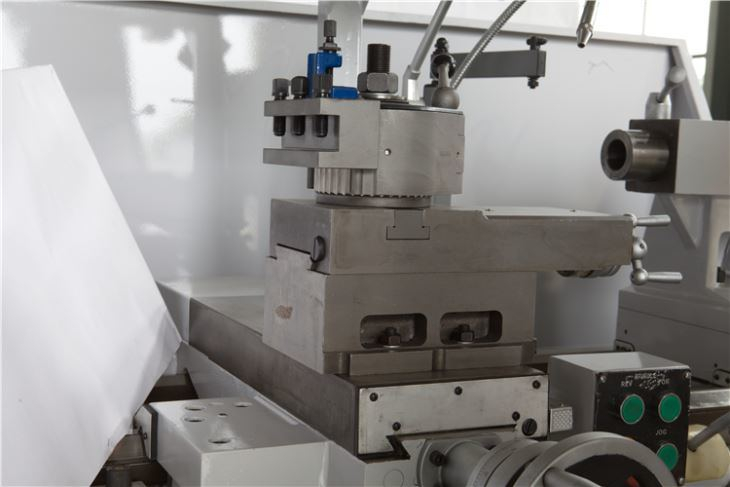

VARIABLE SPEED CONVENTIONAL LATHE C6266C -EVS SERIES
Quantity: -
C6266C- EVS
Product characteristics of New Lathe
PRODUCT FEATURES:
The surface of the bedways is supersonic frequency.
The spindle bore size is 105mm. The spindle system is high in rigitidy and accuracy.
There is no need for change gear. The machine can turn about 89 kind of metric, Inch, Module, D. P. Threads.
An automatic stopping device is used to realize automatic stop for the machining of a wordplece of a certain length.
Standard accessories:

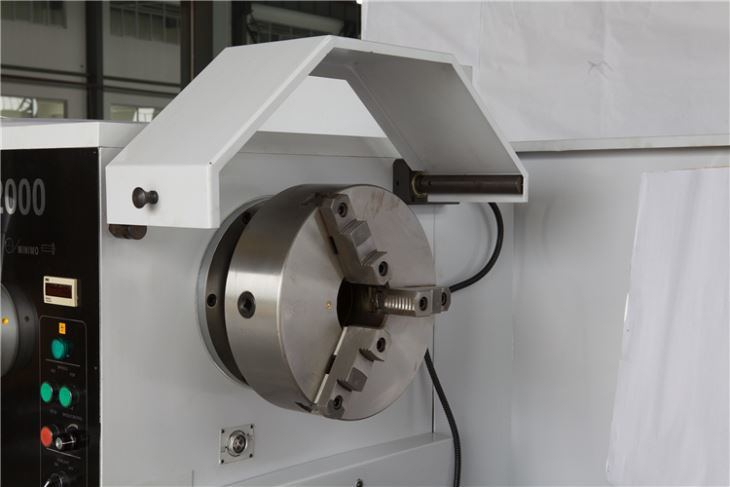

ø 325 3jaw chuck
Face Plate
Morse reduction ø113 1: 20/ M. T. NO. /5
Centers M. T. NO. 5
Wenches
Operation manual
Optional extra charge:
ø400 4jaw chuck
ø250 Drive plate
Follow rest
Steady restITEMS C62666C EVS
C6266C-EVS/1000
C6266C-EVS/1500
C6266C-EVS/2000
C6266C-EVS /3000
Center height 330mm Max.swing over bed 660mm Over carriage 420mm Over gap 870mm Max. length of workpiece 1000
1500
2000
3000Bed width 405mm Spindle nose D8 Spindle bore 105mm Taper of bore 113mm Spindle speed 23-150 150-433 433-1300rpm Steps of speeds 3(stepless) Dia. of tailstock sleeve 75mm Taper of tailstock sleeve MT5 Longitudinal range of feeds 0.063-2.52mm/r 65 Cross 0.027-1.07mm/r 65 Metric threads 1-14mm 22 Imperial threads 28-2 T.P.I 26 D.P.Range/No. 56-4D.P 24 Module range/No. 0.5-7M.P. 18 Top slide travel 145mm Cross slide travel 360mm Tool shank size 25*25mm Power of main motor 7.5kw Overall dimensions(L*W*H) 2500/3000/3500/4500*1100*1450mm Net weight 3000/3200/3400/3900kg
