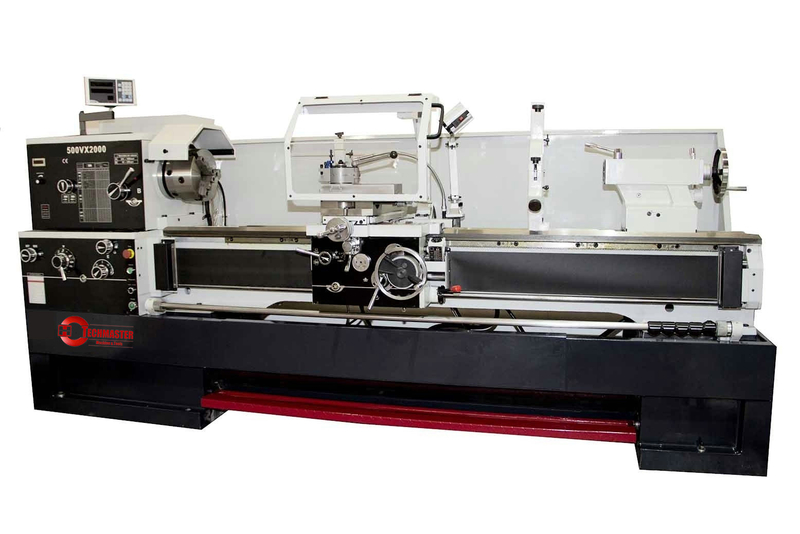

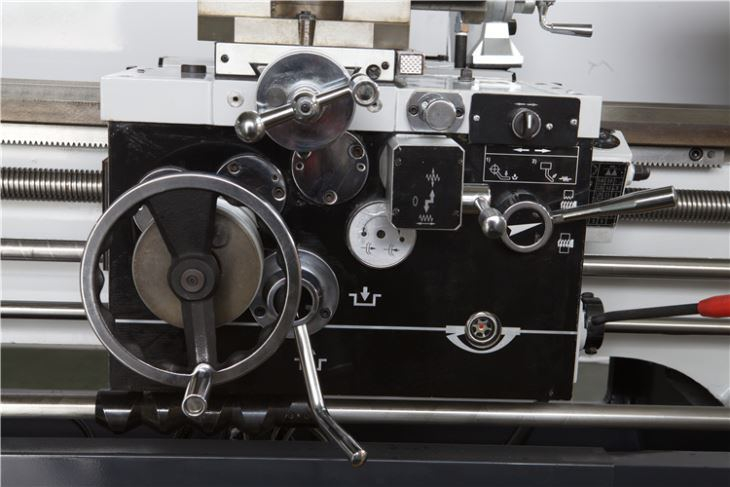

VARIABLE SPEED CONVENTIONAL LATHE ZX EVS SERIES
Quantity: -
C6240ZX- EVS / C6246ZX -EVS
Product characteristics of New Lathe
NO.
MAKER
Model Spec.
C6236ZX EVS
C6240ZX EVS
C6246ZX EVS
GH-1440ZX
GH-1460ZX
GH-1640ZX
GH-1660ZX
GH-1840ZX
GH-1860ZX
GH-1880ZX
1
CENTER HEIGHT
mm
180
200
230
2
CENTER DISTANCE
mm
1000
1500
1000
1500
1000
1500
2000
3
SWING OVER BED
mm
360
400
460
4
SWING OVER CARRIAGE
mm
200
250
290
5
SWING OVER GAP
mm
600
660
700
7
BED WIDTH
mm
336
336
336
8
SPINDLE NOSE
D8
D8
D8
9
SPINDLE BORE
mm
Φ80
Φ80
Φ80
10
SPINDLE TAPER
MT7
MT7
MT7
11
SPINDLE SPEED
rpm
40-400
200-2000r/min
40-400
200-2000r/min
40-400
200-2000r/min
12
SPINDLE SPEED STEP
mm
2(stepless)
2(stepless)
2(stepless)
13
DIA. OF TAILSTOCK SLEEVE
mm
Ø75
Ø75
Ø75
14
TAPER OF TAILSTOCK SLEEVE
mm
MT4
MT4
MT5
15
LONGITUDINAL FEED
mm
0.04-2.46mm/r
0.04-2.46mm/r
0.04-2.46mm/r
16
CROSS FEEDS
mm
0.02-1.23mm/r
0.02-1.23mm/r
0.02-1.23mm/r
7
METRIC THREADS
0.5-20MM, 24 KINDS
0.5-20MM, 24 KINDS
0.5-20MM, 24 KINDS
18
IMPERIAL THREADS
72-1-5/8t.p.i/61 KINDS
72-1-5/8t.p.i/61 KINDS
72-1-5/8t.p.i/61 KINDS
19
D.P. Range/No.
96-3 1/4 D.P/45
96-3 1/4 D.P/45
96-3 1/4 D.P/45
20
Module range/No.
0.25-10 M.P/20
0.25-10 M.P/20
0.25-10 M.P/20
21
TOP SLIDE TRAVEL
mm
100
100
100
22
CROSS SLIDE TRAVEL
mm
280
280
280
23
TOOL SHANK SIZE
mm
25 X 25
25 X 25
25 X 25
24
MAIN MOTOR
kw
7.5KW
7.5KW
7.5KW
25
MACHINE WEIGHT (N.W.)
kg
2250
2550
2300
2600
2350
2650
2900
Note:
1. Machine pictures just for reference,final structure are according to customers requirement!
2. Chuck cover, leadscrew cover, toolpost cover,QCT,DRO are optional
3. Above specifications given herein are subject to alteration without notice and thus without any obligation.
