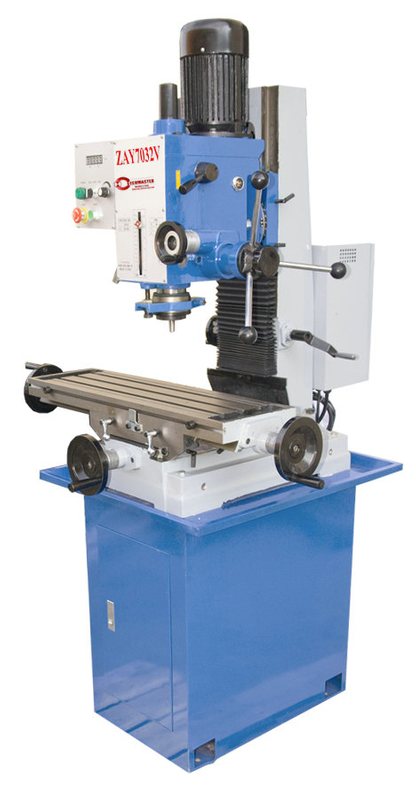

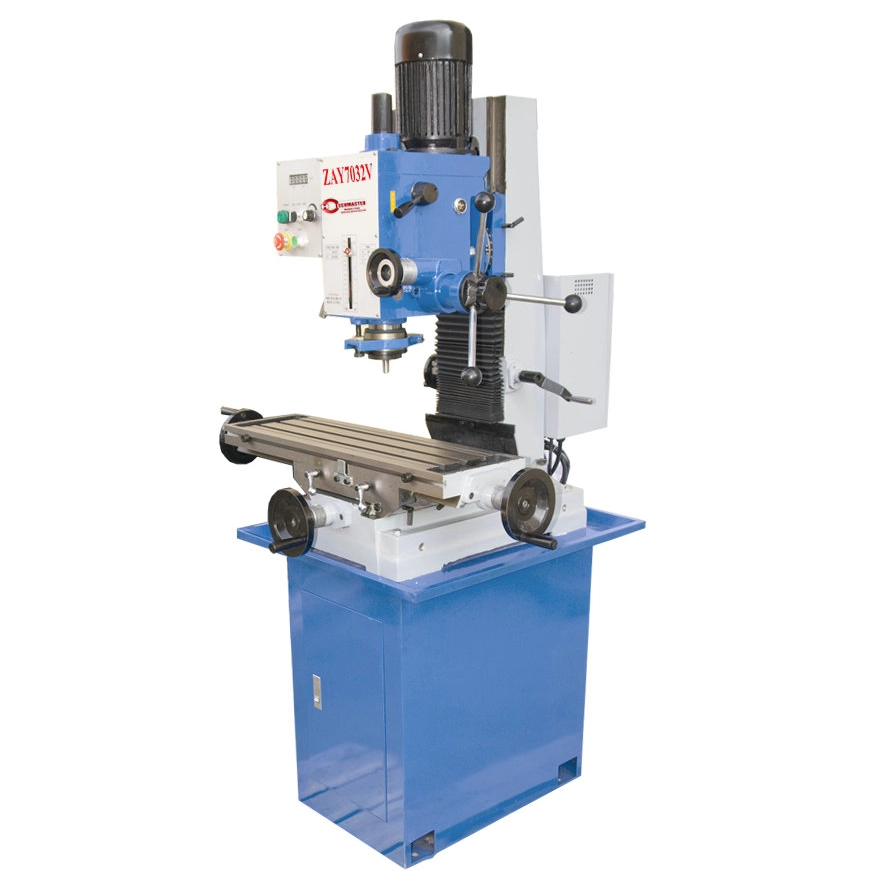

VARIABLE SPEED DRILLING AND MILLING MACHINE ZA7032V
Quantity: -
ZAY7032V
drilling- and milling maschine with 90° pivoting gear head and variable speed, for the industrial need.
Technical data:
Spindle cone MT 3
Motor output power S1 1,1 kW, 400 V
Weight 300 Kg
Table dimensions 800 x 240 mm
max. workpiece height 400 mm
Speeds 100-530 und 530-2600 rpm
Max. drilling capacity in steel 32 mm
Worktable travel x=500mm, Y= 175 mm
Optional equipment:
Underframe with coolant tankdrilling- and milling maschine with 90° pivoting gear head and variable speed, for the industrial need.
Technical data:
Spindle cone MT 3
Motor output power S1 1,1 kW, 400 V
Weight 300 Kg
Table dimensions 800 x 240 mm
max. workpiece height 400 mm
Speeds 100-530 und 530-2600 rpm
Max. drilling capacity in steel 32 mm
Worktable travel x=500mm, Y= 175 mm
Optional equipment:
Underframe with coolant tank
