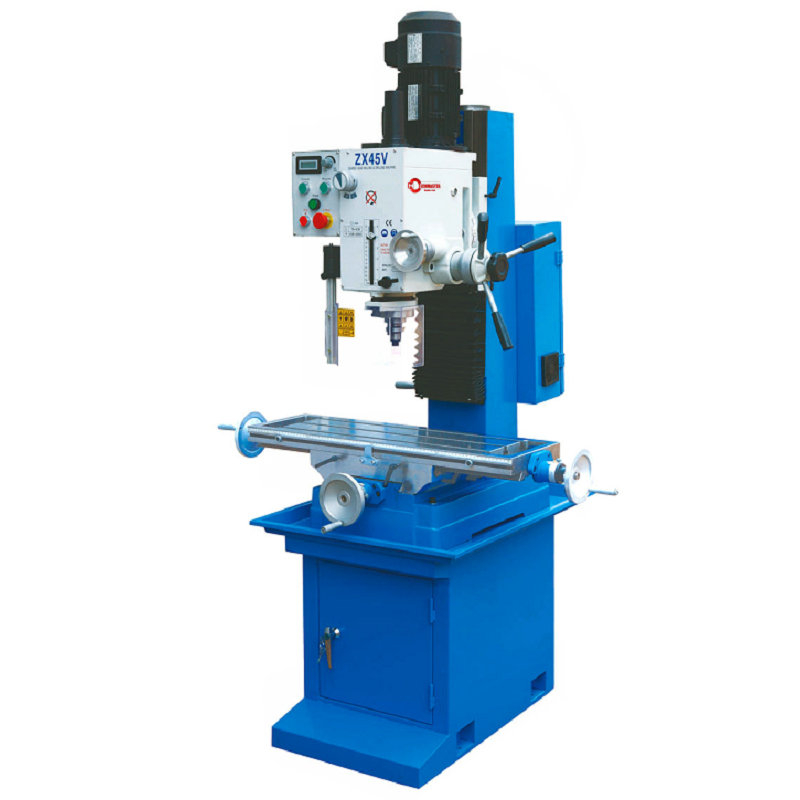

ZX45V
Feature
Milling, drilling, tapping, boring, reamingHead swivels feed ±90° vertically
Largely dimensioned tableSpindle micro feed (Auto-feed optional )
Heavy-duty tapered roller bearing spindle Spindle can be locked, headstock power down feed
Adjustable gibs on tableAdjustable stops on table
Gear drive headstock , frequency conversion motor
Accurate position, good rigidity, big cutting power
Technical Parameter
Model | ZX45V FREQUENCY INVETER VARIO MILLING |
Max.drilling capacity(Steel) | 45 mm |
Max.milling capacity(Face milling) | 80 mm |
Max.milling capacity(End milling) | 32 mm |
T-slot size | 14 mm |
Work table size | 800x240 mm |
Working table Cross/longitudinal travel | 190mm/560mm |
Spindle taper | MT4 or ISO30 |
Z-axis travel | 350 mm |
Sleeve travel | 120 mm |
Spindle speed | 75-438rpm, 438-2500rpm |
Max. distance spindle to table | 460 mm |
Max.swing of headstock | ±45° |
Motor power | 1.5 kw / 5-100hz |
Weight | 395 kgs |
Packing size | 1240x930x2100 mm |
Standard accessories | |
| 1、Draw bra | 2、Adapter |
| 3、Taper shank for drilling chuck | 4、Drilling chuck |
| 5、T slot bolt | 6、Washer |
| 7、Nut | 8、Tilted wedge |
| 9、Spanner | 10、Oil gun |
| 11、Instruction Manual | 12、Certificate of inspection |
| 13、Pacjing list | |
Optional accessories | |
| 1、Spindle box automatic lifting | 2、Spindle power feed |
| 3、Table power feed (X-axis) | 4、Halogen working lamp |
| 5、Stand(casting) | 6、Stand(Steel plate) |
| 7、Cooling pump | 8、Power off protective cover(CE) |
| 9、Tapping function | 10、Digital display(Three axis) |
| 11、Double speed motor | 12、Electronic depth display |
