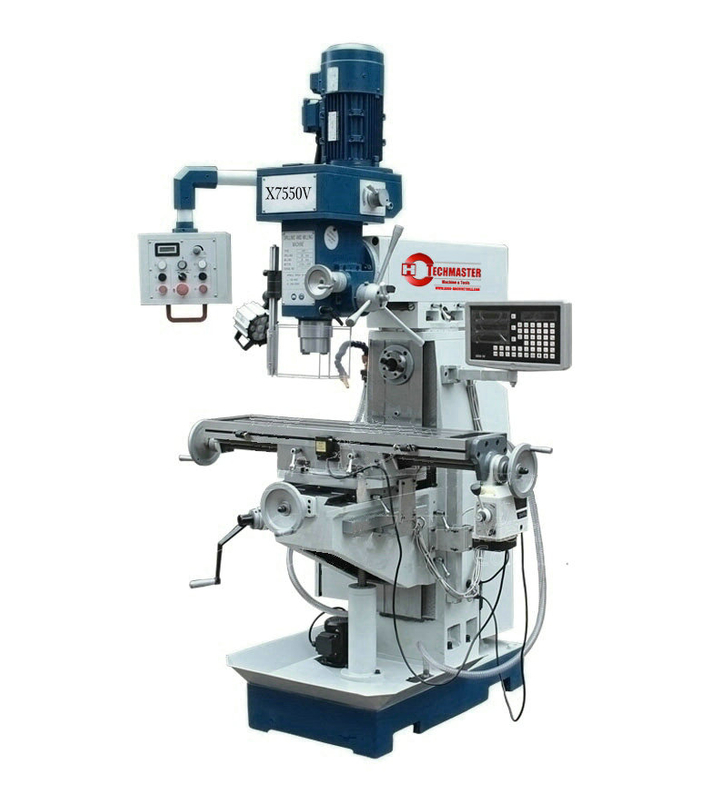

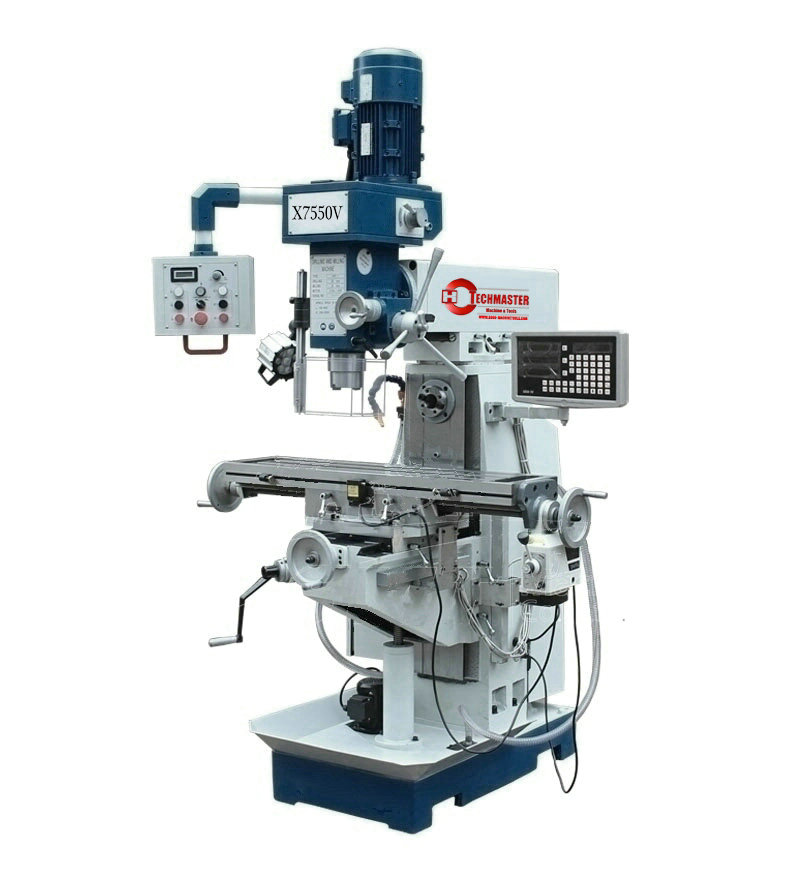

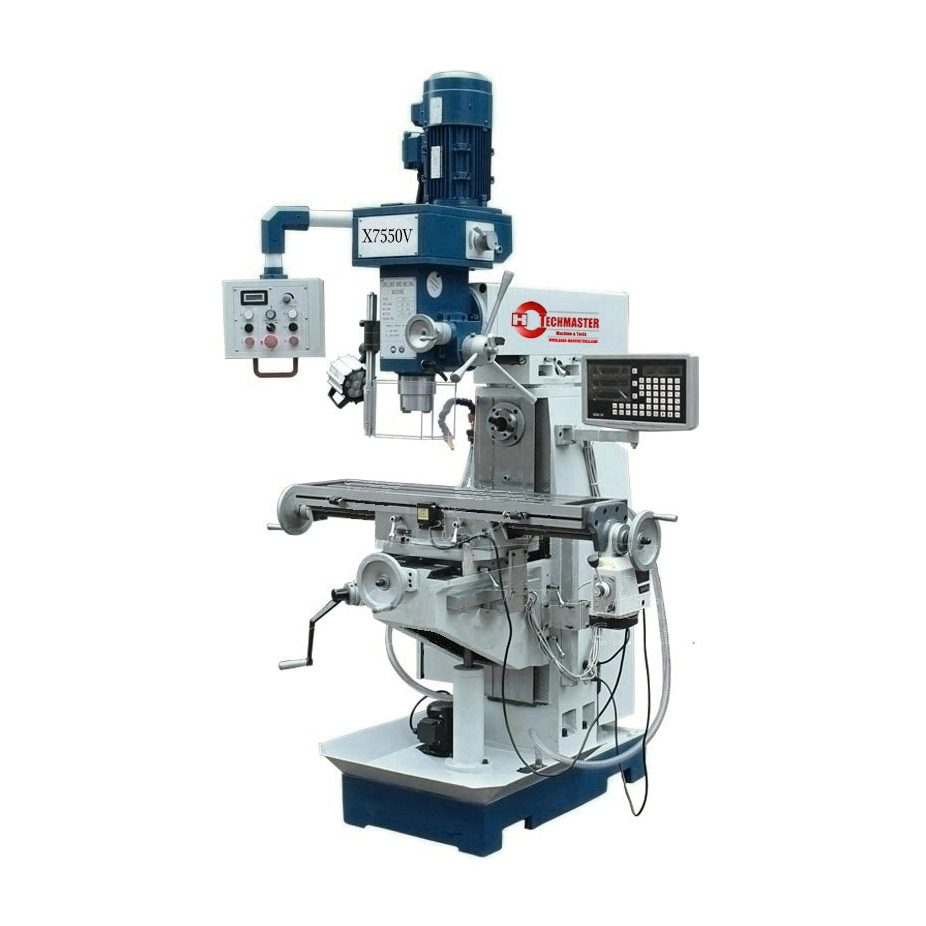

VARIABLE SPEED MILLING MACHINE

Quantity:
Feature:
• Precision variable speed universal milling machine by inverter
• Two gear steps ensure high torque at low speeds
• The spindle speed is displayed directly on the control panel
• Precision grinding hardened slides ensures long life use
• Milling head tilts to both sides for angular boring, milling
• Large precision hardened work table swivels -45° to +45°
• 2.2KW powerful frequency motor for vertical milling
• Accurate hardened gears and shafts for quiet operation
• Arm controlling station and safety chuck guard as standard
• Mechanical and electronic power feed for X-axis is available

Standard accessories:
• Work lamp
• Speed display
• Coolant system
• Power feed for X-axis
• Swivel working table
• Arm controlling station
• Safety chuck guard
• Oil tray
• Tools & toolbox
Optional accessories:
• QG-5” machine vice
• Digital readout
• 58pcs clamping kits/M14
• Rotary table/HV-8”
• ER mill chuck set
• Power feed for Y-axis

Model No.<o:p>

X7550V

 Drilling capacity<o:p>

50mm

 End milling capacity<o:p>

25mm

Table size/T-slot size<o:p>

1000x240mm/14mm

Cross travel<o:p>

220mm

Longitudinal travel<o:p>

585mm

Vertical travel<o:p>

300mm

Spindle taper<o:p>

ISO 40

Spindle stroke<o:p>

120mm

Spindle speeds (vertical)<o:p>

75-2000rpm (stepless)

Spindle speeds (horizontal)<o:p>

75-2500rpm

 Distance spindle to column<o:p>

250-650mm

 Distance spindle to table<o:p>

70-370mm

Table swivel<o:p>

± 45°

 Feeding rate (mechnical)<o:p>

24-720mm/min(8)

 Motor power(H/V)<o:p>

1.5/2.2kw

Net weight<o:p>

1000kg

Packing size<o:p>

1340x1140x2300mm
