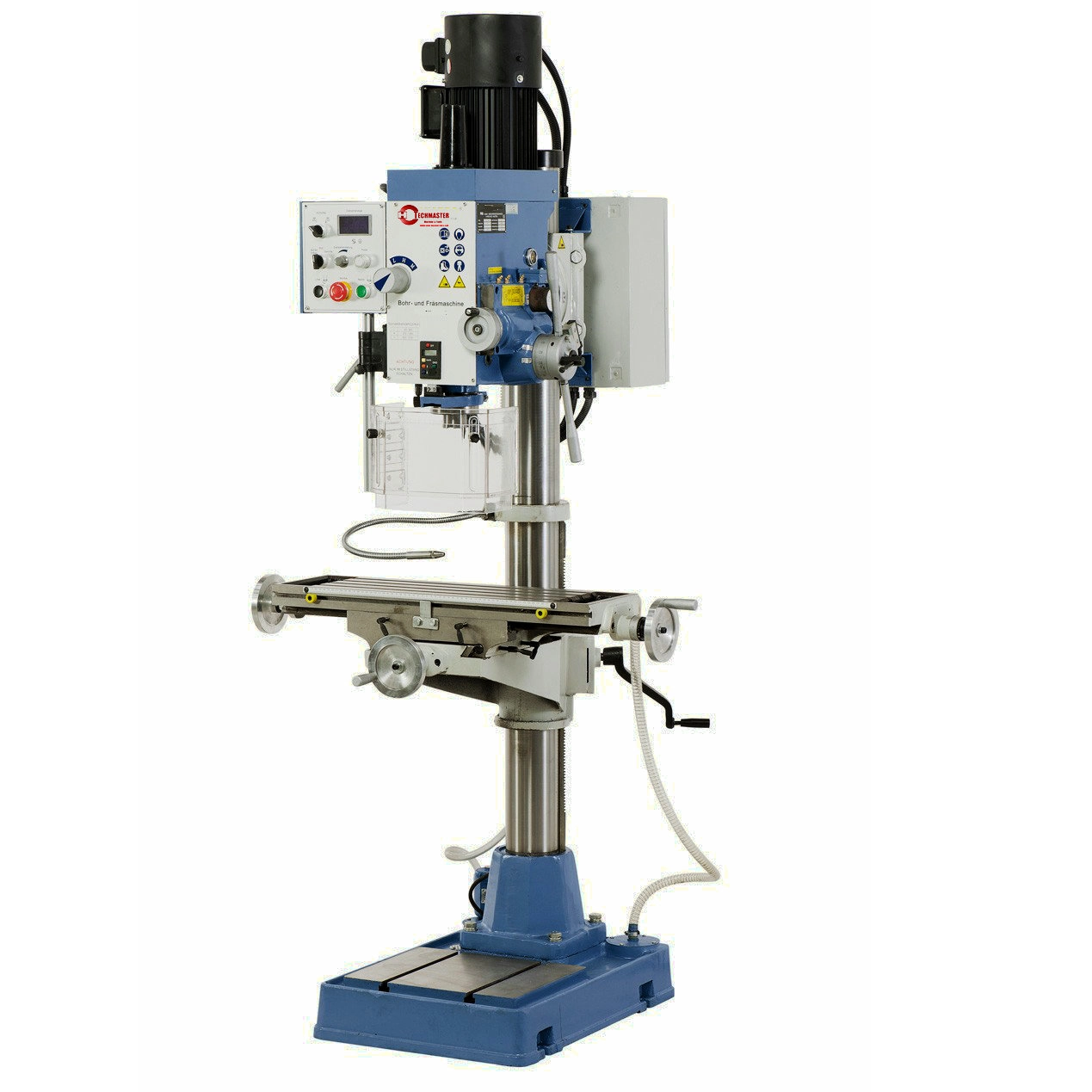

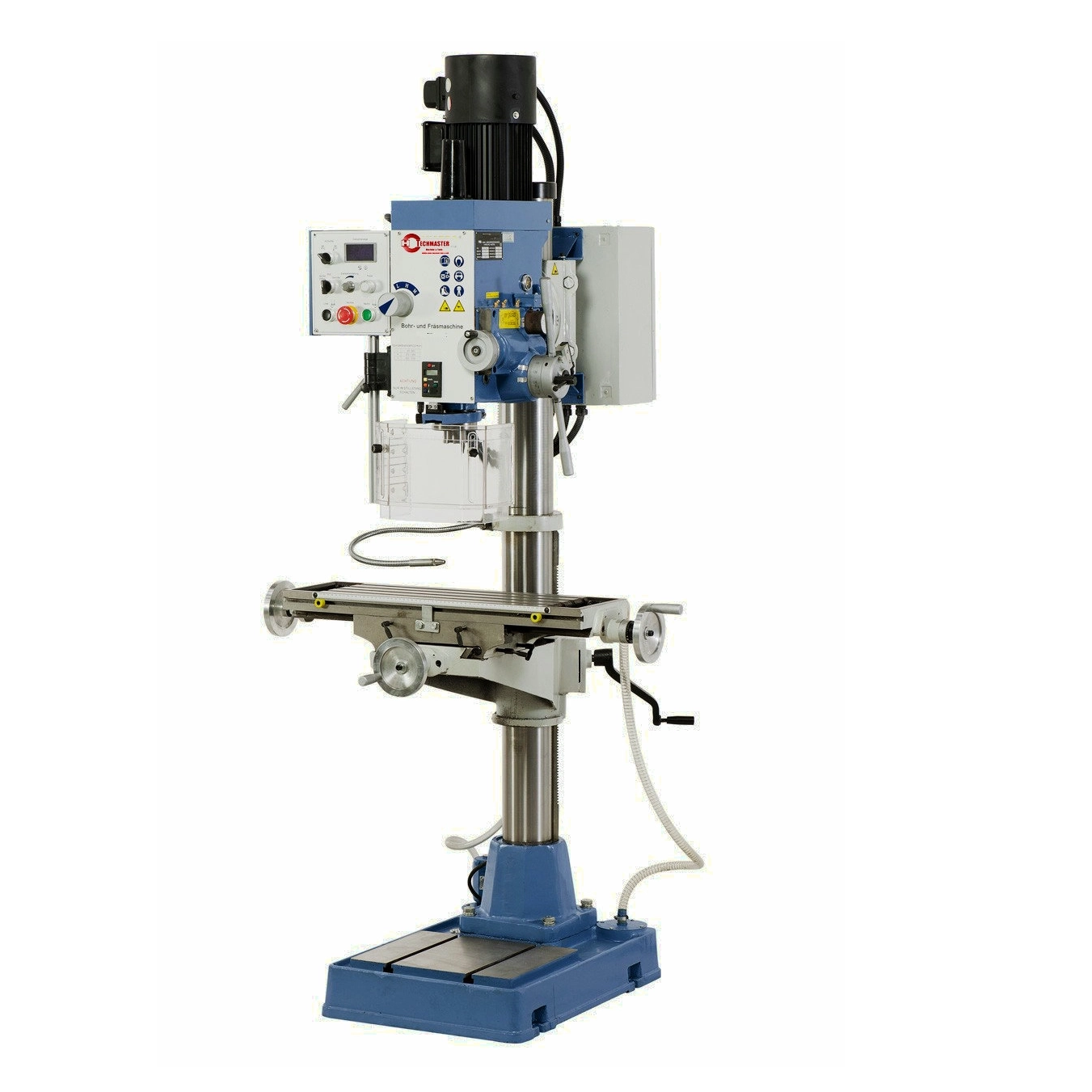

VARIABLE STEPLESS DRILLING AND MILLING MACHINE EUROPE STYLE J-ZX45VHCDL
Quantity: TECHNISCHE SPEZIFIKATIONEN
Drilling capacity in steel
32 mm
Drilling capacity in cast iron
40 mm
Distance spindle to column
275 mm
Spindle speeds
12 - 600 / 270 - 1350 / 620 - 3100 rpm
Spindle taper
MT 4
Spindle stroke
125 mm
Spindle feed
0,12 / 0,19 / 0,26 mm/rev.
Table size
730 x 210 mm
T-slot size
14 mm
Distance spindle to table max.
720 mm
Distance spindle to base plate max.
1250 mm
Travel (x / y)
500 / 180 mm
Height adjustment of mill head
420 mm
Column diameter
115 mm
Base plate
400 x 315 mm
Motor power output S1 100%
2,2 kW
Motor power input S6 40%
3,0 kW
Machine dimension (W x D x H)
1050 x 1000 x 2200 mm
Weight approx.
418 kg
FEATURES
- Height adjustable protective cover in accordance to CE standards for increased safety
- Surface treated machine base to mount particularly large workpieces
- Comes complete with automatic spindle feed
- Left and right turning for thread cutting
- Large cross table with T-slots and coolant groove
- Polished gear wheels, in oil bath, allow smooth running
- Delta-frequency inverter ensures variable speed adjustment with optimal torque
Standard accessories:
- Keyless drill chuck 1 - 16 mm / B 18
- Drill chuck arbor MT 4 / B 18
- Morse taper drill sleeve MT 4/3
- Digital spindle stroke indication
- Digital speed indication
- Frequency inverter
- Mill head 80 mm
- Protective cover
- Thread cutting device
- Drawbar M16
- Coolant device
- Tools
