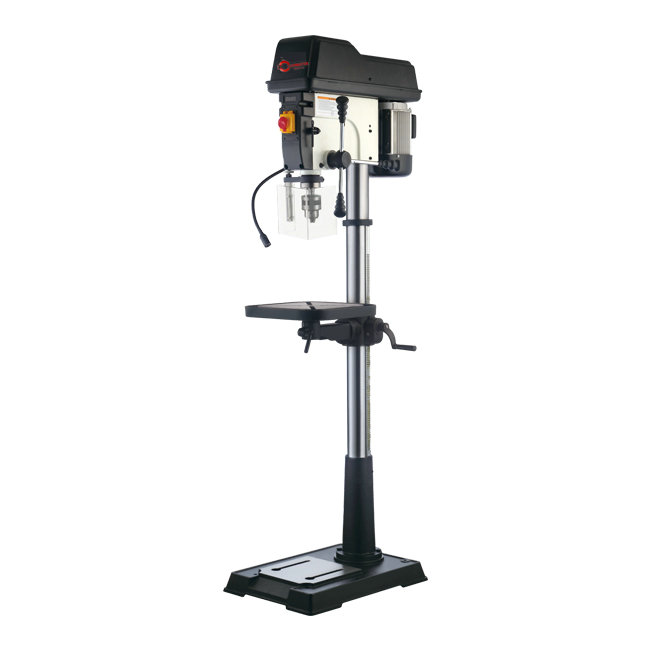

VARIO DRILL PRESS DP43016F-VS

Availability:
Quantity:
Inquire Add to Basket
  • DP43016F-VS
Model/Specification DP20013B DP25016B DP30016B-VS DP33016B DP33016F DP38016B DP38016F DP43016F DP43016F-VS
Drill Capacity(mm) 13 16 16 16 16 20 20 25 16
Swing（mm) 200 250 300 330 330 380 380 430 430
Spindle Taper B16/JT33 MT2 MT2 MT2 MT2 MT2 MT2 MT2 MT2
Speed No. 5 5
12 12 12 12 16
Speed range(rpm 50Hz) 5(500-2500) 5(500-2500) 340-2200 12(180-2740) 12(180-2740) 12(180-2740) 12(180-2740) 16(160-3000) 200-2200
Spindle travel(mm) 50 60 90 80 80 80 80 80 150
Collumn Diameter(mm) 48 59.5 59.5 73 73 73 73 80 80
Rack&pinion NO yes yes yes yes yes yes yes yes
Max distance from spindle to table 220 390 320 470 730 470 730 685 630
Max distance from spindle to base 295 510 490 670 1220 670 1220 1175 1120
Base Size(mm) 280*180 350*215 413*246 450*270 450*270 485*280 485*280 485*280 580*420
Table Size(mm) 165×160 195*196 243*243 254*254/300dia 254*254/300dia 305*305 305*305 356*356 356*356
Table tilt yes -45/45° yes -45/45° yes -45/45° yes -45/45° yes -45/45° yes -45/45° yes -45/45° yes -45/45° yes -45/45°
Motor(w)/S1 300 400 500 600 600 600 600 1100 1100
Height(mm) 580 850 910 1050 1630 1050 1630 1635 1820
NW/GW(kg) 15/17 30/33 43/46 50/52 52/55  55/58 62/64 81/86 90/95
Packing Size(mm) 470*240*350 690*430*260 760*500*280 895*490*290 1430*510*256 895*490*290 1430*510*256 1410*540*250 1530*700*280
Units Per 20' Container 850 400 270 224 160 224 160 144 88
