| Quantity: | |
|---|---|
DESCRIPTION

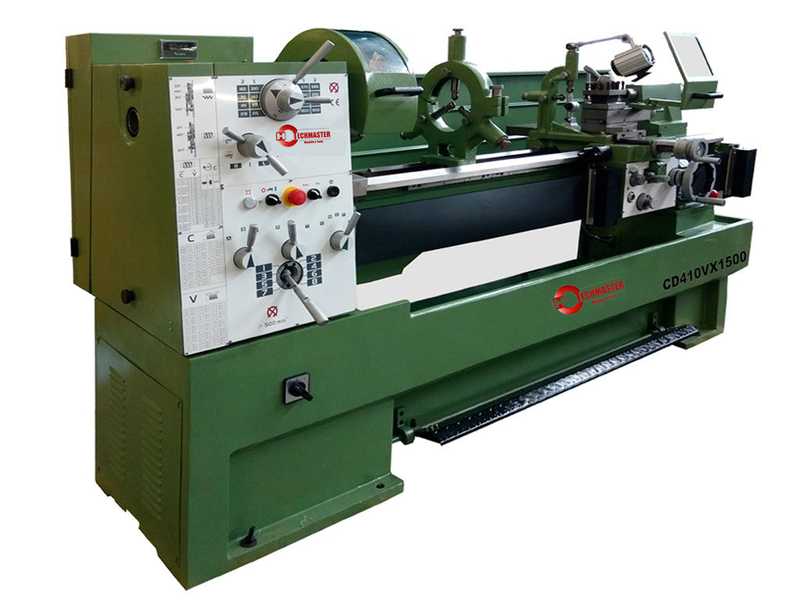

Robust and precise, it can be used in various mechanical workshops for threading and for achieve metal elements of extreme precision. It's equipped with automatic gearbox that allows to quick select the thread that you want to use. It is also equipped with cooling pump with an independent motor and a lamp for direct lighting. Having an automatic shift in all directions it can thread and do many other countless processes. It sold in standard configuration with a chuck three clamps (three internal and three external), a tailstock, the carriage feed, the follow rest and the steady rest, and the kit of service wrenches.
directly to our phone numbers
| Technical data | |
| Weight & Measures | |
| Packing case dimension | 2060 mm (lenght) x 900 mm (width) x 1320 mm (height) |
| Dimensions with stand | 1940 mm (lenght) x 850 mm (width) x 1320 mm (height) |
| Net weight | 1350 Kg |
| Cross weight | 1555 Kg |
| metal lathe capacity | |
| Distance between center | 1500 mm |
| Swing over bed | 410 mm |
| Swing over cross slide | 255 mm |
| Centre height | 205 mm |
| Cutting tool max section | ¾" x ¾" (20 mm x 200 mm) |
| Total travel of cross slide | 8 ½" (210 mm) |
| Headstock | |
| Spindle bore | 2" (52 mm) |
| Spindle speeds range | 45 - 1800 rpm |
| Spindle speeds number | 16 |
| Spindle Nose | D1-6 |
| Spindle morse taper in bore | MT 6 |
| Thread & Feeds | |
| Leadsrew diameter & thread | 28 mm x 6 mm or 4TP |
| Cross feeds imperial | 0.001" - 0.0335" / Rev (17Nos) |
| Cross feeds metric/td> | 0.025 mm - 0.85 mm / Rev (17Nos) |
| Threads Imperial Pitches | 2 - 72 T.P.I. (45 Nos) |
| Threads Metric Pitches | 0.2 - 14 mm (39 Nos) |
| Longitudinal Feeds Imperial | 0.002" - 0.067"/ Rev (17 Nos) |
| Lathe motor | |
| Power | 4.5 Hp |
| Type | Three-phase |
| cooling pump | |
| Power | Double winding of 2.2kW and 3.3kw |
| Type | Three-phase |
| FEED | |
| Longitudnal Feed | Automatic in both direction |
| Cross Feed | Automatic in both direction |
