Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Spindle speed range 80-1600rpm.
Easy operating gear box has various feeds and thread cutting function.
With or without cabinet according to requirement.
VARIO SPEED IS AVALIABLE .

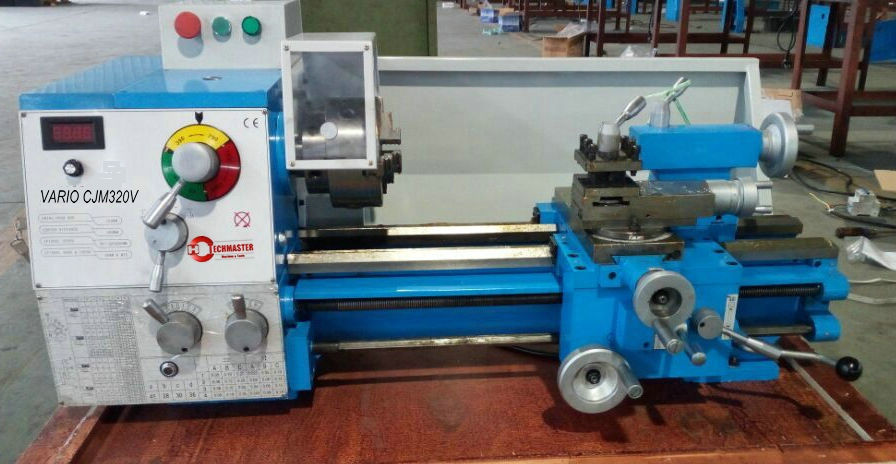

Model | CJM320V VARIO SPEED LATHE | |
Swing over be | 320mm | |
Center distance | 600 mm | 750mm |
Swing over carriage | 200 mm | |
Spindle bore | 38 mm | |
Spindle taper | MT.5# | |
Swing over toolpost | 160 mm | |
Longitudinal travel over toolpost | 100 mm | |
Metric thread available | 21 | |
Metric thread range | 0.20~3.5 mm | |
Inch thread available | 31 | |
Inch thread range | 8-120 1/n″ | |
Module thread available | 16 | |
Module thread range | 0.20~1.75 | |
Pitch thread available | 24 | |
Pitch thread range | 16~120 /DP | |
Longitudinal feed on spindle toolpost | 0.1~1.4 mm/r | |
Cross feed on spindle toolpost | 0.045~0.60 mm/r | |
Tailstock sleeve travel | 80 mm | |
Tailstock sleeve taper | MT.3# | |
Spindle speed step | 8 | |
Spindle speed range | 45-210R/MIN | |
Motor | 110W (220V 50HZ) | |
Packing size | 1250×650×1200 | 1500×650×1200 |
