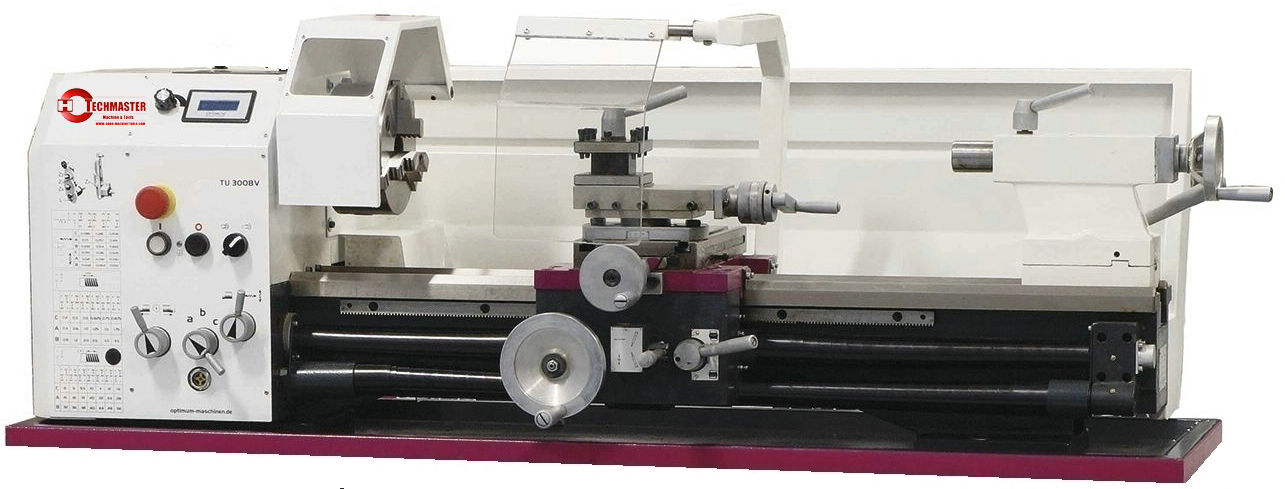

VARIO TU3008V
Quantity:
• Precision variable speed lathe by inverter drive
• Extremely quiet vibration free operation
• 38mm spindle bore,MT4 spindle nose
• 2.2kw powerful frequency motor
• Power cross feed
• Two step pulley unit allow maximum torque at lower speeds
• Spindle speed is from 30 to 3000 rpm
• Quick lockig tailstock with extar locking plate
• Deluxe stand and normal stand as optional for selection
MODEL UNIT TU3008VARIO
SWING OVER BED MM 300MM(11.81’) SWING OVER CROSS SLIDFE MM 180MM(7.09”) ADMITS BETWEEN MM 800(31.50’) CENTER HEIGHT MM 150(5.91’) WIDTH OF BED MM 182(7.17’) SPINDLE BORE MM 38MM(1.50’) SPINDLE TAPER MM MT5 3 JAW CHUCK MM 160MM(6.30’) RANGE OF SPINDEL SPEED RPM 30-3000RPM COUMPUND REST TRAVEL MM 65(2.56’) CROSS SLIDE TRAVEL MM 180(7.09”) MAX SECTION OF TOOL MM 18X18
0.71’X0.71’THREADS OF METRIC PITCHES MM 0.2-3.5MM
0.01”-0.14”THREAD OF IMPERIAL PITCHES MM 8-56TPI QUILL DIAMETER MM 38MM(1.50’) QUILL TRAVEL MM 70(2.76”) QUILL TAPER MM MT3 MAIN MOTOR POWER MM 2.20 OVERALL DIMENSION MM 1420X705X575 PACKING SIZE MM 1500X720X690 N.W/G.W. KG 260/290
