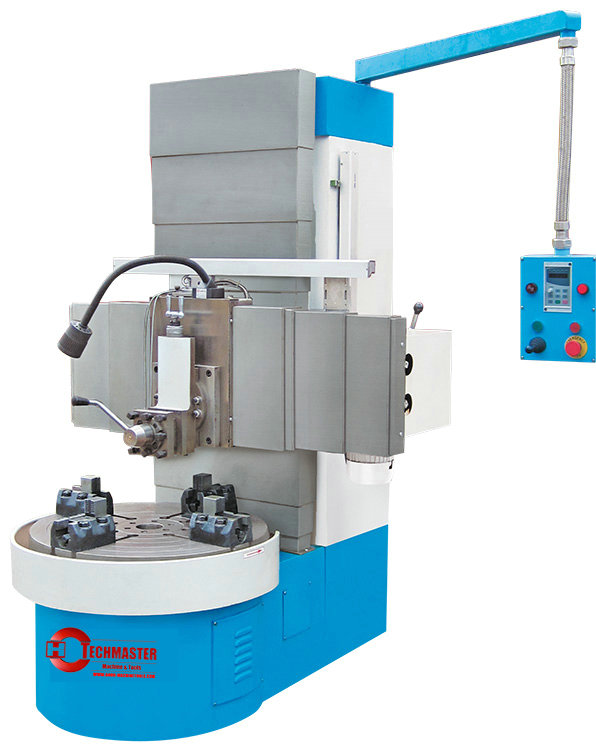

Cost-effective Vertical Lathe for large turning diameters
massive headstock and heavy machine bed with wide boxways ensure maximum rigidity during heavy-duty machining
flat profile of headstock allows easy tooling and unloading of machine
optimized design for easy accessibility via crane and fork-lift
all guideways are protected effectively with solid covers
automatic feed on X and W axis, without thread-cutting
face plate chuck with individually clampable jaws, with a maximum clamping diameter of 800 mm
infinitely variable main spindle drive with powerful 7.5 kW motor and 2-step gears
without CE mark, only for export to countries outside the EU
VDL 800 - Vertical Lathe | |
working area | |
rotating diameter (max.) | 800 mm |
machining height (max.) | 500 mm |
travel X1 axis, upper support | 500 mm |
travel Z1 axis , upper support | 80 mm |
traverse W travel vertical / steps | 500 mm |
swivel range of upper tool holder | 360 ° |
workpiece length (max.) | 600 mm |
workpiece weight (max.) | 600 kg |
headstock | |
speed range | (2) 0 - 160 rpm |
rotary table diameter | 700 mm |
feed | |
feed speed X-axis | 5 - 123 mm/min |
feed W-axis | 5 - 123 mm/min |
tool holder | 20x50 mm |
tool weight max. | 10 kg |
drive capacity | |
motor rating main drive | 7,5 kW |
motor rating X-axis | 0,75 kW |
motor rating Z | 0,75 kW |
measures and weights | |
overall dimensions | 1500x1500x2000 mm |
weight | 1800 kg |
