VERTICAL BAND SAW VB400

Quantity:

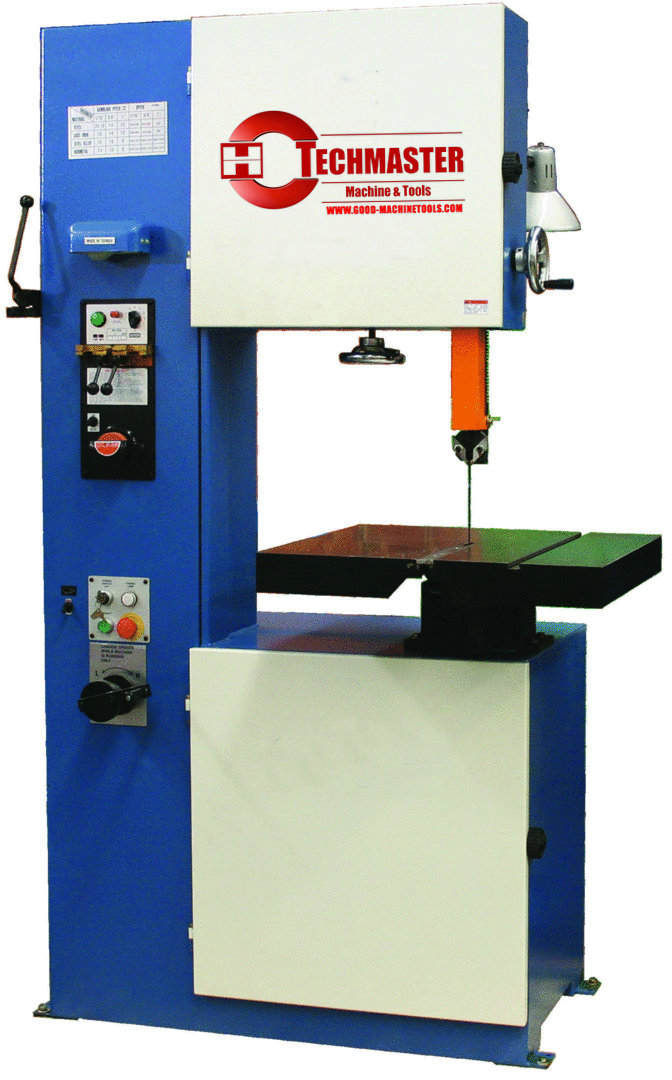

  • VB500

Description
Versatile bandsaws in three capacities allow intricate cutting of aluminum or brass to tool steel. Each bandsaw features a blade welding station which includes a cutter, welder, annealer and a grinder. Ideal for making inside cuts and quick repairs.
Variable speed drive, tilting table, pneumatic swarf blower - wow.

Features
❚torsion proof steel frame construction
❚heavy duty cast-iron tilting table
❚infinitely variable speed operation
❚speed levels are shifted through an oil bath lubricated gear drive
❚deep throat capacity up to 500 mm
❚top and bottom precision blade guides, tungsten carbide tipped
❚top blade guide adjustment via hand wheel
❚blade tensioning and blade travel alignment via hand wheel
❚butt welder with annealing device
❚manual blade shear and grinding wheel
❚pneumatic swarf blower
❚tool box and operation manual
❚CE compliant

Technical Snap Shot
❚Throat Capacity - 500mm
❚Open Height - 330mm
❚Table Size - 615 x 615mm
❚Working Table Height – 1010mm
❚Speeds - 16-96m/min
❚Blade Length - 3840mm
❚Welder Capacity - 3-16mm
❚Motor – 1.5Kw / 415V
❚Weight - 400kg
sku (#) 15-0203
cutting height (max) (mm) 400
throat depth (mm) 500
blade size (l x w x t) (mm) 3840 x 10 0.65
speed range (m/mm) 16 ~ 96
table size (l x w) (mm) 615 x 615
table tilt (deg) 45
table working height (mm) 1010
blade welder (kva) 4.2
grinder motor power (kw) 0.09
motor power (kw/V) 1.5 / 415
dimensions (l x w x h) (mm) 1200 x 800 x 2010
weight (nt) (kg) 500
