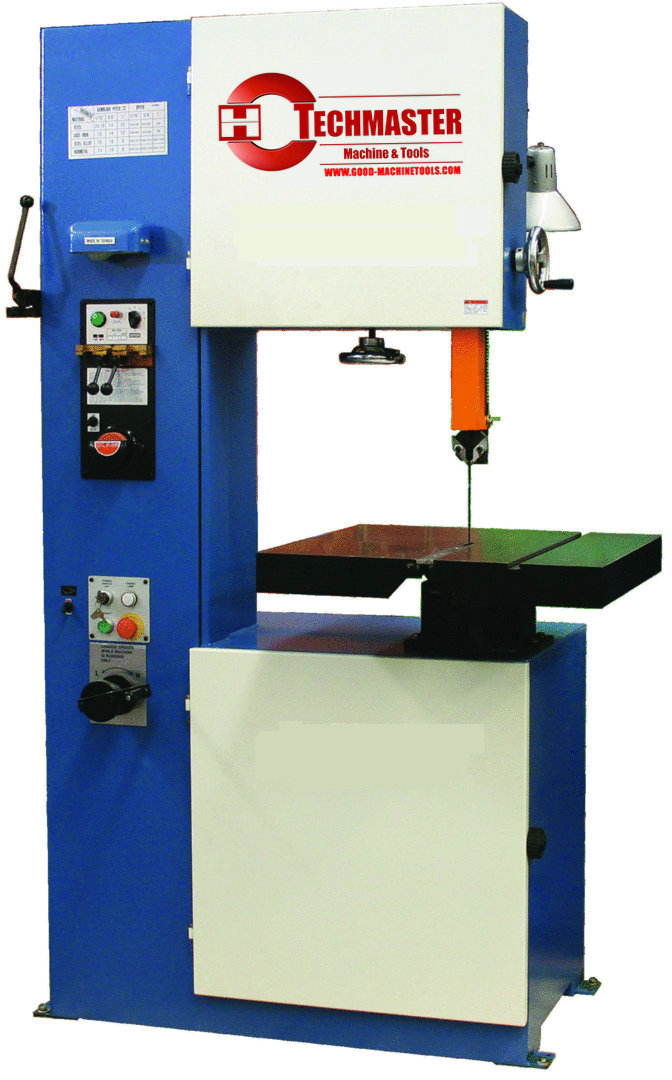

VERTICAL BAND SAW VB400
Quantity: -
VB400
escription
Versatile bandsaws in three capacities allow intricate cutting of aluminum or brass to tool steel. Each bandsaw features a blade welding station which includes a cutter, welder, annealer and a grinder. Ideal for making inside cuts and quick repairs.
Variable speed drive, tilting table, pneumatic swarf blower - wow.
Features
❚torsion proof steel frame construction
❚heavy duty cast-iron tilting table
❚infinitely variable speed operation
❚speed levels are shifted through an oil bath lubricated gear drive
❚deep throat capacity up to 500 mm
❚top and bottom precision blade guides, tungsten carbide tipped
❚top blade guide adjustment via hand wheel
❚blade tensioning and blade travel alignment via hand wheel
❚butt welder with annealing device
❚manual blade shear and grinding wheel
❚pneumatic swarf blower
❚tool box and operation manual
❚CE compliant
sku (#) 15-0202 cutting height (max) (mm) 360 throat depth (mm) 400 blade size (l x w x t) (mm) 3365 x 10 x 0.65 speed range (m/mm) 16 ~ 96 table size (l x w) (mm) 600 x 550 table tilt (deg) 45 table working height (mm) 1000 blade welder (kva) 4.2 grinder motor power (kw) 0.09 motor power (kw/V) 1.5 / 415 dimensions (l x w x h) (mm) 950 x 750 x 1850 weight (nt) (kg) 450
escription
Versatile bandsaws in three capacities allow intricate cutting of aluminum or brass to tool steel. Each bandsaw features a blade welding station which includes a cutter, welder, annealer and a grinder. Ideal for making inside cuts and quick repairs.
Variable speed drive, tilting table, pneumatic swarf blower - wow.
Features
❚torsion proof steel frame construction
❚heavy duty cast-iron tilting table
❚infinitely variable speed operation
❚speed levels are shifted through an oil bath lubricated gear drive
❚deep throat capacity up to 500 mm
❚top and bottom precision blade guides, tungsten carbide tipped
❚top blade guide adjustment via hand wheel
❚blade tensioning and blade travel alignment via hand wheel
❚butt welder with annealing device
❚manual blade shear and grinding wheel
❚pneumatic swarf blower
❚tool box and operation manual
❚CE compliant
sku (#) 15-0202 cutting height (max) (mm) 360 throat depth (mm) 400 blade size (l x w x t) (mm) 3365 x 10 x 0.65 speed range (m/mm) 16 ~ 96 table size (l x w) (mm) 600 x 550 table tilt (deg) 45 table working height (mm) 1000 blade welder (kva) 4.2 grinder motor power (kw) 0.09 motor power (kw/V) 1.5 / 415 dimensions (l x w x h) (mm) 950 x 750 x 1850 weight (nt) (kg) 450
