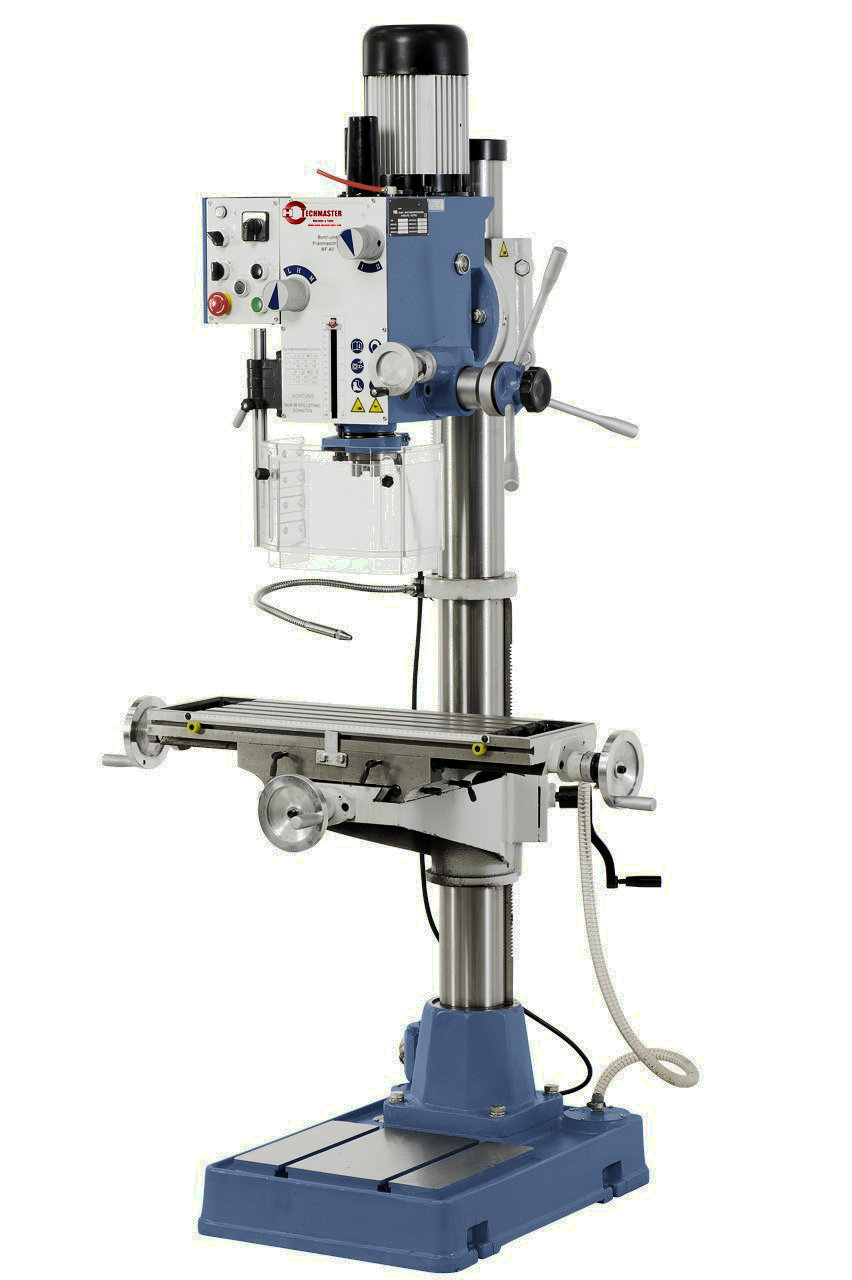

VERTICAL DRILLING AND MILLING MACHINE EUROPE STYLE J-ZX45HCL
Quantity: suitable for drilling, milling and countersinking. The high versatility – gear head tilts and rotates – make this machine very popular for repair shops and training workshops.
TECHNISCHE SPEZIFIKATIONEN
Drilling capacity in steel
32 mm
Drilling capacity in cast iron
40 mm
Distance spindle to column
272 mm
Spindle speeds
(12) 50 - 2520 rpm
Spindle taper
MT 4
Spindle stroke
130 mm
Table size
730 x 210 mm
T-slot size
14 mm
Distance spindle to table max.
720 mm
Distance spindle to base plate max.
1220 mm
Travel (x / y)
500 / 180 mm
Height adjustment of mill head
430 mm
Column diameter
115 mm
Base plate
400 x 310 mm
Motor power output S1 100%
0,85 / 1,1 kW
Motor power input S6 40%
1,1 / 1,5 kW
Machine dimension (W x D x H)
1030 x 700 x 2145 mm
Weight approx.
375 kg
FEATURES
- Numerous application possibilities, such as drilling, milling, thread cutting, ...
- Surface treated machine base to mount particularly large workpieces
- 2-speed-motor with 12 speed settings
- Left and right turning for thread cutting
- Gear selector switch makes speed change quick and easy
- Gear head 180° tiltable, 360° rotatable and adjustable in height
- Polished gear wheels, in oil bath, allow smooth running
- Star handle allows spindle adjustment, handwheel allows fine feed
Standard accessories:
- Keyless drill chuck 1 - 16 mm / 18
- Drill chuck arbor MT 4 / B 18
- Morse taper drill sleeve MT 4 / 3
- Milling head 80 mm
- Height adjustable protective cover
- Thread cutting device
- Drawbar M16
- Coolant device
- Longitudinal scale
- Tools
