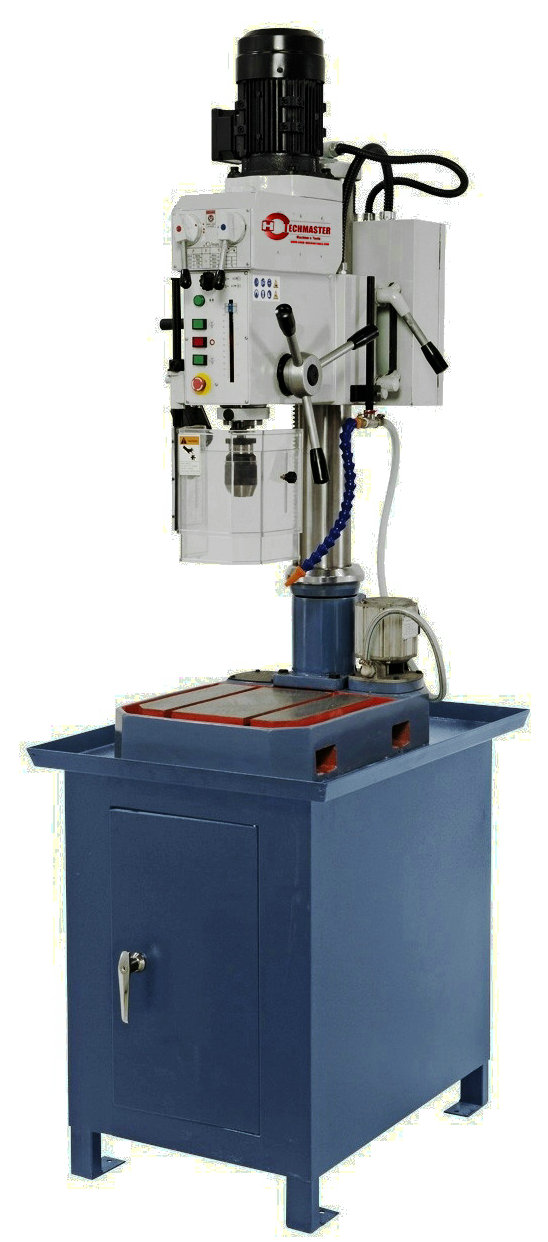

VERTICAL DRILLING MACHINE EUROPE STYLE ZN4030T COOLANT
Quantity: Low cost and high performance make this gearhead table drill with a drilling capacity of 30 mm a popular model for workshops and locksmiths. This model is additional equiped with a coolant device.
TECHNISCHE SPEZIFIKATIONEN
Drilling capacity max.
30 mm
Thread cutting max.
M16
Drill chuck
1 - 13 mm / B 16
Morse taper
MT 3
Spindle speeds
(6) 125 - 2825 rpm
Distance spindle to column
240 mm
Distance spindle to base
655 mm
Spindle stroke
115 mm
Column diameter
100 mm
T-slot size
14 mm
Working surface of base
320 x 315 mm
Motor power output S1 100%
0,75 kW / 400 V
Motor power input S6 40%
1,1 kW / 400 V
Machine dimension (W x D x H)*
450 x 700 x 1440 mm
Weight approx.
170 kg
* without stand
FEATURES
- Lever on gear head allows easy speed adjustment
- Adjustable drill depth stop includes scale
- Absolute concentricity ≤0,02 mm, measured at spindle
- Left and right rotation allows thread cutting
- Grey, cast-iron table includes T-slots and coolant grooves
- Automatic tool release device and LED lamp come standard
- High concentricity - spindle runs on high-quality bearings
- Hardened, polished gear wheels ensure smooth run
- Solid, polished steel column is designed for constant use
Standard accessories:
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 3 / B 16
- Morse taper drill sleeve MT 3 / 2, MT 3 / 1
- Automatic tool release device
- Coolant device
- LED working light
- Height adjustable protective cover
