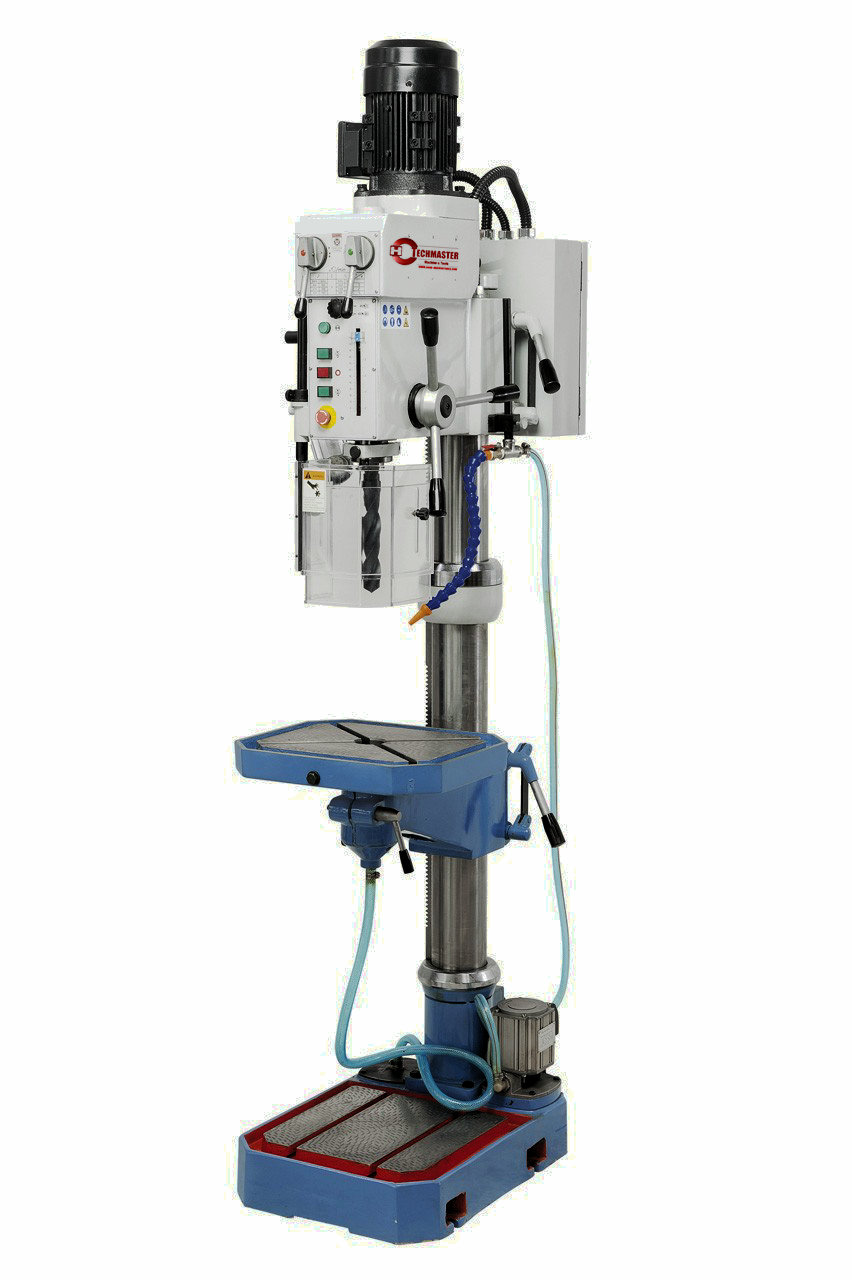

VERTICAL DRILLING MACHINE EUROPE STYLE ZN5030 WITH COOLANT
Quantity: powerful gearhead column drilling machine features a solid, torsion-free construction. It is mainly used in repair shops, mechanical workshops and training.Drilling capacity max.
30 mm
Thread cutting max.
M16
Drill chuck
1 - 13 mm / B 16
Morse taper
MT 3
Spindle speeds
(6) 125 - 2825 rpm
Distance spindle to column
240 mm
Distance spindle to table max.
655 mm
Distance spindle to base
1130 mm
Spindle stroke
115 mm
Column diameter
100 mm
Table size / T-slot size
405 x 335 mm / 14 mm
Working surface of base
320 x 315 mm
Motor power output S1 100%
0,75 kW / 400 V
Motor power input S6 40%
1,1 kW / 400 V
Machine dimension (W x D x H)
500 x 700 x 1910 mm
Weight approx.
235 kg
Lever on gear head allows easy speed adjustment- Adjustable drill depth stop includes scale
- Absolute concentricity ≤0,02 mm, measured at spindle
- Left and right rotation allows thread cutting
- Grey, cast-iron table includes T-slots and coolant grooves
- Automatic tool release device and LED working light come standard
- Polished base plate featues T-slots features T-slots for mounting of oversized workpieces
- High concentricity - spindle runs on high-quality bearings
- Hardened, polished gear wheels ensure smooth run
- Solid, polished steel column designed for constant use
Standard accessories:
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 3 / B 16
- Morse taper drill sleeve MT 3 / 2, MT 3 / 1
- Automatic tool release device
- Coolant device
- LED working light
- Height adjustable protective cover
-
