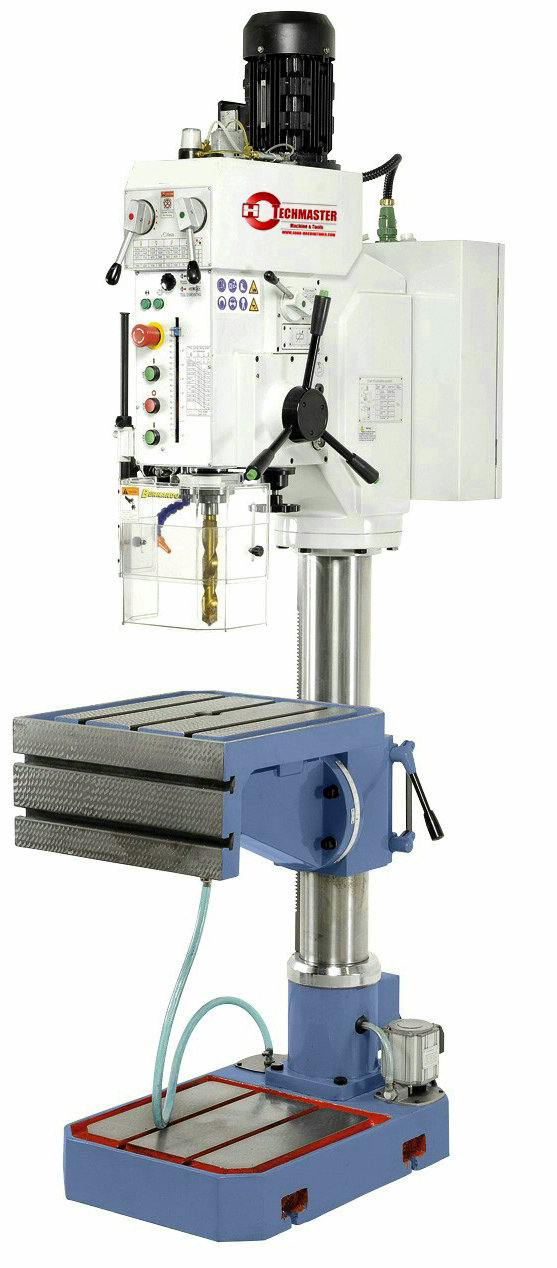

VERTICAL DRILLING MACHINE EUROPE STYLE ZN5040A-TL WORKTABLE
Quantity: gear head drilling machine is solidly constructed and powerful, making this model ideal for repair shops as well as industrial production. Increased range of applications by the serially angle table featuring additional clamping possibilities.
TECHNISCHE SPEZIFIKATIONEN
Drilling capacity in steel
40 mm
Drilling capacity in cast iron
45 mm
Thread cutting max.
M24
Drill chuck
1 - 13 mm / B 16
Morse taper
MT 4
Spindle speeds
(12) 75 - 2020 rpm
Feed range
0,12 / 0,24 / 0,40 mm/rev.
Distance spindle to column
340 mm
Table tiltable
-45° to +45°
Distance spindle to table max.
580 mm
Distance spindle to base
1200 mm
Spindle stroke
195 mm
Column diameter
140 mm
Table size / T-slot size
500 x 540 mm / 18 mm
Vertical clamping area / T-slot size
500 x 240 mm / 18 mm
Working surface of base
400 x 410 mm
Motor power output S1 100%
1,5 kW / 400 V
Motor power input S6 40%
2,2 kW / 400 V
Machine dimension (W x D x H)
570 x 850 x 2230 mm
Weight approx.
490 kg
FEATURES
- Hardened gears with a smooth finish ensure a smooth run
- High concentricity ≤ 0,02 mm, measured at spindle
- Wide speed range 75 – 2020 rpm (12 steps) allows efficient work
- Coolant device and work lamp come standard
- Right and left spindle rotation allows thread-cutting
- Includes 3 automatic spindle feeds, adjustable electromagnetically
- Worktable swivels horizontally around column, 45° tiltable left and right
- High-quality base with T-slots allows clamping of overly long workpieces
Standard accessories:
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Morse taper drill sleeve MT 4/3, MT 4/2, MT 3/1
- Automatic tool release device
- Thread cutting device
- Electromagnetic spindle feed
- Initial filling with Shell Tellus 46
- LED working lamp
- Coolant device
- Height adjustable protective cover
