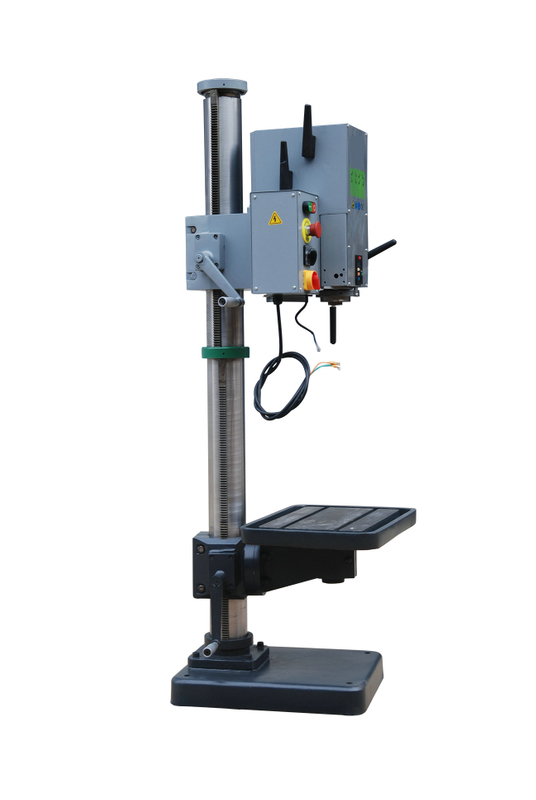

VERTICAL DRILLING MACHINE Z5025A
Quantity: -
Z5025A
FEATURES:
Adjustable depth stop
2 speed forward & reverse
Auto drill ejector
Conveniently positioned emergency stop switch
Rack & pinion adjustable table & spindle head
Slotted table for workpiecs holddown
Column diameter is 100mm
PARAMETERS OF DRILL: GEARED HEAD GHD-T25A 3PH
DRILLING CAPACITY 25MM TABLE SIZE 500 X 350MM SPEEDS 8 Steps RANGE 105-2900 SPINDLE TAPER MT3 QUILL DIAMETER 60MM QUILL STROKE 115MM SWING 250MM COLUMN DIAMETER 100MM MOTOR 0.9Kw 3Ph WEIGHT NETT/GROSS 190kg/ 220 VOLUME 0.6759cm/ 0.6546 PACKING SIZE L X W X H L 1,670mm X W 560 X H 700 FEATURES:
Adjustable depth stop
2 speed forward & reverse
Auto drill ejector
Conveniently positioned emergency stop switch
Rack & pinion adjustable table & spindle head
Slotted table for workpiecs holddown
Column diameter is 100mm
PARAMETERS OF DRILL: GEARED HEAD GHD-T25A 3PH
DRILLING CAPACITY 25MM TABLE SIZE 500 X 350MM SPEEDS 8 Steps RANGE 105-2900 SPINDLE TAPER MT3 QUILL DIAMETER 60MM QUILL STROKE 115MM SWING 250MM COLUMN DIAMETER 100MM MOTOR 0.9Kw 3Ph WEIGHT NETT/GROSS 190kg/ 220 VOLUME 0.6759cm/ 0.6546 PACKING SIZE L X W X H L 1,670mm X W 560 X H 700
