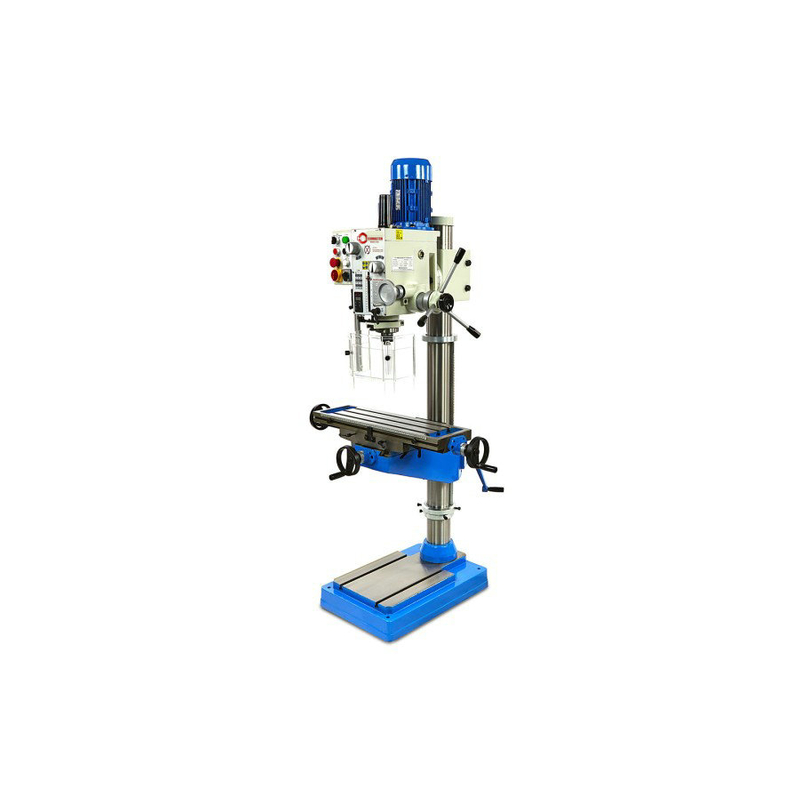

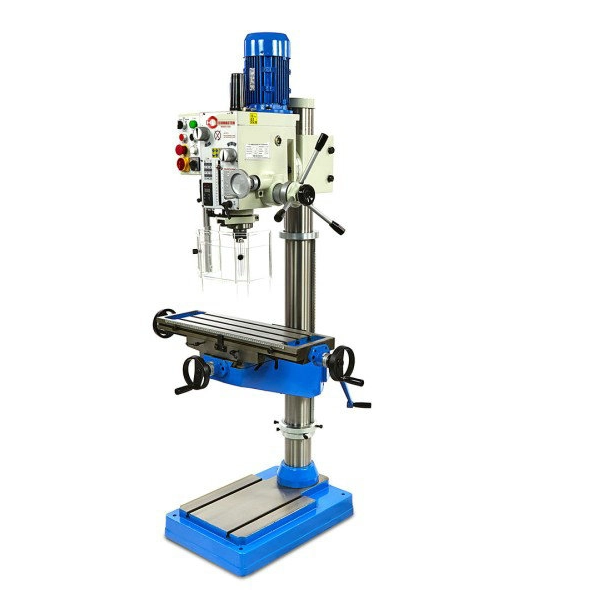

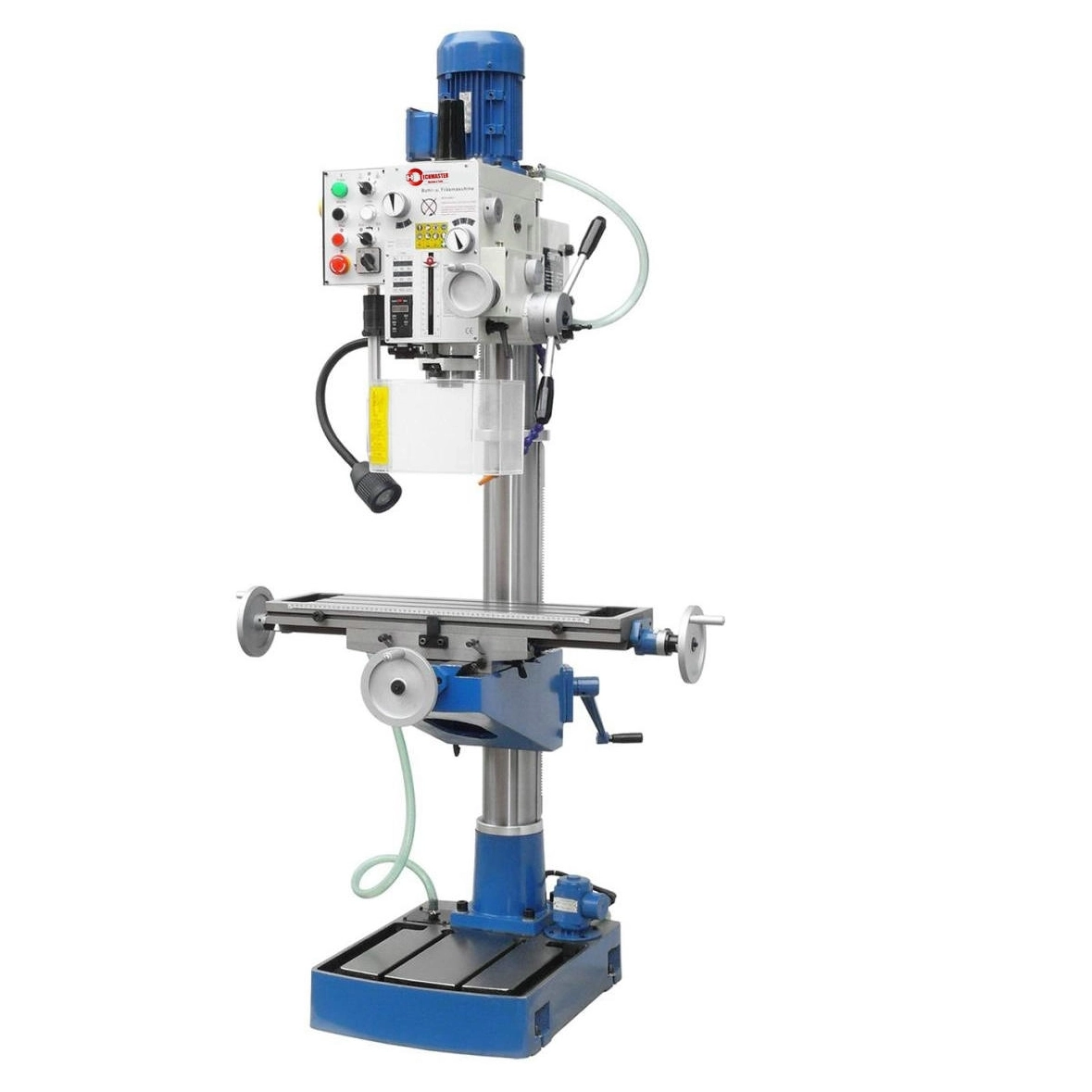

VERTICAL GEARED HEARD ZX40HC SUPER
Quantity: -
ZX40HC SUPER
• Heavy duty gear drive column drilling machine
• Lubrication gear head with quite operation
• Adjustable drill depth stop with scale
• Powerful 2-speed motor
• Equipped with safety spindle guard, work lamp, coolant system
• Depth ruler easy to read at front panel
• Working table rotates 360° and swivels ±45°
• Mechanical spindle sleeve feed, tapping device
• Rigid construction of base with coolant tank
Large speed range.User-friendly membrane keyboard.Heavy, solid cast execution.Large, height-adjustable protective screen with safety switch for the utmost protection of the user.Drilling depth stop adjustable with millimeter scale.Forward / reverse operation.Tapping Function.Machine light integrated in the drill head.Integrated expeller for easy tool change.Precision machined drilling table with diagonal T-slots with all-round cooling water channel.Thick-walled cast-iron column for high power absorption and stability.Massive base plate, large dimensions and strongly ribbed on the back.
Max. drilling capacity 30mm (MT3) 40mm (MT4) Spindle taper MT3, MT4, R8 or ISO30 Spindle stroke 120 mm Step of spindle speeds 12 ( for 2 speed motor) Range of spindle speeds 75 ~ 3200 rpm Diameter of column Φ115 mm Distance from spindle to column 272 mm Distance from spindle nose to table 610 mm Distance from spindle end to base 1180 mm Table size 540 x 470 mm 600 x 190 mm ( STANDARD ) Table travel - 370 x 190 mm T-slot 3 x 12mm Base size 650 x 450 mm Main Motor 0.85 / 1.1 kw Packing size 740x720x1830mm 820x720x1830mm Net weight 320 kg 340 kg
