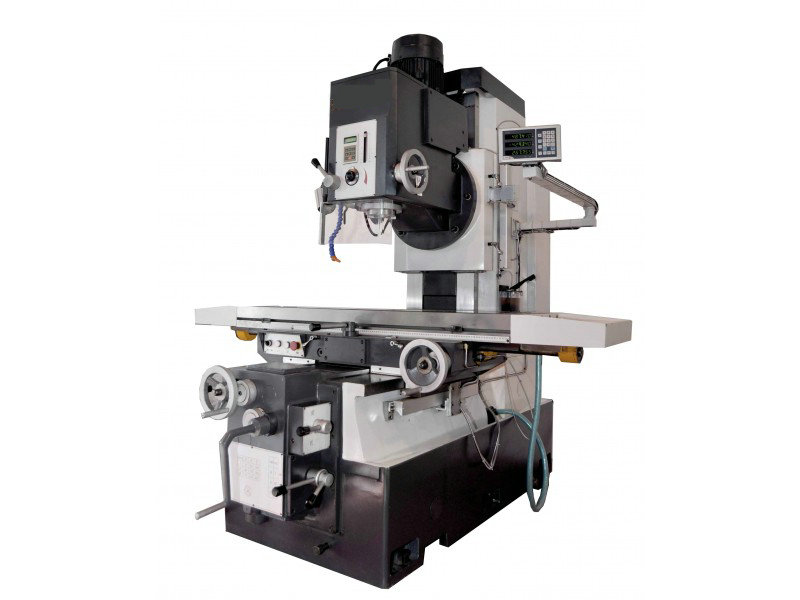

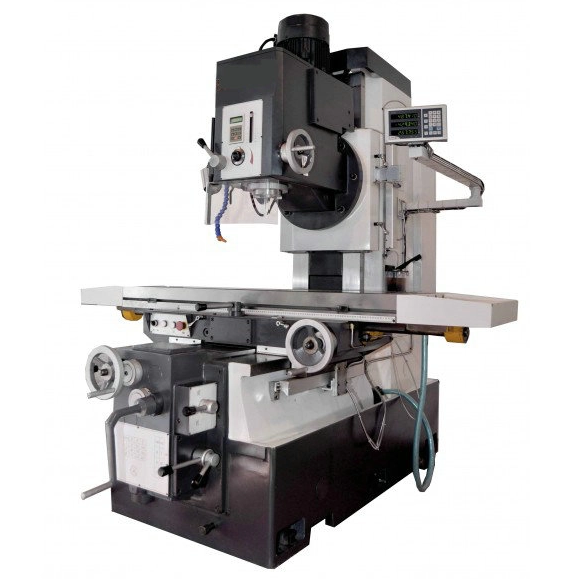

VERTICAL MILLING MACHINE FV1400
| Ram headstock speed range (r.p.m) | 18-1800 |
| Taper of ram headstock | ISO50 |
| Ram travel (mm) | 356 |
| Quill feed (mm/min) | 0.04/0,08/0,15 |
| Quill diameter (mm) | 180 |
| Quill travel (mm) | 105 |
| Ram movement | MANUAL |
| Distance from spindle to guideways top (mm) | 520 |
| Vertical feed (mm/min) | 1670 |
| Worktable surface (mm) | 1400x400 |
| T-slot (mm) | 3x18 |
| Max. weight over table (Kg) | 500 |
| Longitudinal travel (mm) | 800 |
| Cross travel (mm) | 400 |
| Ram travel (mm) | 500 |
| Longitudinal feed (mm/min) | (9) 18-627 |
| Distance between the vertical spindle to the table (mm) | 150-650 |
| Number of ram headstock speeds | variador |
| Dimensions (mm) (length - width - high) | 2290x2040x2120 |
| Net weight (Kg) | 3660 |
| Ram headstock motor (Kw) | 7,5 |
| Cross feed (mm/min) | (9) 18-627 |
| Ram headstock speed range (r.p.m) | 18-1800 |
| Taper of ram headstock | ISO50 |
| Ram travel (mm) | 356 |
| Quill feed (mm/min) | 0.04/0,08/0,15 |
| Quill diameter (mm) | 180 |
| Quill travel (mm) | 105 |
| Ram movement | MANUAL |
| Distance from spindle to guideways top (mm) | 520 |
| Vertical feed (mm/min) | 1670 |
| Worktable surface (mm) | 1400x400 |
| T-slot (mm) | 3x18 |
| Max. weight over table (Kg) | 500 |
| Longitudinal travel (mm) | 800 |
| Cross travel (mm) | 400 |
| Ram travel (mm) | 500 |
| Longitudinal feed (mm/min) | (9) 18-627 |
| Distance between the vertical spindle to the table (mm) | 150-650 |
| Number of ram headstock speeds | variador |
| Dimensions (mm) (length - width - high) | 2290x2040x2120 |
| Net weight (Kg) | 3660 |
| Ram headstock motor (Kw) | 7,5 |
| Cross feed (mm/min) | (9) 18-627 |
