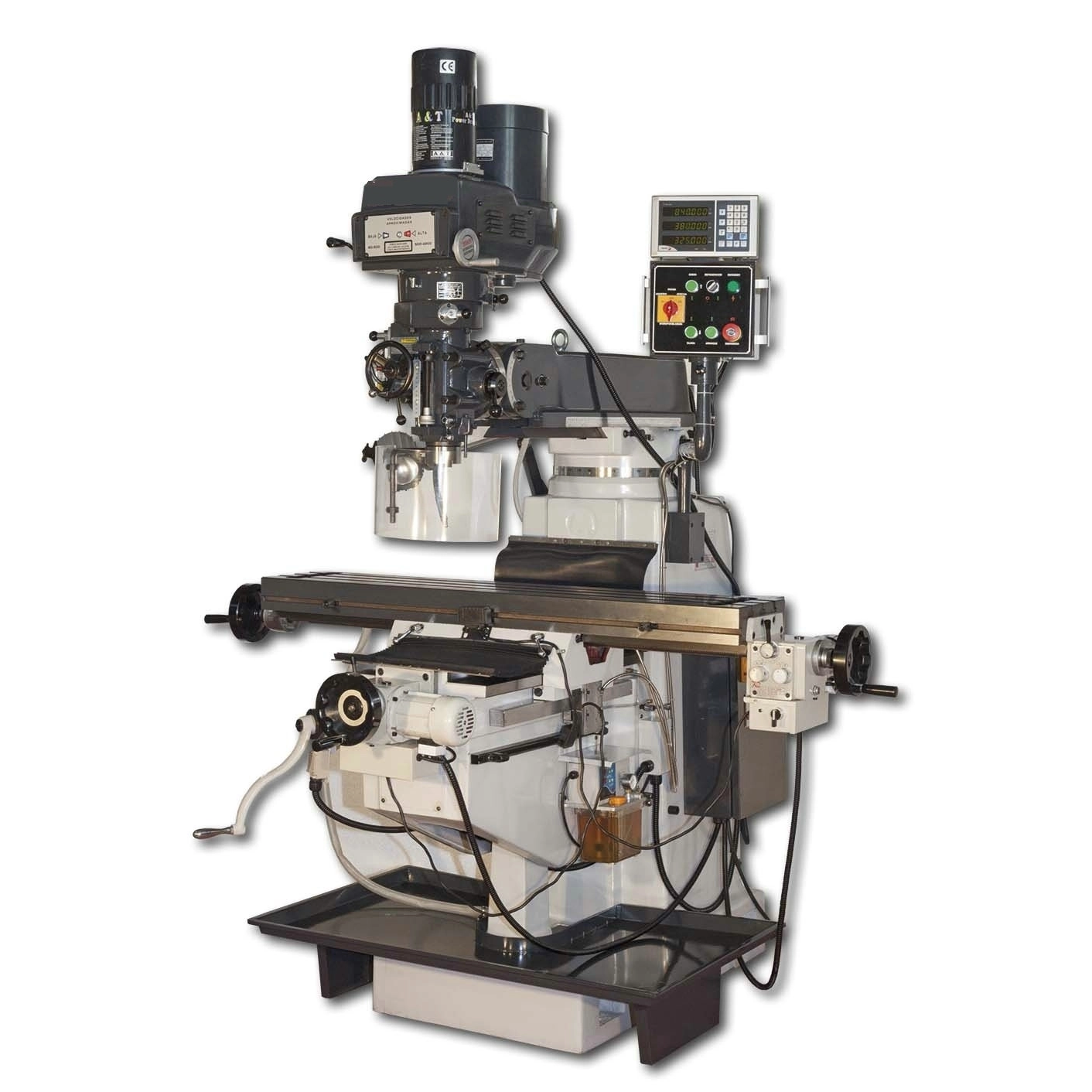

VERTICAL TURRET MILLING MACHINE FTV3
Ram headstock speed range (r.p.m) | 60-4200 |
Longitudinal and cross rapid movement (mm/min) | 700 |
Taper of ram headstock | ISO40 |
Ram travel (mm) | 458 |
Quill feed (mm/min) | 0.04/0,08/0,15 |
Quill diameter (mm) | 86 |
Quill travel (mm) | 120 |
Distance spindle/ machine mirror | 172-756 |
Ram movement | MANUAL |
Rapid vertical movement (mm/min) | 290 |
Worktable surface (mm) | 1370x254 |
T-slot (mm) | 3x16 |
Max. weight over table (Kg) | 340 |
Longitudinal travel (mm) | 914 |
Cross travel (mm) | 400 |
Ram travel (mm) | 450 |
Longitudinal feed (mm/min) | 33-700 |
Distance between the vertical spindle to the table (mm) | 0-458 |
Number of ram headstock speeds | variador |
Dimensions (mm) (length - width - high) | 2000x1750x2400 |
Net weight (Kg) | 1450 |
Ram headstock motor (Kw) | 2,3 |
