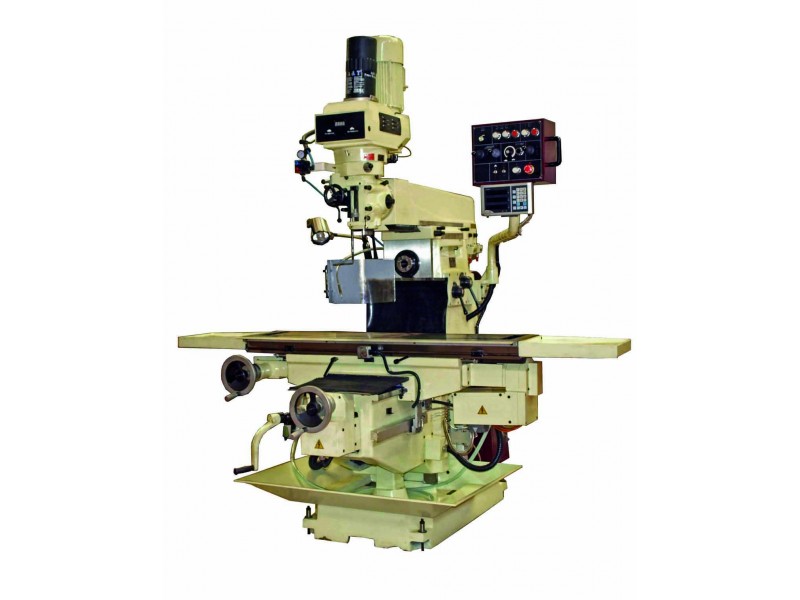

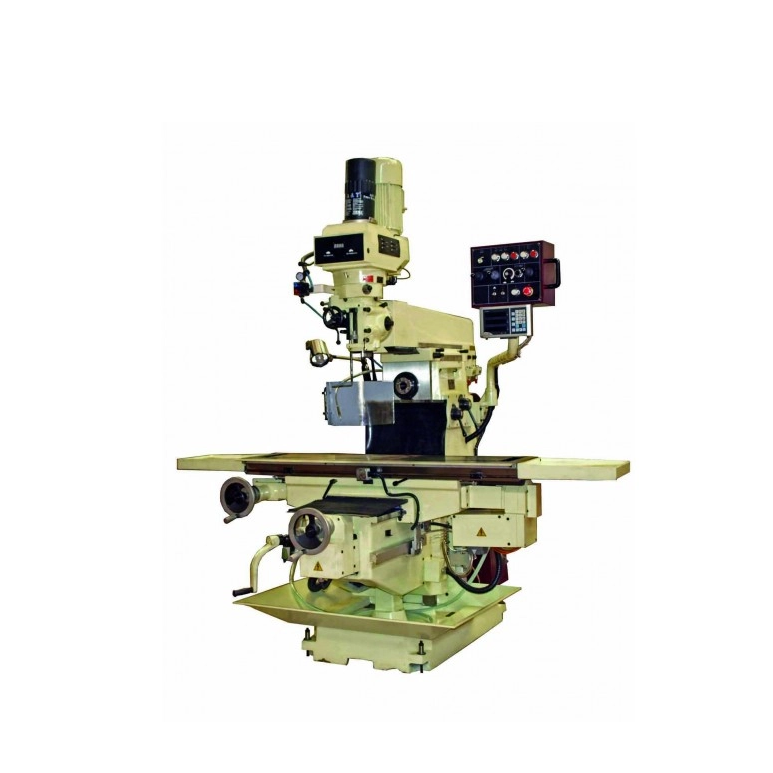

VERTICAL TURRET MILLING MACHINE FTVC 6
Range of speeds (r.p.m) | 72-1145 |
Ram movement | MANUAL |
Longitudinal travel (mm) | 820 |
Distance between the vertical spindle to the table (mm) | 120-480 |
Cross feed (mm/min) | 0-1200 |
Taper of ram headstock | ISO40 |
Quill travel (mm) | 150 |
Max. weight over table (Kg) | 400 |
Ram power (Kw) | 3,75 |
Ram headstock speed range (r.p.m) | 50-3,200 |
Boring taper | ISO40 |
Worktable surface (mm) | 1520x305 |
Ram travel (mm) | 650 |
Cross travel (mm) | 410 |
Number of ram headstock speeds | variador |
Vertical feed (mm/min) | 0-400 |
Distance spindle/ machine mirror | 680 |
Longitudinal feed (mm/min) | 0-1200 |
Longitudinal and cross rapid movement (mm/min) | 1200 |
Quill diameter (mm) | 105 |
T-slot (mm) | 3x16 |
Power ram headstock (Kw) | 3,75 |
Ram travel (mm) | 360 |
Number of boring speeds | 9 |
Rapid vertical movement (mm/min) | 400 |
