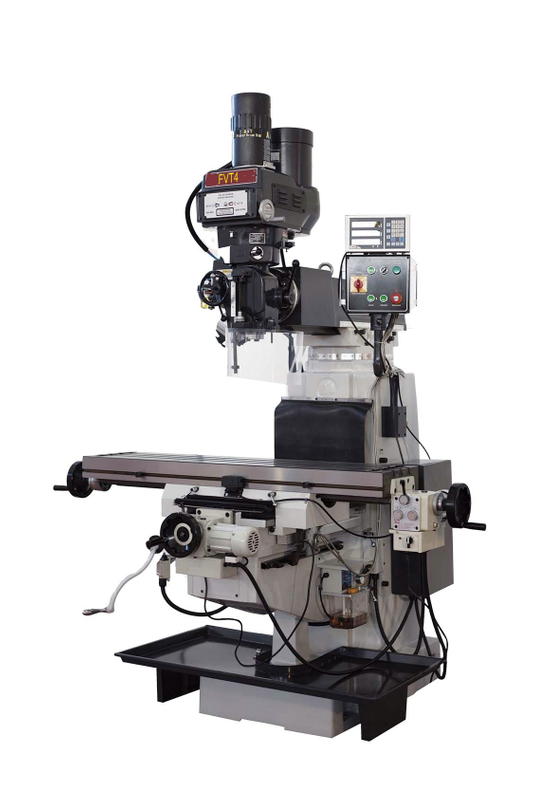

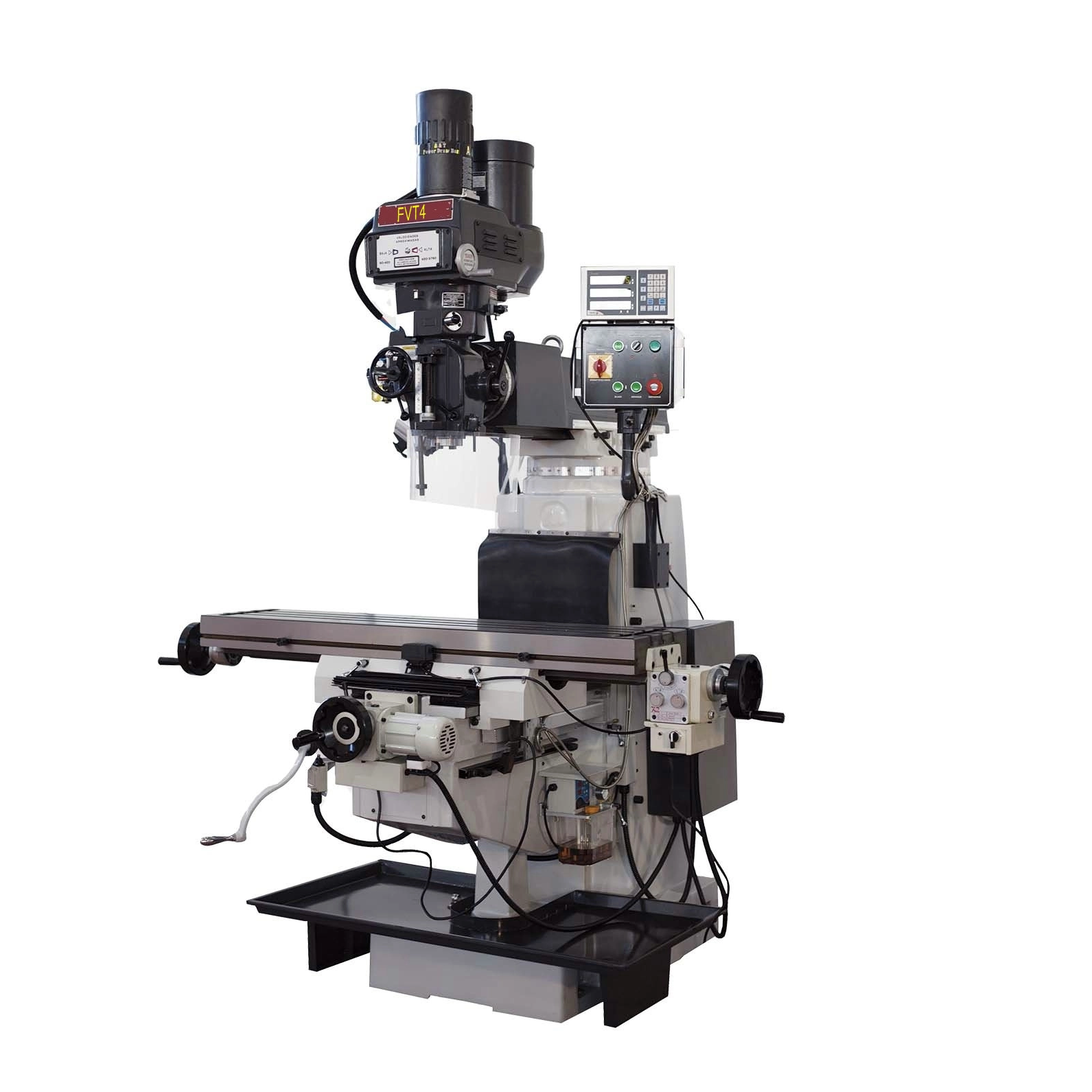

VERTICAL TURRET MILLING MACHINE HELLER FTV4

Quantity:
  • VERTICAL TURRET MILLING MACHINE FTV4





VERTICAL TURRET MILLING MACHINE  FTV4



Ram headstock speed range (r.p.m) 35-1600
Taper of ram headstock ISO40
Ram travel (mm) 700
Distance headstock/ table (mm) 130-460
Ram movement MANUAL
Work feed ram headstock 500
Distance min./max. headstock to mirror (mm) 0-600
Rapid vertical movement (mm/min) 600
Worktable surface (mm) 1250x260
T-slot (mm) 3x14
Max. weight over table (Kg) 200
Longitudinal travel (mm) 800
Cross travel (mm) 290
Ram travel (mm) 370
Table feed automático
Longitudinal feed (mm/min) (8() 15-370
Number of ram headstock speeds 11
Dimensions (mm) (length - width - high) 1730x1700x1750
Net weight (Kg) 1800
Ram headstock motor (Kw) 2,2
Cross feed (mm/min) (8) 15-370
