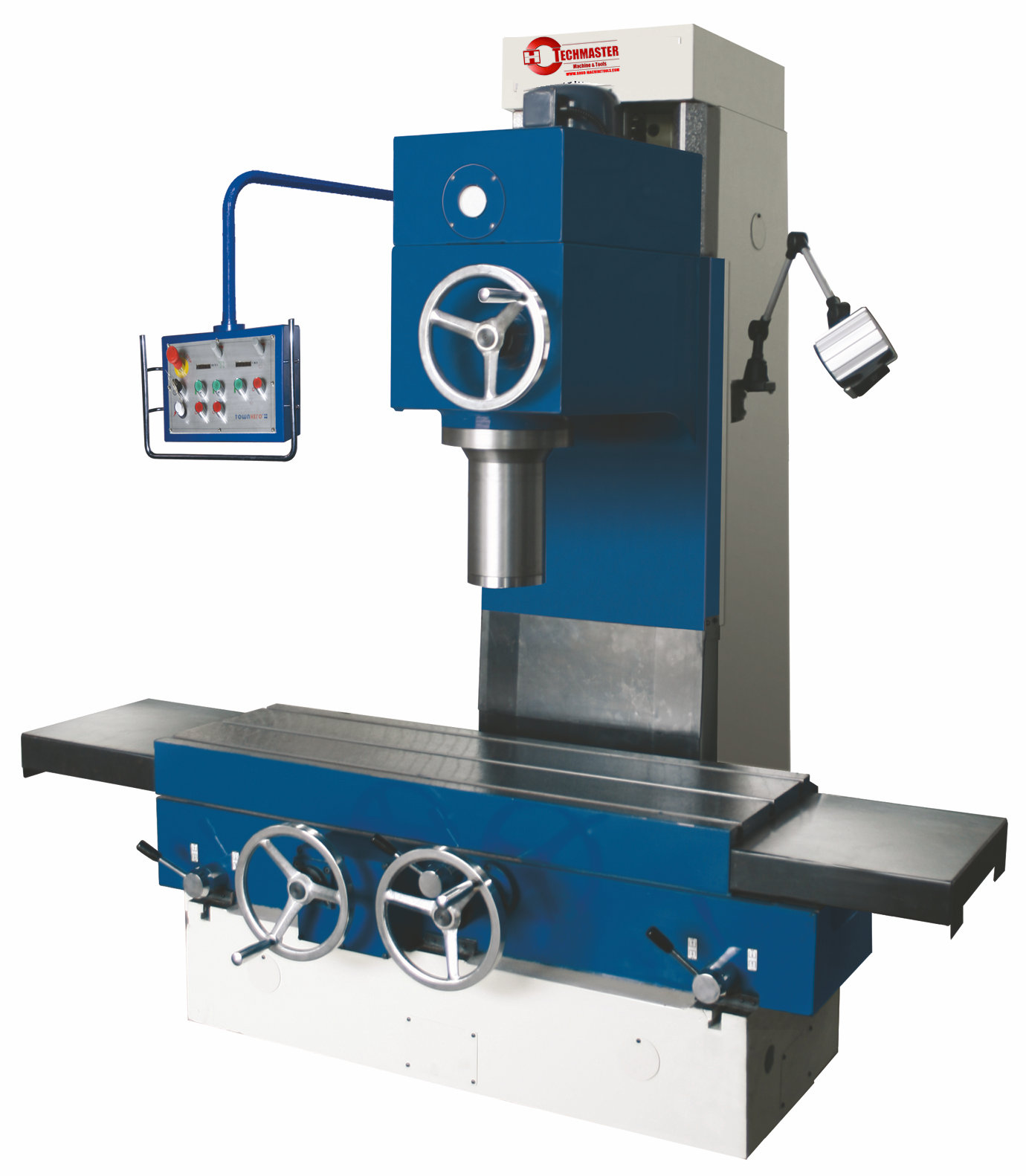

VERTICVAL FINE BORING & GRINDING -MILLING MACHINE
Quantity: -
T170S
●Both rotation and teed of the spindle is realized by frequent and stepless saeed-adjutment , and there is character display on the digital readout. The range of speed-adjustment is wide; it is very convenient to operate. The spindle feed and rapid movement may be converted rapidly by regulation resistance.
●The hand wheel controlling the vertical movement of spindle is designed on the carriage to make the operation convenient and easy.
●The spindle is designed with fast centering device to improve the working efficiency.
●The machine is designed with tool measuring device for the diameter of boring hole to make the
●operation convenient and improve the processing operation
●The conversation between operator and machine can be realized by the digital readout on the machine, this makes the operation very convenient and easy
●Movement of each part of the machine can be controlled by PLC the machine realizes the automatic processing of boring hole and spindle returning as well as the boring parameter input.
★Parameter
ITEMS
Max. boring diameter Mm φ170 Max. boring depth Mm 400 Max. drilling& reaming diameter Mm φ30 Spindle speed r/min 80-1000 Feeding of the spindle Mm/min 14-810 Rapid moving speed of the spindle Mm/mim 810 Spindle travel Mm 500 Distance between spindle end face and table Mm 0-500 Distance between spindle axis and carriage vertical plane Mm 330 Max. longitudinal travel of the working table Mm 1100 Max. cross travel of the working table Mm 80 Worktable size(W*L) Mm 400*1250 Quantity of “T” slot Qua. 3 Dimensional precision of boring hole
H7 Machining precision Roundness Mm 0.005 Cylindricity Mm 0.01/300 Boring surface roughness Um Ra2.5 Main motor power Kw 3 Overall dimensions (L*W*H) Cm 210*143*201 Packing dimensions(L*W*H) Cm 182*177*219 N.W./G.W kg 2500/2800
